Removal and Replacement Procedures
Maintenance and Service Guide 5–39
8. Use the Media Bay connector 1 to lift the right side of the
system board 2 until it rests at a 45-degree angle
(Figure 5-25).
9. Slide the system board out of the base enclosure at a
45-degree angle 3.

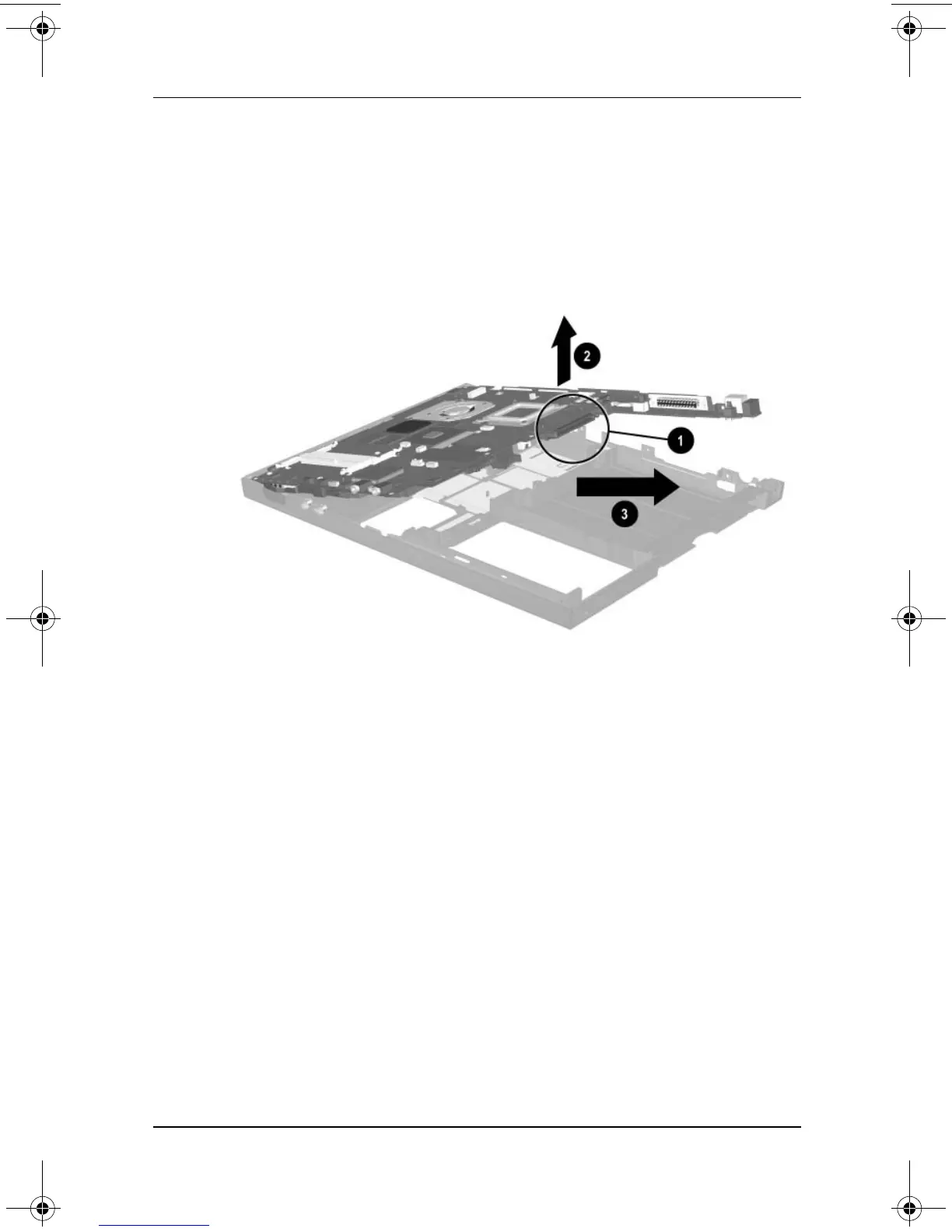

Figure 5-25. Removing the System Board
