When removing the system board, do not remove the following
screws (Figure 5-24):
■ Four screws 1 that secure the processor bracket to the
system board
■ Two screws 2 that secure the heat sink to the
system board
■ Two screws 3 that secure the hard drive connector the
system board
■ Four screws 4 that secure the PC Card assembly to
the system board

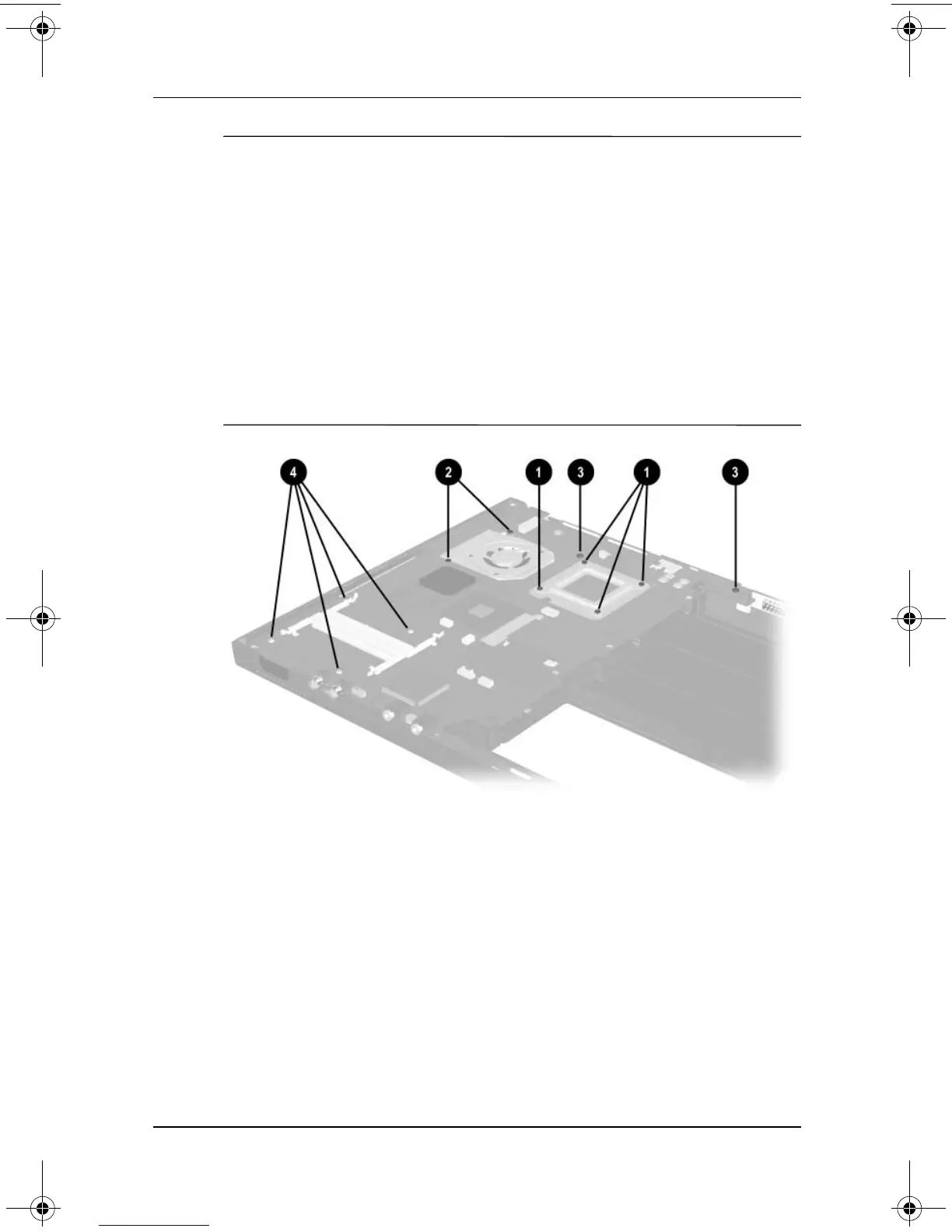

Figure 5-24. Do Not Remove These Screws
