Removal and Replacement Procedures
Maintenance and Service Guide 5–37
✎
Steps 6 and 7 apply only to Evo Notebook N620c, N610c, and
N610v models.
6. Remove the two TM2.5 × 5.0 screws 1 that secure the
system board to the base enclosure through the rear panel
(Figure 5-23).
7. Remove the three TM2.5 × 5.0 screws 2 that secure the top
cover to the base enclosure.

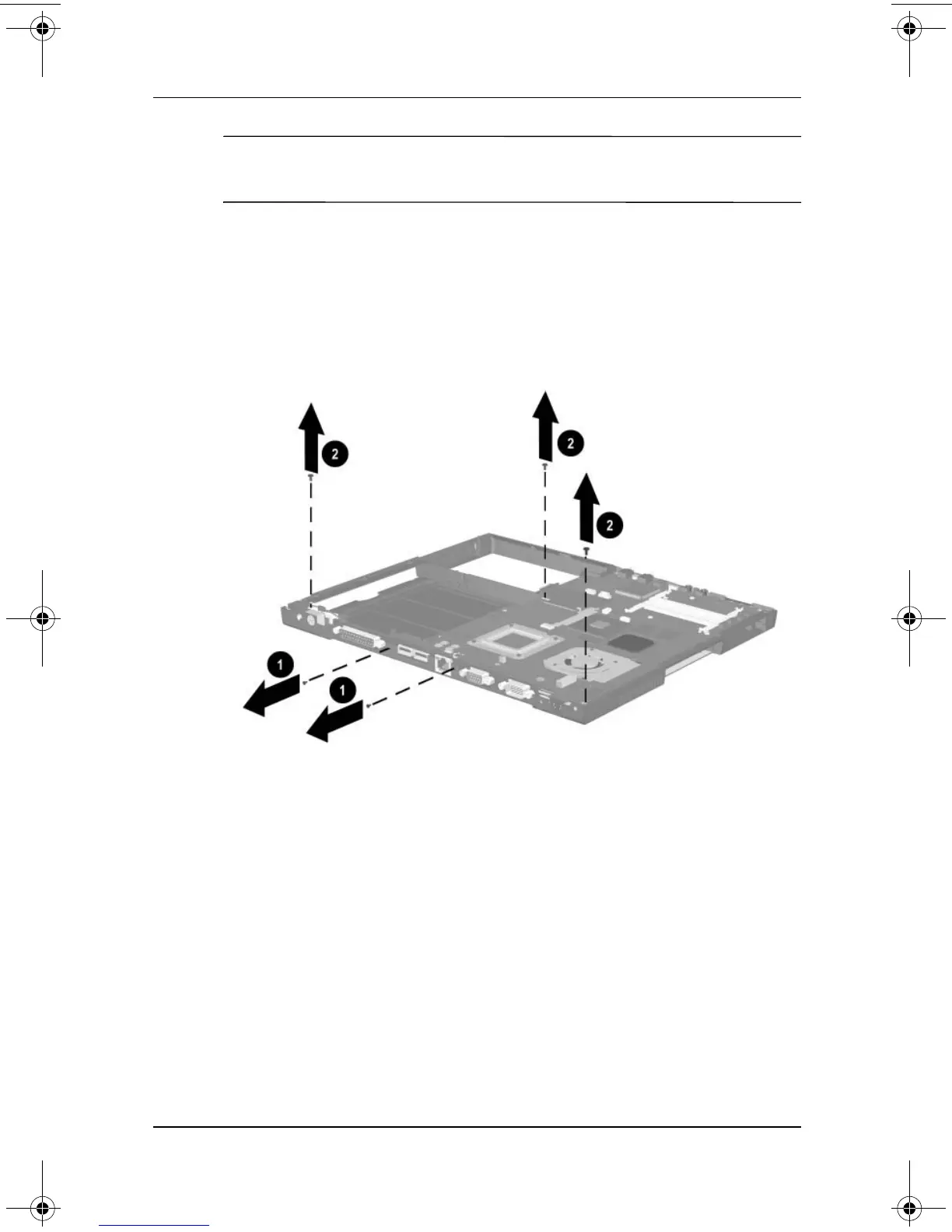

Figure 5-23. Removing the System Board Screws on
Evo Notebook N620c, N610c, and N610v Models
