Removal and Replacement Procedures
Maintenance and Service Guide 5–49
7. Lift the system board straight up 1. The heat sink 2 will
remain resting on the work surface (Figure 5-33).

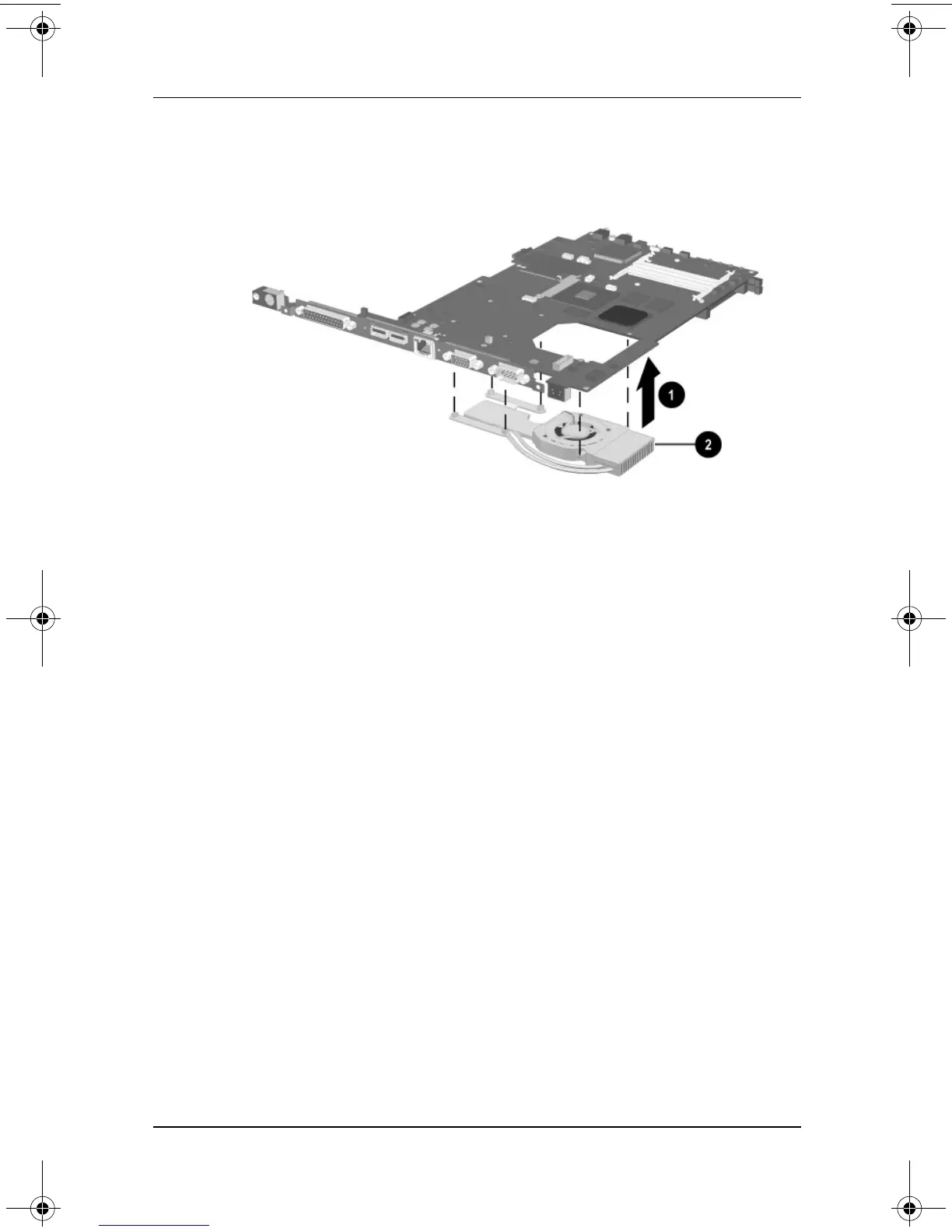

Figure 5-33. Removing the Heat Sink
Reverse the preceding procedure to replace the heat sink.
