5–48 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the system board top side up with the rear panel
facing you.
5. Remove the six PM2.0 × 4.0 screws 1 that secure the
processor mounting bracket and heat sink to the system board
(Figure 5-32).
6. Remove the processor mounting bracket 2.

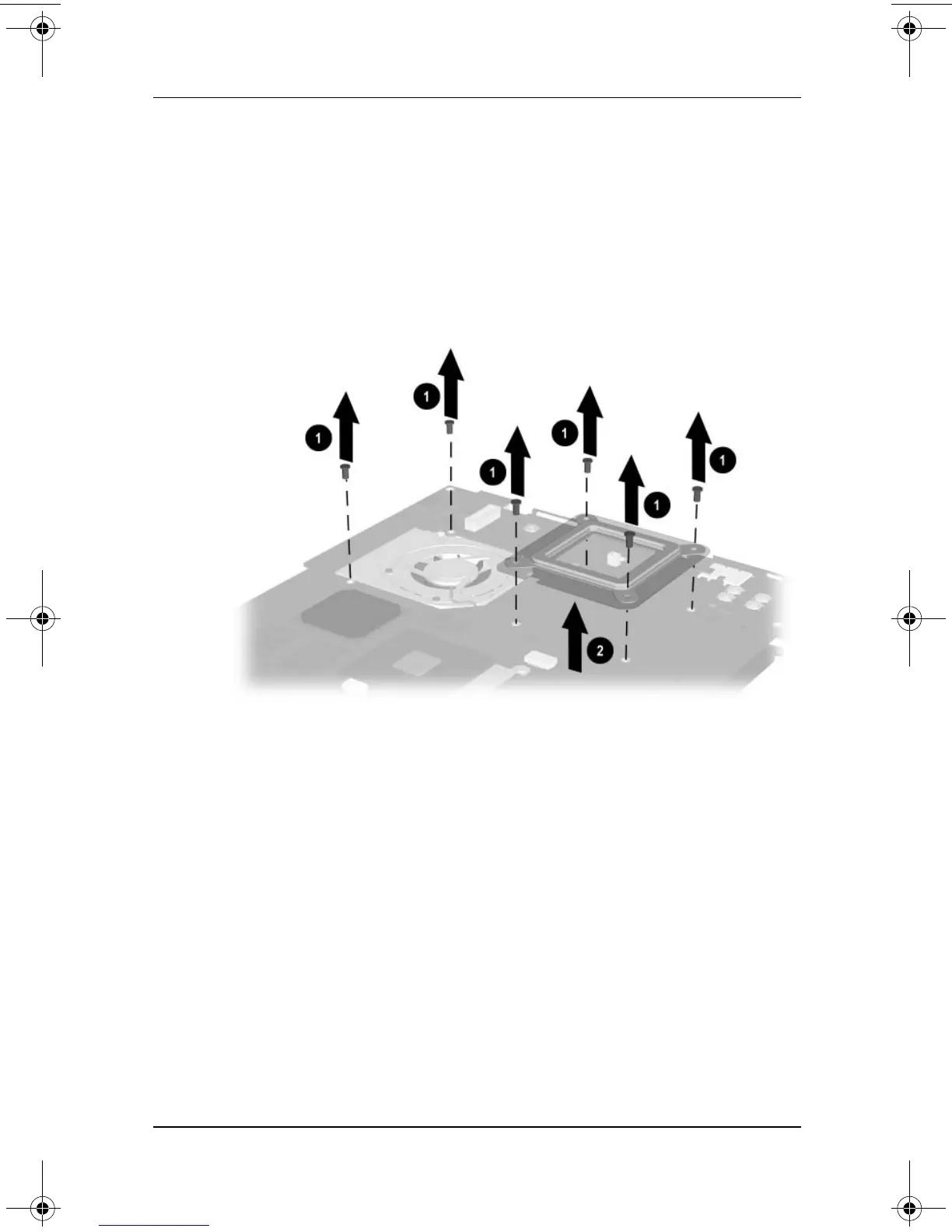

Figure 5-32. Removing the Heat Sink Screws
