5ā56
Maintenance and Ser
vice Guide
Remov
al and Replacement Procedures
ā
When installing the modem cable, route the cable along the path
indicated in Figure 5-37.

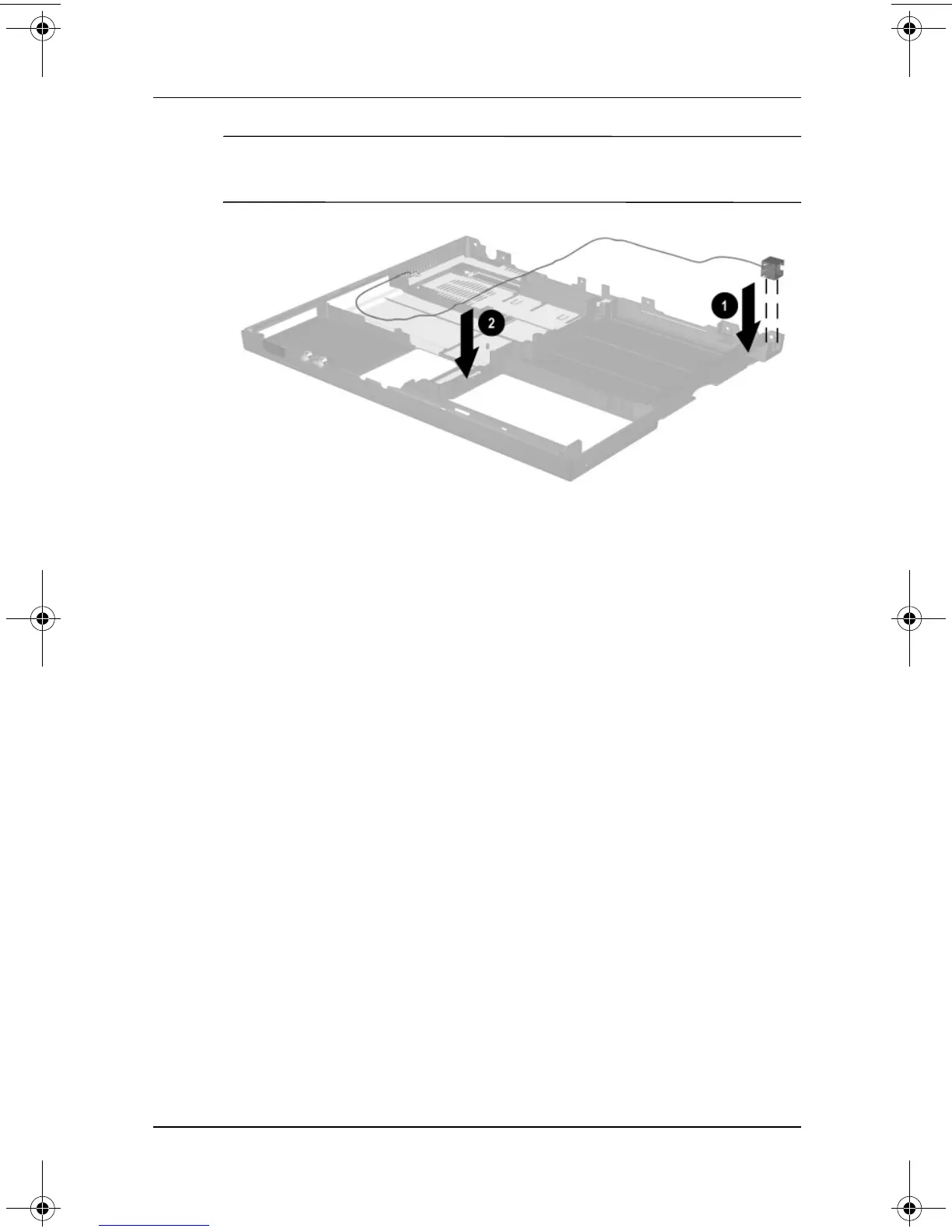

Figure 5-37. Routing the Modem Cable in the Base Enc
losure
279362-003.book Page 56
Monday, May 19, 2003 1:28 PM
165
167
Table of Contents
Table of Contents
3
Models
7
Features
34
Clearing a Password
36
Power Management
36
Notebook External Components
37
Design Overview
50
Troubleshooting
51
Computer Setup and Diagnostics Utilities
51
Using Computer Setup
52
Selecting from the File Menu
53
Selecting from the Security Menu
54
Selecting from the Advanced Menu
55
Using Compaq Diagnostics
57
Obtaining, Saving, or Printing Configuration Information
57
Obtaining, Saving, or Printing Diagnostic
58
Test Information
58
2.3 Troubleshooting Flowcharts
60
Default Chapter
60
Troubleshooting Flowcharts
60
No Power, Part 1
61
No Power, Part 1
63
No Video, Part 1
67
Nonfunctioning Docking Station
68
No os Loading from Diskette Drive
69
No os Loading from Hard Drive, Part
69
No os Loading from CD- or DVD-ROM Drive
74
No Audio, Part 2
75
Nonfunctioning Device
77
Illustrated Parts Catalog
81
Serial Number Location
81
Notebook System Major Components
82
Miscellaneous Plastics Kit Components
96
Mass Storage Devices
98
Miscellaneous
102
Removal and Replacement Preliminaries
104
Tools Required
104
Service Considerations
105
Plastic Parts
105
Cables and Connectors
105
Preventing Damage to Removable Drives
106
Preventing Electrostatic Damage
107
Packaging and Transporting Precautions
107
Workstation Precautions
108
Grounding Equipment and Methods
109
Removal and Replacement Procedures
111
Serial Number
112
Disassembly Sequence Chart
112
Preparing the Notebook for Disassembly
114
Notebook Feet
121
Mini PCI Communications Board
122
Disk Cell RTC Battery
125
Keyboard
127
Memory Expansion
132
Touchpad
135
Switch Cover
137
Display
139
Top Cover
142
System Board
145
Fan
152
Heat Sink
156
Processor
160
DC-DC Converter Board
162
Modem Cable
164
Specifications
167
Connector Pin Assignments
183
B Power Cord Set Requirements
193
3-Conductor Power Cord Set
193
General Requirements
193
Country-Specific Requirements
194
Screw Listing
196
