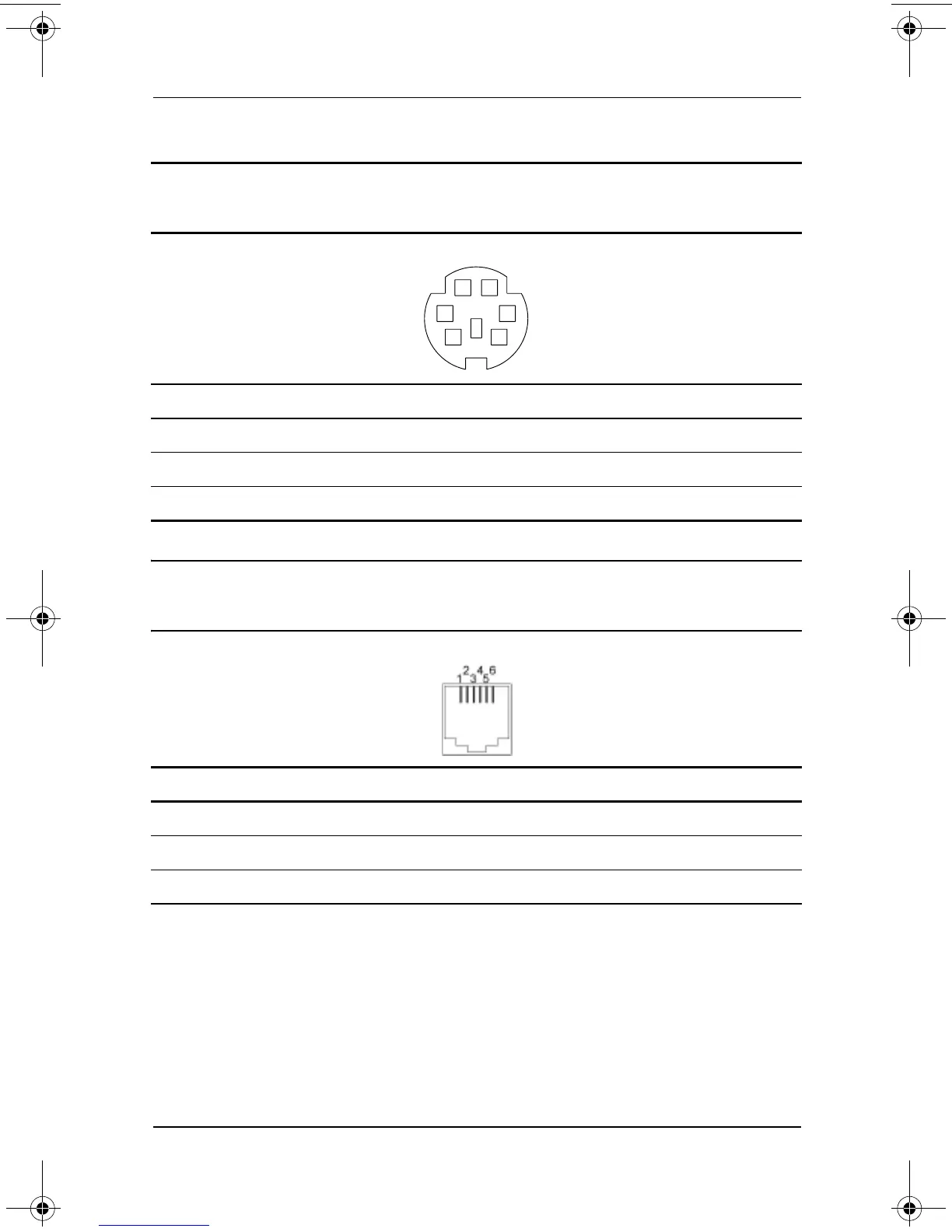

A–2 Maintenance and Service Guide
Connector Pin Assignments
Table A-3
Keyboard/Mouse
Pin Signal Pin Signal
1 Keyboard/mouse data1 4 +5 VDC
2 Keyboard/mouse data2 5 Keyboard/mouse clock1
3 Ground 6 Keyboard/mouse clock2
Table A-4
RJ-11 Modem
Pin Signal Pin Signal
1Unused 4Unused
2 Tip 5 Unused
3Ring 6Unused
KEY
65
43
2
1
