Compaq Evo N600c User Manual

Connector Pin Assignments
Maintenance and Service Guide A–3

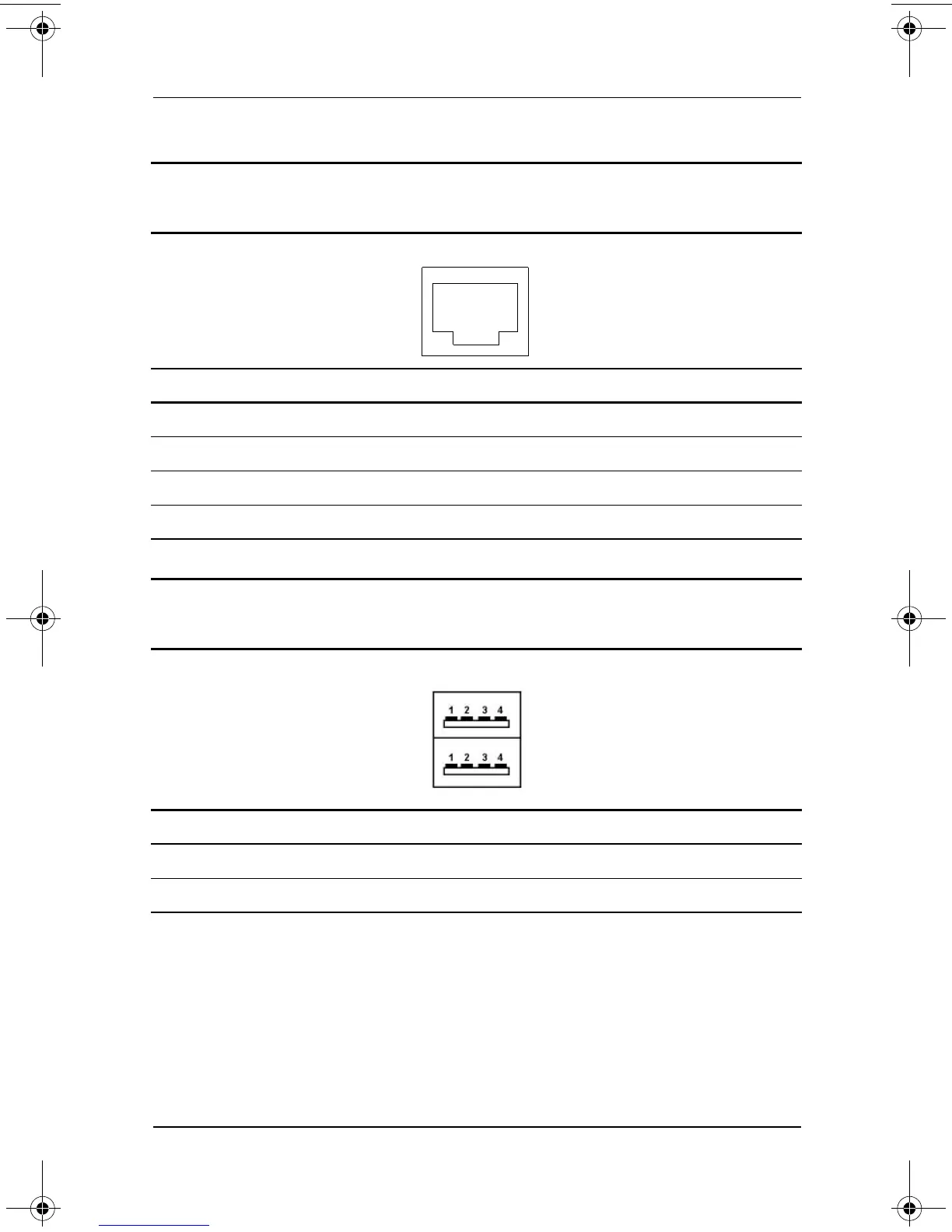

Table A-5
RJ-45 Network Interface
Pin Signal Pin Signal
1 Transmit + 5 Unused
2 Transmit - 6 Receive -
3 Receive + 7 Unused
4Unused 8Unused
Table A-6
Universal Serial Bus
Pin Signal Pin Signal
1 +5 VDC 3 Data +
2 Data - 4 Ground
6
5
4
3
2
1
7
8
279362-003.book Page 3 Monday, May 19, 2003 1:28 PM

Compaq Evo N600c Specifications

General

Brand	Compaq
Model	Evo N600c
Category	Laptop
Language	English
