Connector Pin Assignments
Maintenance and Service Guide A–5

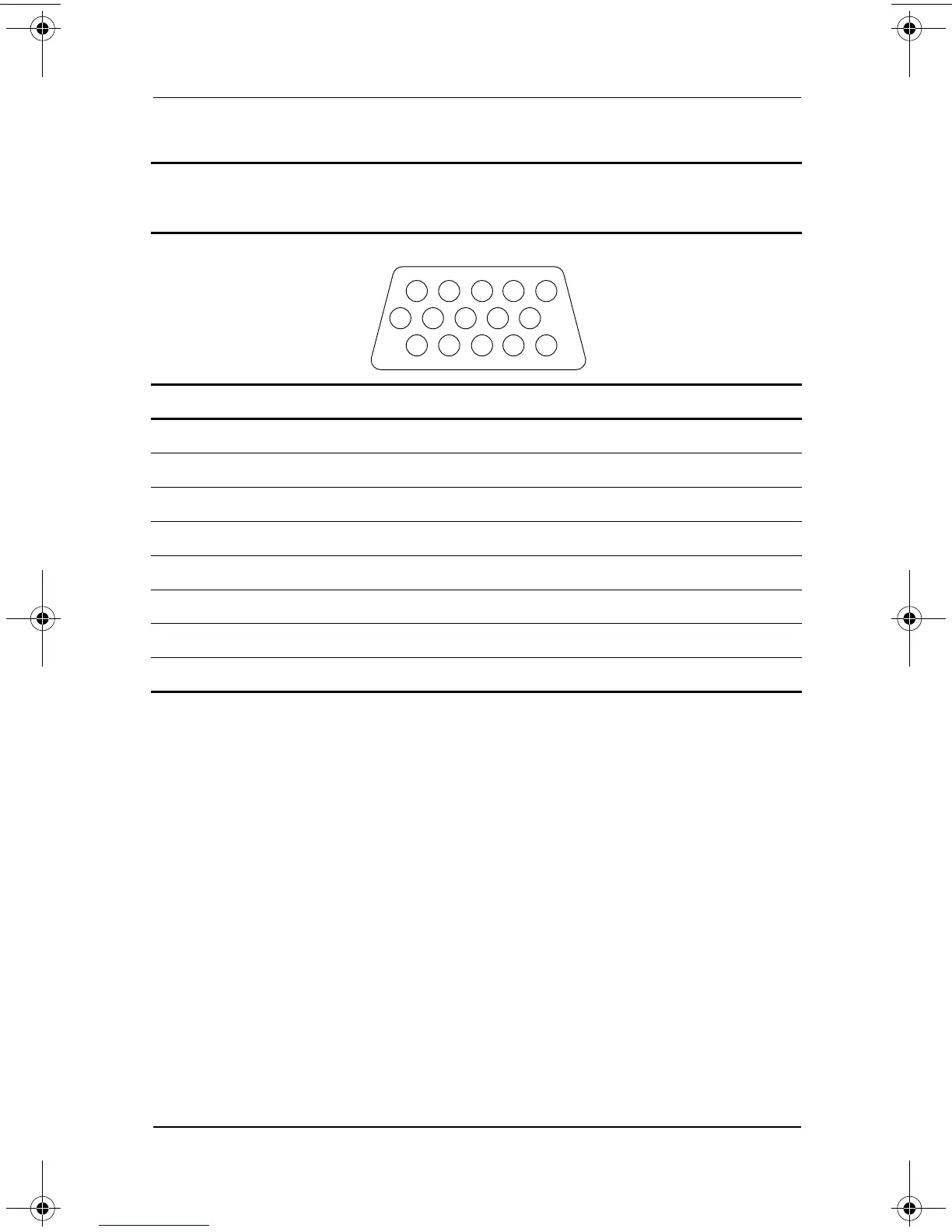

Table A-8
External Monitor
Pin Signal Pin Signal
1 Red analog 9 +5 VDC
2 Green analog 10 Ground
3 Blue analog 11 Monitor detect
4 Not connected 12 DDC 2B data
5 Ground 13 Horizontal sync
6 Ground analog 14 Vertical sync
7 Ground analog 15 DDC2B clock
8 Ground analog
1
6
11
5
10
15
