A–6 Maintenance and Service Guide

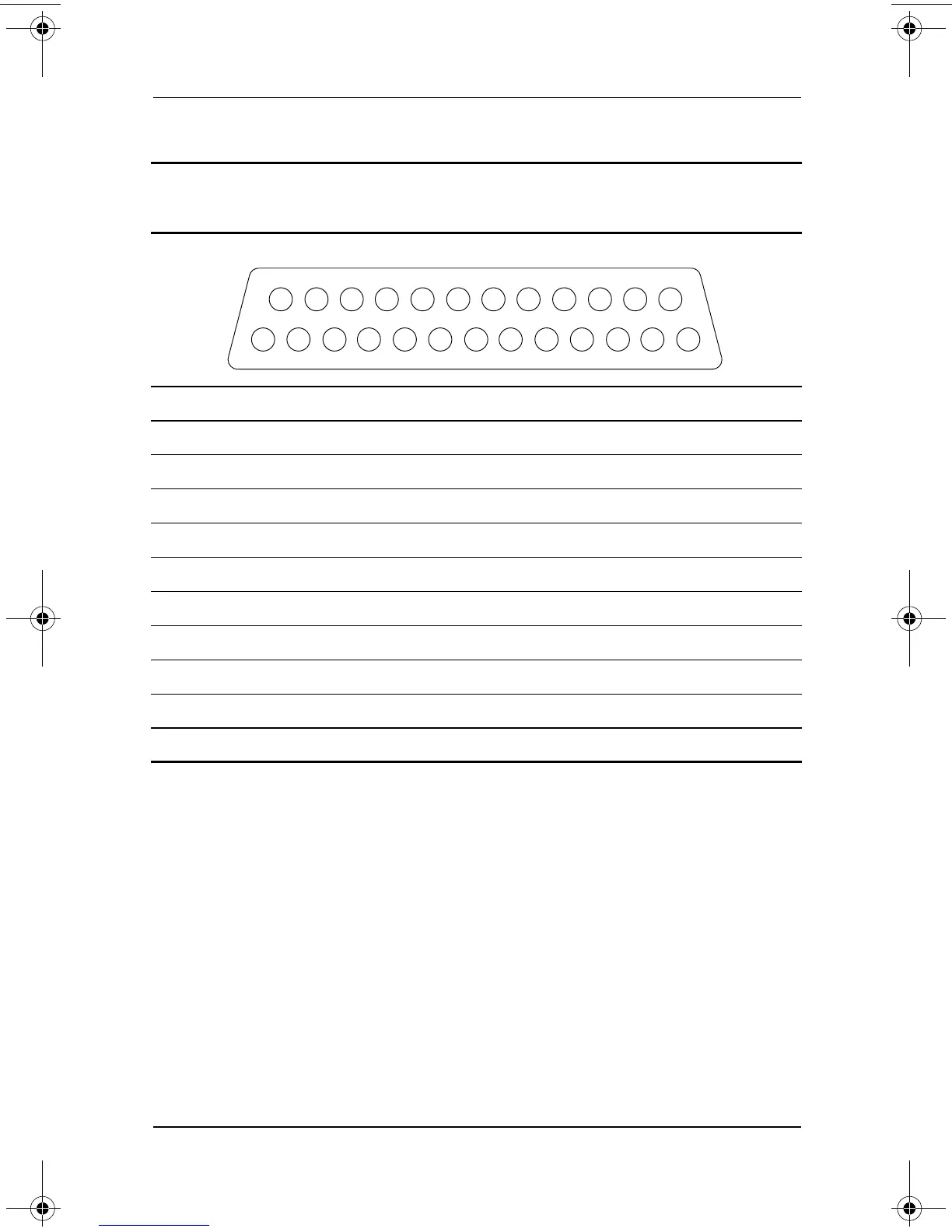

Connector Pin Assignments
Table A-9
Parallel
Pin Signal Pin Signal
1 Strobe* 10 Acknowledge*
2 Data bit 0 11 Busy
3 Data bit 1 12 Paper out
4 Data bit 2 13 Select
5 Data bit 3 14 Auto line feed*
6 Data bit 4 15 Error*
7 Data bit 5 16 Initialize printer*
8 Data bit 6 17 Select in*
9 Data bit 7 18–25 Signal ground
*Signal is active low.
1
14
25
13
