Compaq Evo N600c - Docking Connector Pinout

Connector Pin Assignments
Maintenance and Service Guide A–7

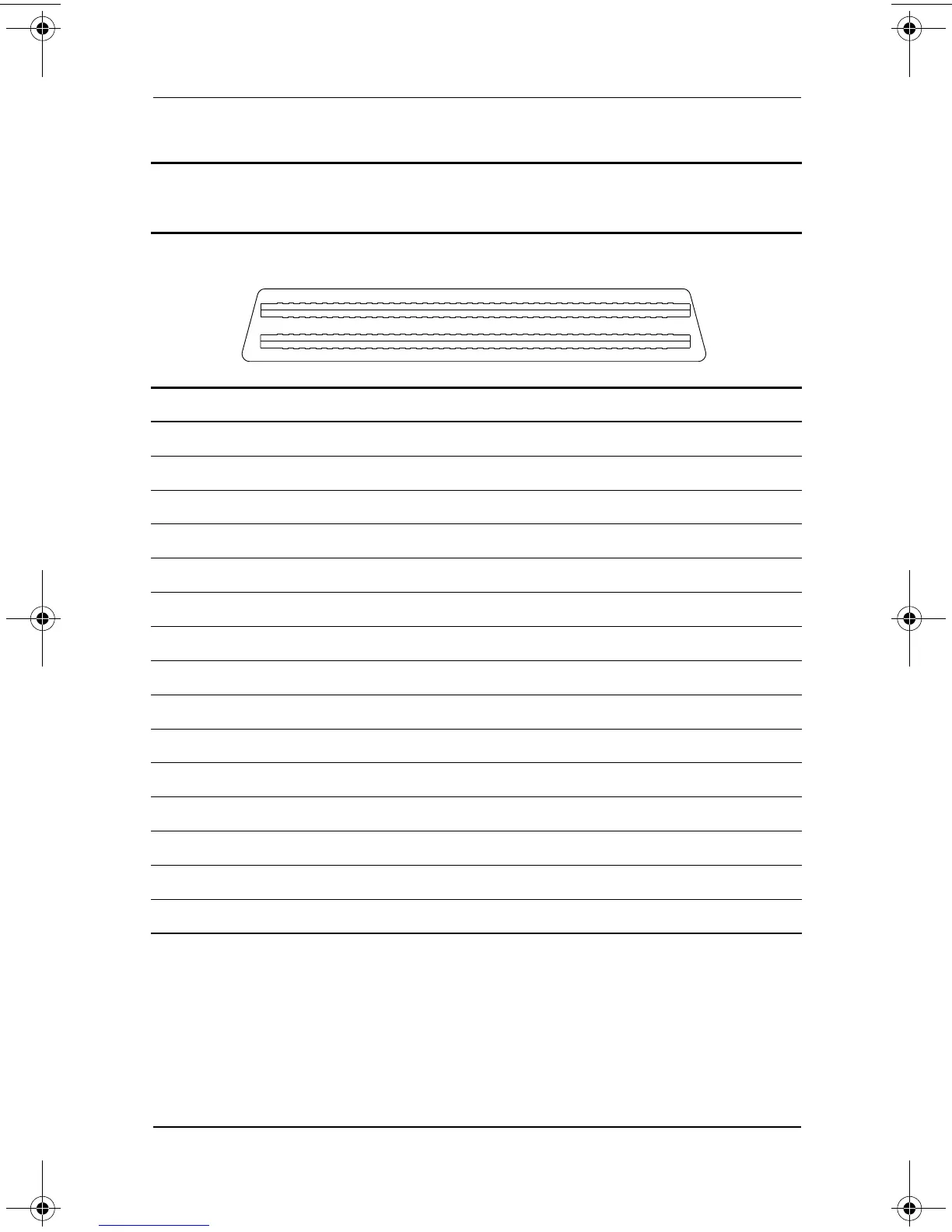

Table A-10
Docking
Pin Signal Pin Signal
1 EBOXL 16 RDATA
2AGND 17TRK0
3 EBOXS1 18 WDATA
4RED 19WGATE
5AGND 20STEP
6 GREEN 21 DIR
7 AGRD 22 POWER ON
8 BLUE 23 SYS RESET
9AGND 24GND
10 VSYNC 25 DSKCHG
11 HSYNC 26 +5 V (VDD)
12 DDC DAT 27 AUGND
13 DDC CLK 28 XA2/L IN
14 GND 29 XA3/R IN
15 INDEX 30 MID0/MIC IN
31
61
91
1
120
90
60
30
