A–8 Maintenance and Service Guide

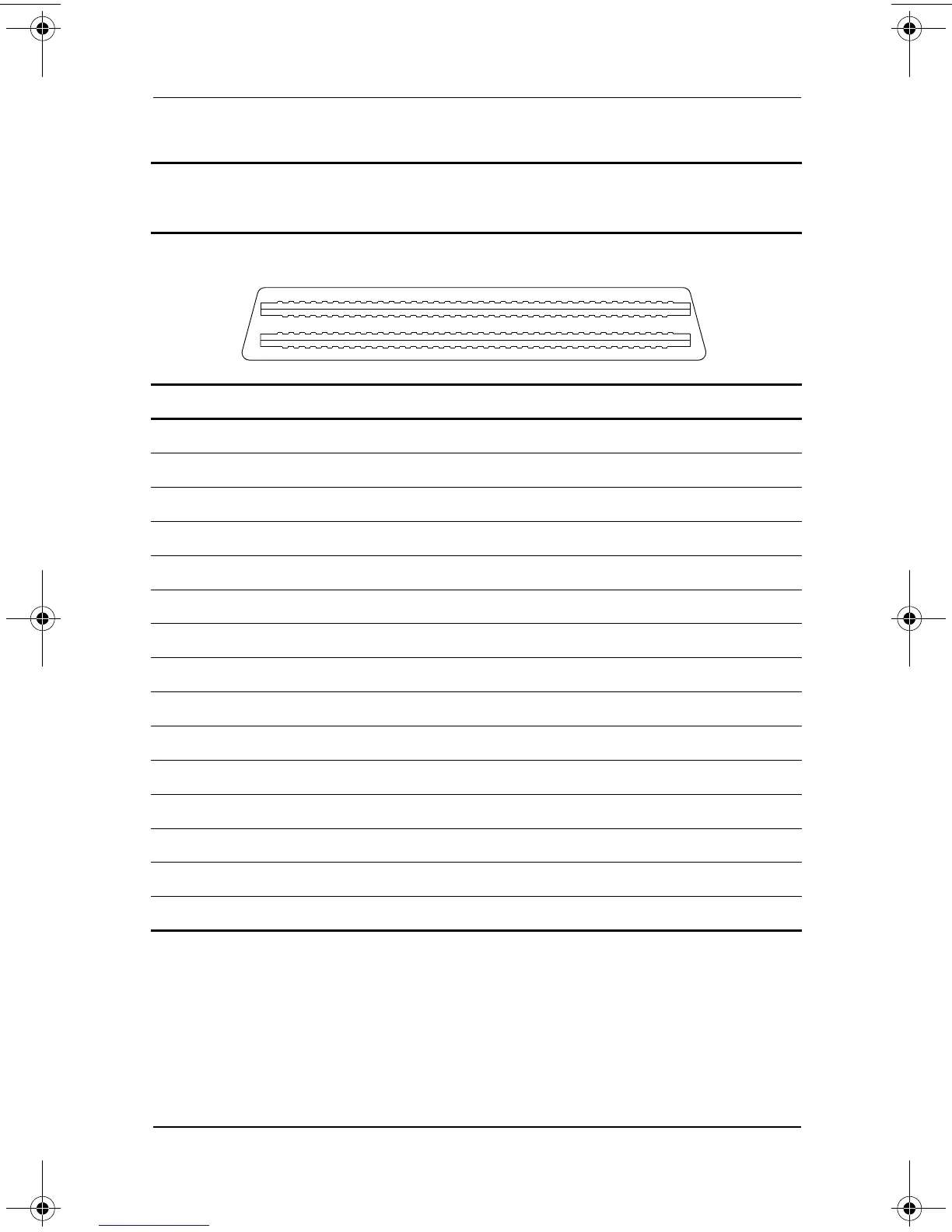

Connector Pin Assignments
Table A-10
Docking (Continued)
Pin Signal Pin Signal
31 AUGND 46 SRDY
32 XA0/L OUT 47 EBOXS1/GND
33 XSD/MIC SN 48 RI1 EX
34 XA1/R OUT 49 GND
35 GND 50 SLCT LD0
36 GND 51 PE LD1
37 EXPCLK2 52 ACK LD2
38 +3.3 V 53 BUSY LD3
39 EXPCLK0 54 GND
40 +5 V (8051VCC) 55 STRB LD4
41 EXPLCK 56 ALF LD5
42 EBOXS2 57 INIT LD6
43 GND 58 SLCTIN LD7
44 EBOXL 59 GND
45 EBOXL/GND 60 PDATA0 LD8
31
61
91
1
120
90
60
30
