MNC-0000-041 29 of 34 Revision A
Operation Addendum, HPA Control Utility
5. Refer to Figure 32. Set the Waveguide Configuration by clicking
on the down-arrow and select one of the four options from the
drop-down menu. The “1-For-1” option is the most common.
The choices are:
0 - None for stand alone unit
1- 1 for 1 for simple 1:1 system
2 – 1 plus 1 for power combined system
3 – 1 for1 plus load for 1:1 with “off line” switch
The system is shipped set in the “1 for 1” mode.

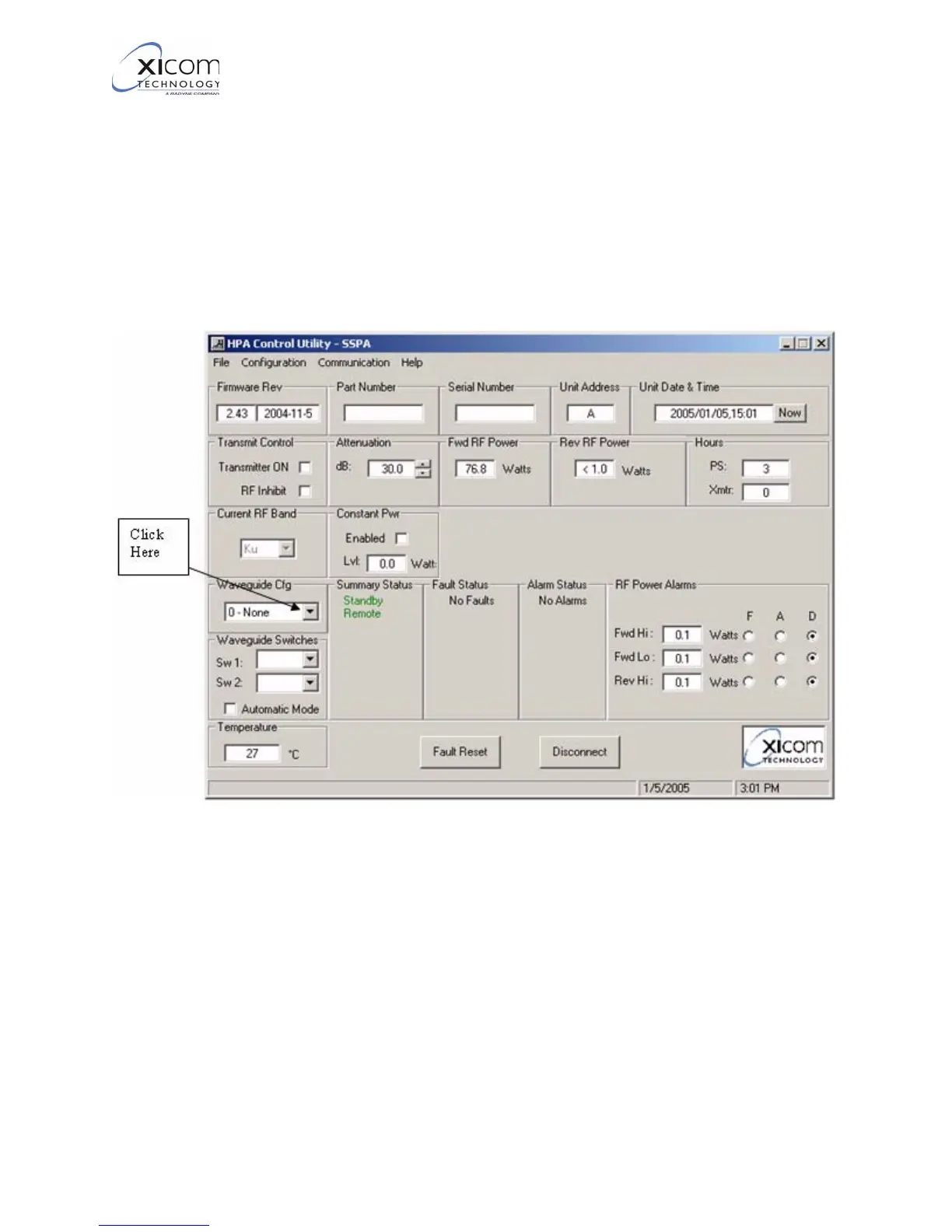

Figure 32, Select Waveguide Configuration
