RTS 16-Port Installation - External Power Supply
4. Apply power to the RTS by connecting the AC power adapter to the RTS, the
power cord to the power adapter, and plugging the power cord into a power
source. See Power Supply Specifications
on Page 19 if you want to provide
your own power supply.
5. Verify that the network connection for the RTS is functioning properly.
• The amber or red PWR LED on the front
panel of the DeviceMaster RTS is lit,
indicating you have power and it has
completed the boot cycle.
Note: The PWR LED flashes while booting
and it takes approximately 15
seconds for the bootloader to
complete the cycle.
•The red LNK ACT LED is lit, indicating that you have a working Ethernet
connection.
•If the red 100 LED is lit, it indicates a working 100 MB Ethernet connection
(100 MB network, only).
6. Go to Configuring the Network Setup
on Page 12 for default network settings
and how to configure the RTS for use.

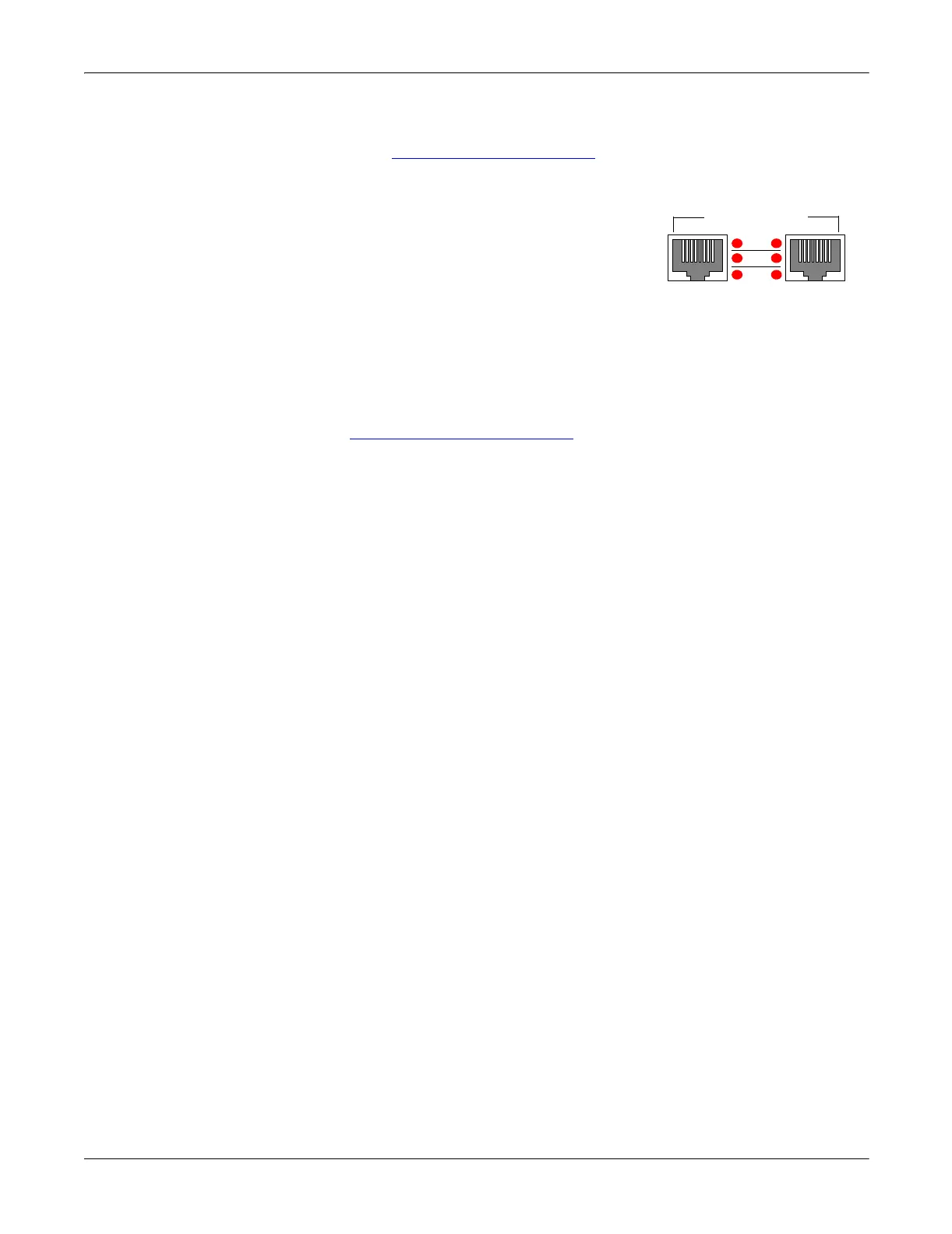

LNK
ACT
COL
100
10/100 NETWORK
UP DOWN
If the red COL LED is lit,
there is a network collision.
