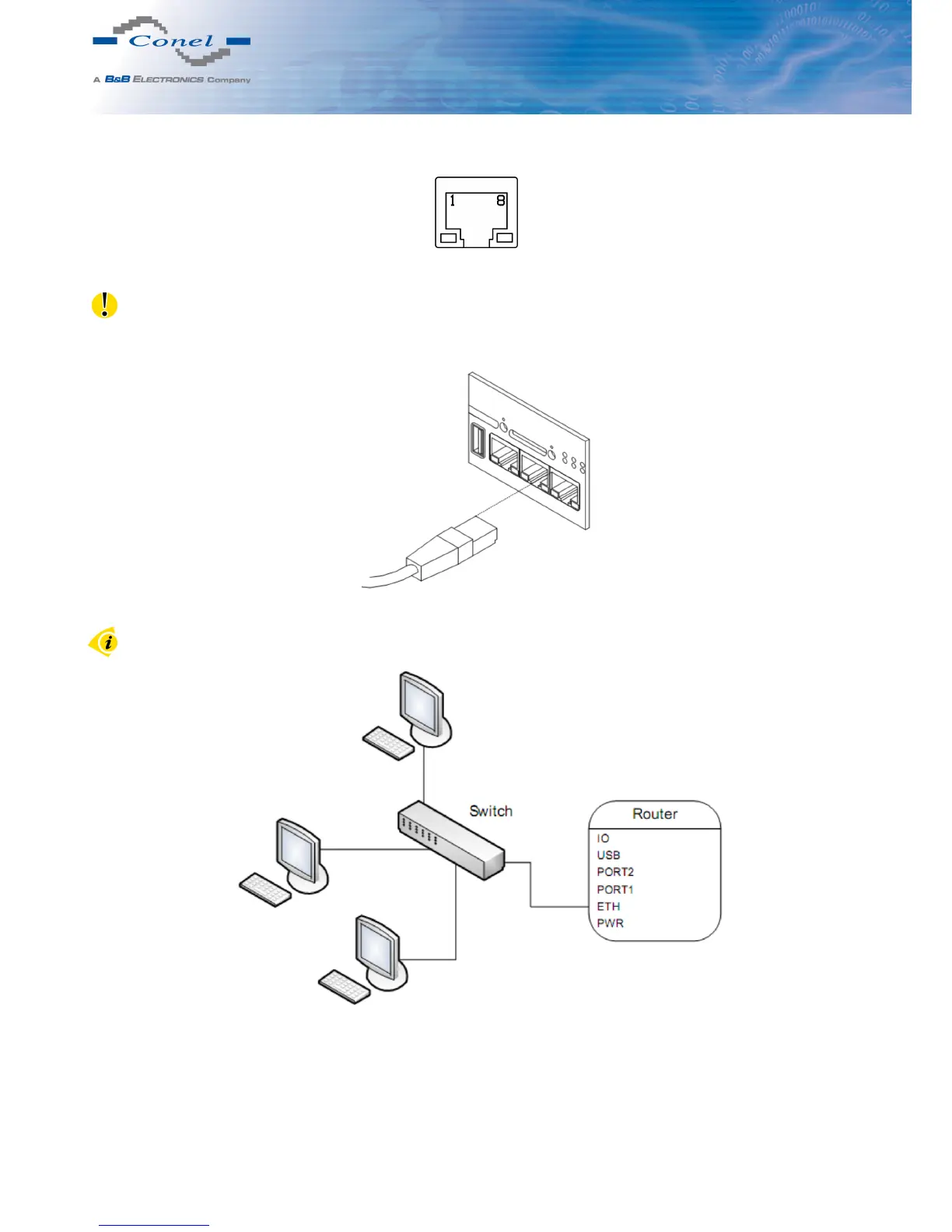

5. ROUTER DESIGN
Figure 27: Ethernet connector
ATTENTION! Por t ETH is not POE (Power Over Ethernet) compatible!
Ethernet cable plug into the RJ45 connector labeled as ETH (see figure below).
Figure 28: Connection of ethernet cable
Example of the ETH router connection:
Figure 29: Example of router connection
17
