5. ROUTER DESIGN
The user interface I/O is for processing of binary input signal and to control (settings) of
binary output signal. Binary output is not switched to ground in the default configuration.
Maximum load binar y output is 30 V / 100 mA. The constant current supplied by the binary
input is 3 mA.

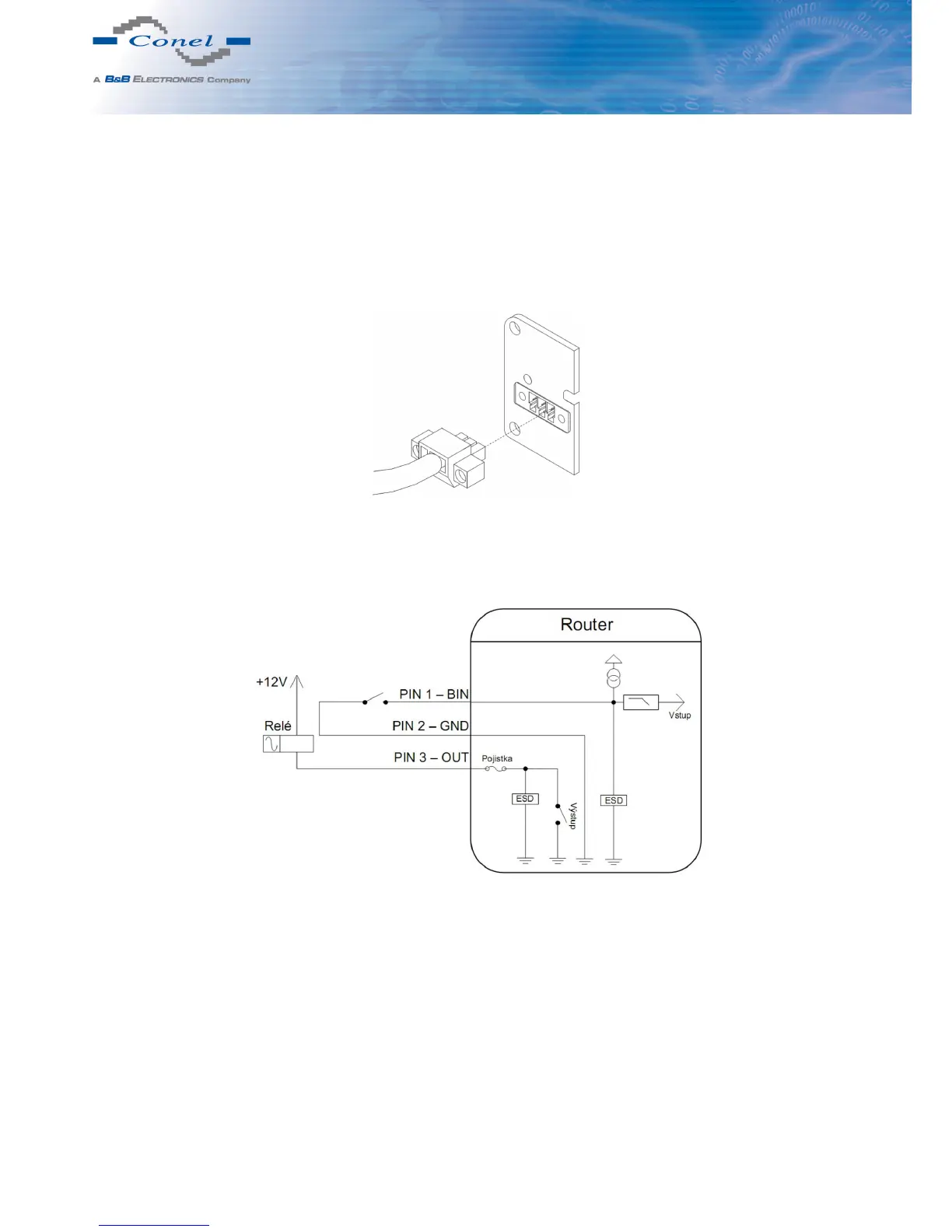

Connector I/O cable connect into the I/O connector on the router head and tighten locking
screws (see figure below).
Figure 36: Connection of I/O cable
Circuit example of a binary input or output equipment with router:
Figure 37: Connection of input and output to the router
21
