Figure 3.6 Alarm Setup
Revolving the knob key to setup alarm function. The Corresponding function and the adjustable
ranges are showed in the table3.2:
Table 3.2 The alarm setup function and adjustable ranges
No Function Adjustable Range
1 FHR ALM(FHR Alarm) Optional: Turn on, shut off The default situation
is alarm on.
2 ALM HIGH(FHR Upper Limit of
Alarm)
Optional: lower limit of alarm-310, the unit is
BPM, and the default is 190
3 ALM LOW(FHR Lower Limit of
Alarm)
Optional: high limit of alarm 0④FHR, the unit is
BPM, and the default is 110
4 ALM DELAY(FHR Alarm Delay)
Optional:0④60,the unit is second, and the default
is 30 seconds
Note:
1
When FHR is in alarm situation, alarm indicator becomes red
2
When FHR exceeds the alarm limit and time exceed the set alarm delay time
continuously, alarm will occur and an alarm symbol will appear on the screen.
（
2
（
Patient Setup
Revolving the knob key to enter patient setup, the diagram is showed as Figure 3.7:

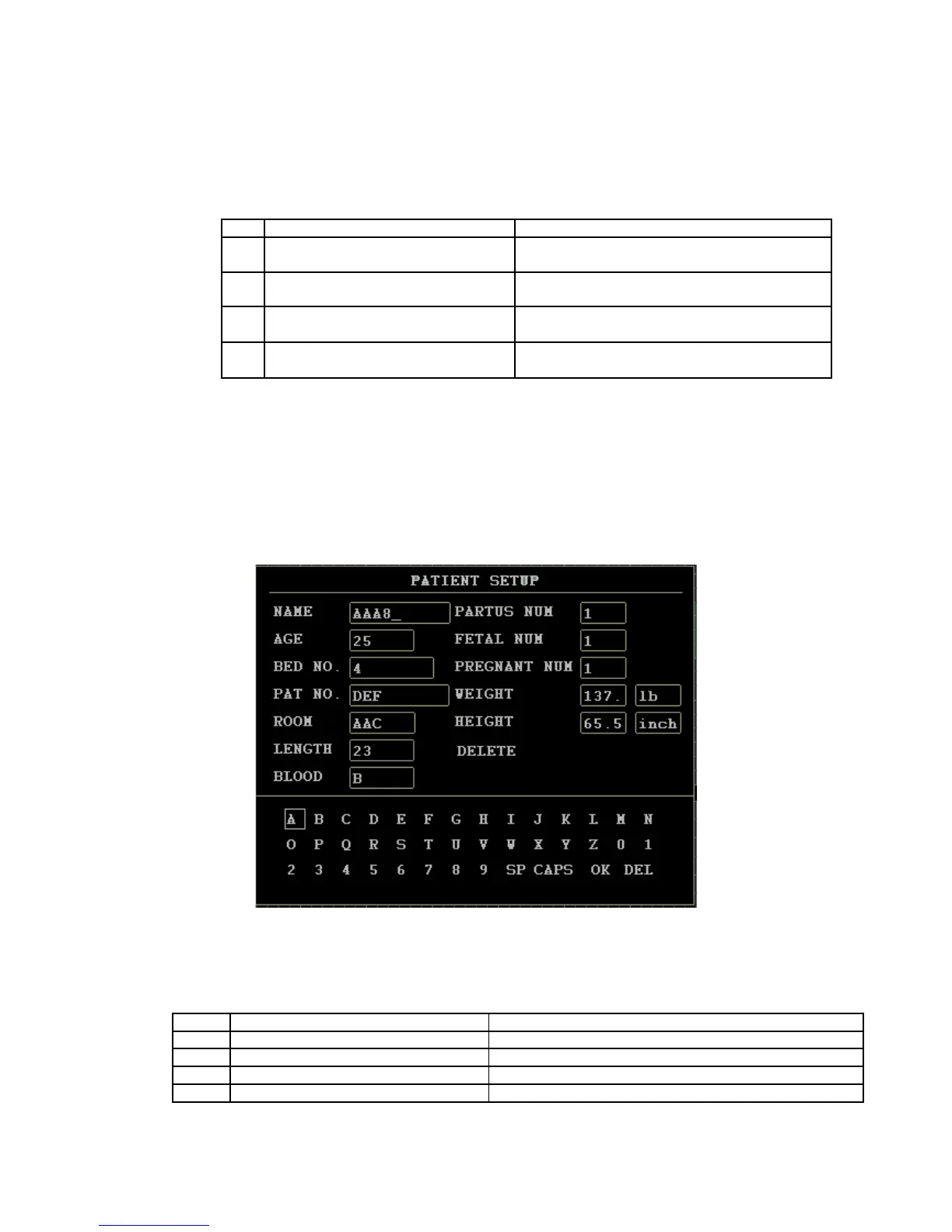

Figure 3.7 Patient Setup
Revolving the knob key to setup patient function. The Corresponding function and the adjustable
ranges are showed in the table3.3:
Table 3.3 the patient setup function and adjustable ranges
No Function Adjustable Ranges
1 NAME(Name) Optional: 12 letter or numeral. The default is blank
2 AGE(Age) Optional: numeral from 1-100. The default is 25
3 BED NO.(Bed No.) Optional: numeral from 1-100. The default is 1
4 PAT NO.(Case History No.) Optional: 12 letter or numeral. The default is blank
