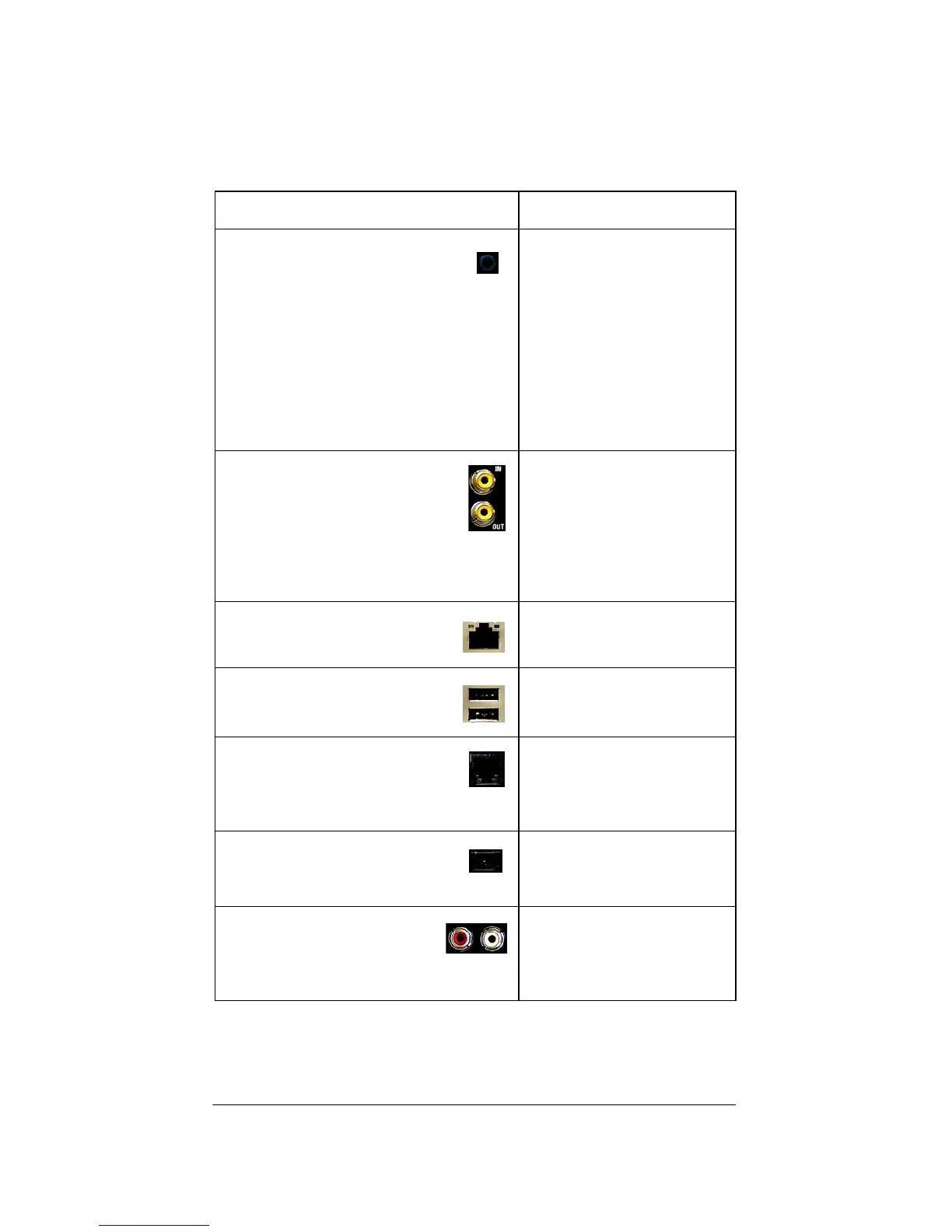

IR Out
—3.5 mm jacks for up to 8
IR sticky emitters that can be
placed over IR readers on media
players, TVs, or other targets to transmit
infrared control signals from Media
Controller to the target .
1.
2.
3.
4.
5.
6.
7.
8.
Video Sense Loop—
Composite port In-Out pairs for up
to 4 video sources, such as DVD
players or VCRs, that allow the
system to detect the On/Off status
of devices that use the same IR code for
both On and Off commands.
1.
2.
3.
4.
Ethernet—RJ-45 for a 10/100
Baset Ethernet connection.
1.
USB—Two USB ports for card
readers or other USB devices.
1.
2.
Modem—RJ-11 port for modem
to support caller ID or voice menu
system (hardware foundation for
future releases).
1.
Digital Audio—Toslink for
Digital Audio In/Out, like MP3
players.
In:
Out:
Audio In—RCA (Left-Right)
pairs for stereo channel input
for up to 3 stereo analog
sources.
1.
2.
3.
