Parameter
Description
Throtl scl
Sets the throttle scale which determines the throttle pot voltage
needed for full speed, and sets the amount of throttle movement

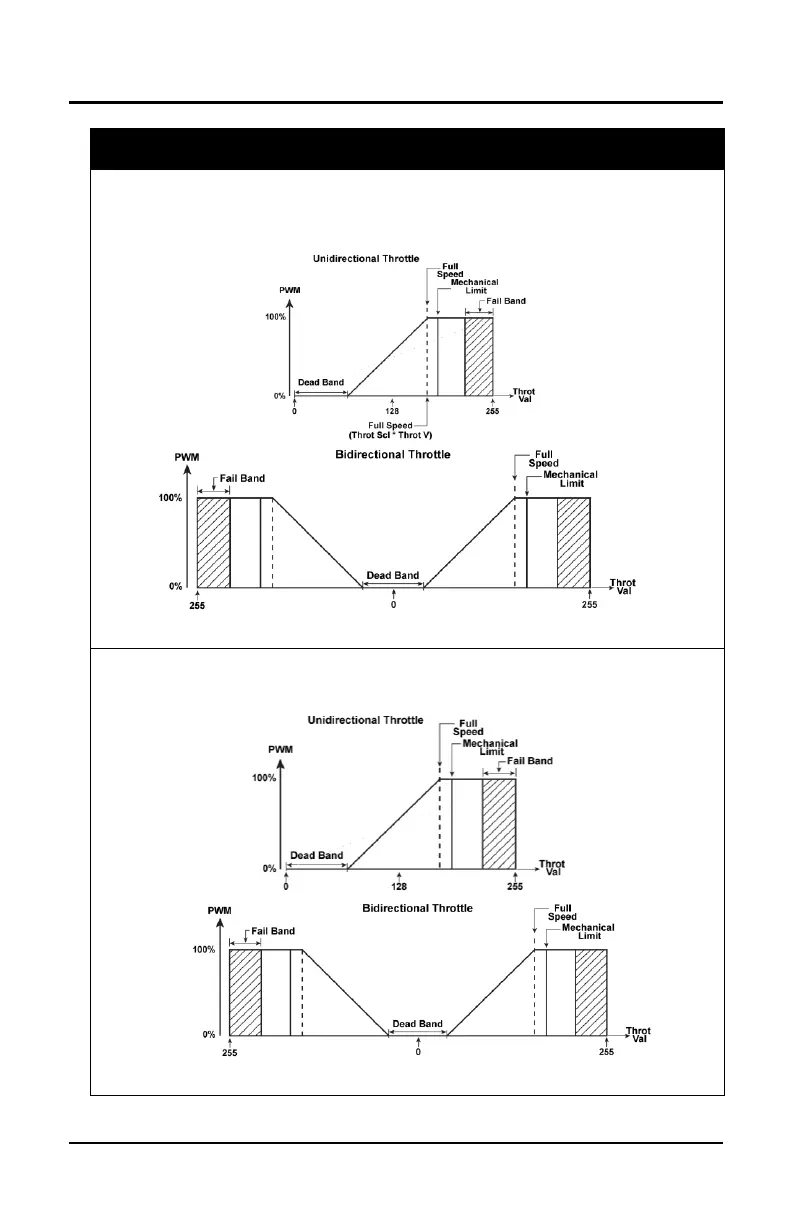

necessary to obtain full throttle. See Figure 12.
Deadband
Sets the throttle pot range that the controller determines as neutral
(See Figure 13).
Figure 12 - Throttle Scale
Figure 13 - Throttle Deadband
