User's Manual CS1171 Hand-Held Programmer
Page 43 of 56 Control Solutions LLC
Displays in real time whether the controller detects a key switch.
Displays On when the controller detects an active reverse input.
Displays On when the Reverse input is active.
Displays elapsed time for the current Charging Mode. Time resets
for every Charging Mode change. For Charging Time in hours and
minutes, convert from hexadecimal using Figure 17.
Indicates current mode of operation while charging. Codes are as
follows:
00 = Pre-charge,
02 = Charge qualification/Bulk charge,
04 = Top-Off charge, and
08 = Float charge.

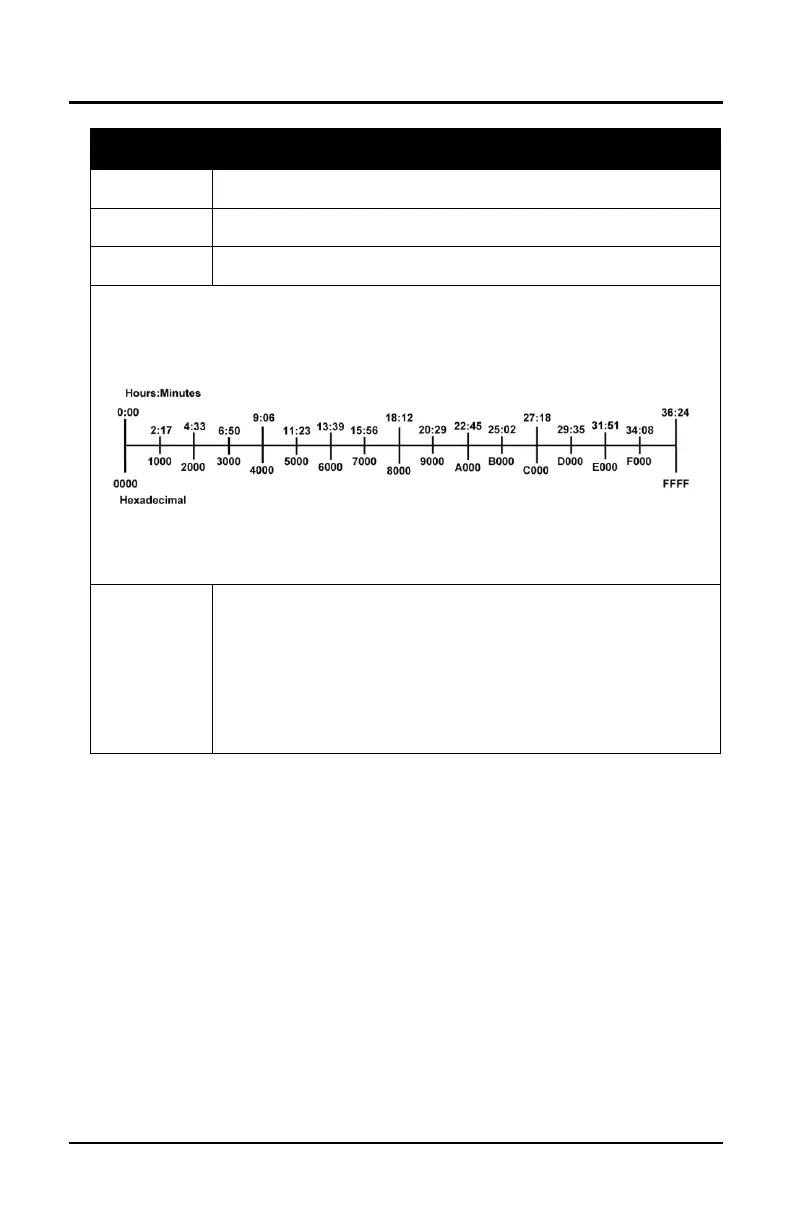

Figure 17 - Charging Time Conversion
