Control Techniques COMMANDER S100 User Manual

5 Commander S100 Step by Step Guide
STEP 3: Run the Motor
It is recommended to use the FastStart option within Marshal to program the drive. Alternatively, the
keypad can be used to edit drive parameters directly. For instructions on editing parameters with the drive
keypad, refer to figure 1-4.
The following workflow uses the default settings of Frequency Reference Configuration P0.05 and Enable/Run
Configuration P0.10. For information on the setup of these parameters see their descriptions in Marshal or the
Parameter section of the Commander S100 User Guide.
Action Detail
Configure drive settings
Power-up Power-up the drive, ensure the drive is not enabled. (Display shows: inh)
Enter Minimum &
Maximum
Frequency
• Minimum Frequency Limit P0.01 (Hz)
• Maximum Frequency Limit P0.02 (Hz)
Acceleration &
Deceleration
Rates
• Acceleration Rate 1 P0.03 (s)
• Deceleration Rate 1 P0.04 (s)
Define ramp times between 0 Hz and Maximum Frequency Limit P0.02

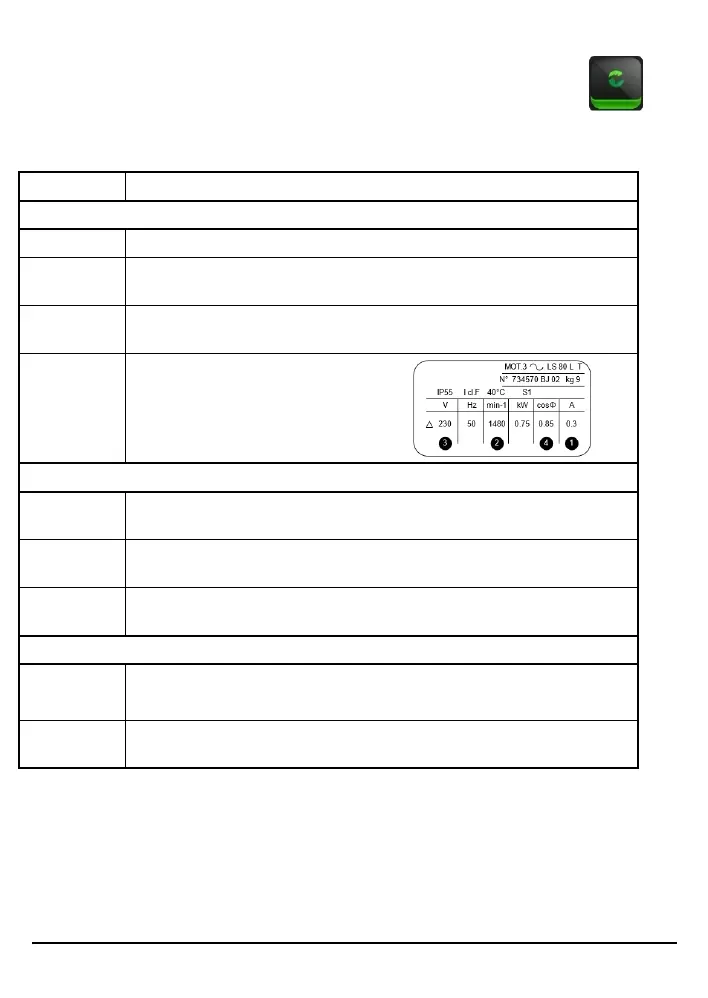

Enter Motor
Nameplate
Details
Ready to Run (Default Configurations Only)
Run
Always ensure it is safe to start the motor before doing so.
Enable the drive with terminal 12 (T12).
Provide the drive with a run signal with T13 (Run Forward) or T 14 (Run Reverse).
Increasing and
Decreasing Motor
Speed
Increase or decrease current to Analog Input 1 (T2) to increase or decrease the frequency
reference. Close Digital Input 5 (T15) to switch to a reference from Analog Input 2 (T4).
Stopping
Remove the Run Forward (T13) or Run Reverse (T14) signal to stop the motor by following the
selected deceleration rate. If the Enable signal (T12) is removed while the motor is running, the
drive output is immediately disabled, and the motor will coast to a stop.
Made a mistake?
Restore Factory
Defaults
1. Ensure the drive is not enabled. (Display shows: inh)
2. Set P4.01 to 1 to load 50 Hz defaults or 2 to load 60 Hz defaults.
3. Press or hold the settings key to exit the parameter.
Troubleshoot
If the drive detects a fault, it will display an error code. All error codes for the drive and possible
resolutions are available in the mobile app, Marshal. Alternatively, please view the diagnostics
section in the Commander S100 User Guide.
1. Motor Rated Current P0.06 (A)
2. Motor Rated Speed P0.07 (rpm)
3. Motor Rated Voltage P0.08 (V)
4. Motor Rated Power Factor P0.09 (cosΦ)
