Epsilon EP-I Indexing Drive and FM-2 Indexing Module Reference Manual
FM-2 Indexing Module Options

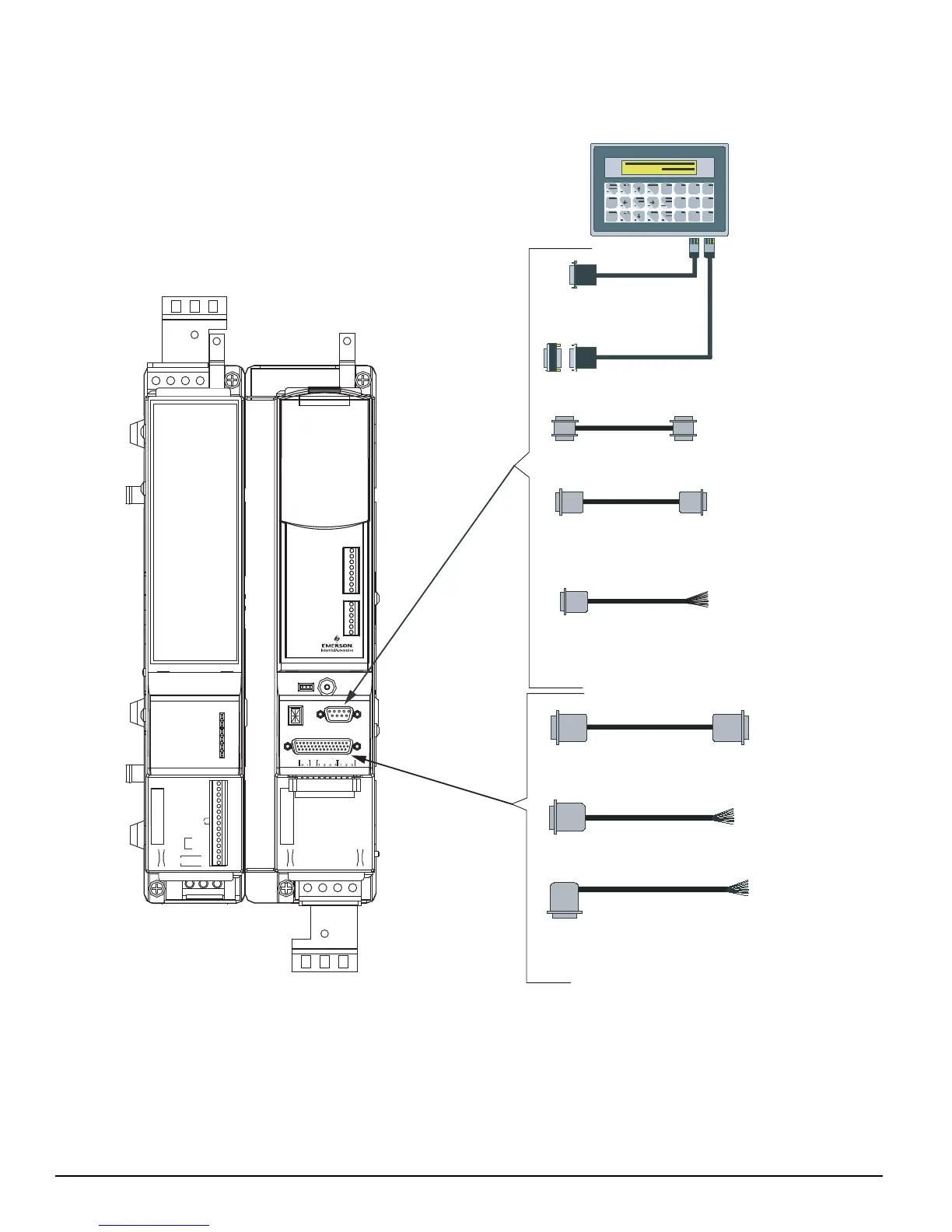

The following cables are used to connect various components to the MDS drive module and FM-2.
10-30
VDC
DRIVE
ENABLE
INPUT
OUTPUT
J6
Command
J5
J4
Serial
PE
Power
Logic
Shunt Active
+
-
PE
24V rtn
+24VDC
Fault Reset
Ext Shunt Control
Drive Module Fault
High VAC Input
Over Temp
Shunt Fault
AC Interlock
System Ready
I/O 10-30 VDC
Over Temp
Shunt Fault
Shunt Active
System Ready
Logic Power
Power Module Status
High VAC Input
PE
FM-2
Inputs
Outputs
10 - 30 VDC
1
2
3
4
5
6
7
8
1
2
3
4
+
-
RESET
Command Cable, CMDX-003,
Base Drive to ECI-44
Command Cable, CMDO-XXX,
from lead encoder
Command Cable, CDRO-XXX,
Drive to AXIMA Classic or
other controller
OIT-PC-232-XXX
and D9P-D9P adapter
OIT-EN-232-XXX
or
OIT-EN-485-XXX
Serial Cable, RS-485,
Drive to Screw Terminals
CO485-XXX
Serial Cable, RS-232,
Drive to PC
TIA-XXX for DB-9 Pin Connector
Serial Cable, DDS-XXX,
Drive to Drive (J4 to J4)
