Epsilon EP-I Indexing Drive and FM-2 Indexing Module Reference Manual

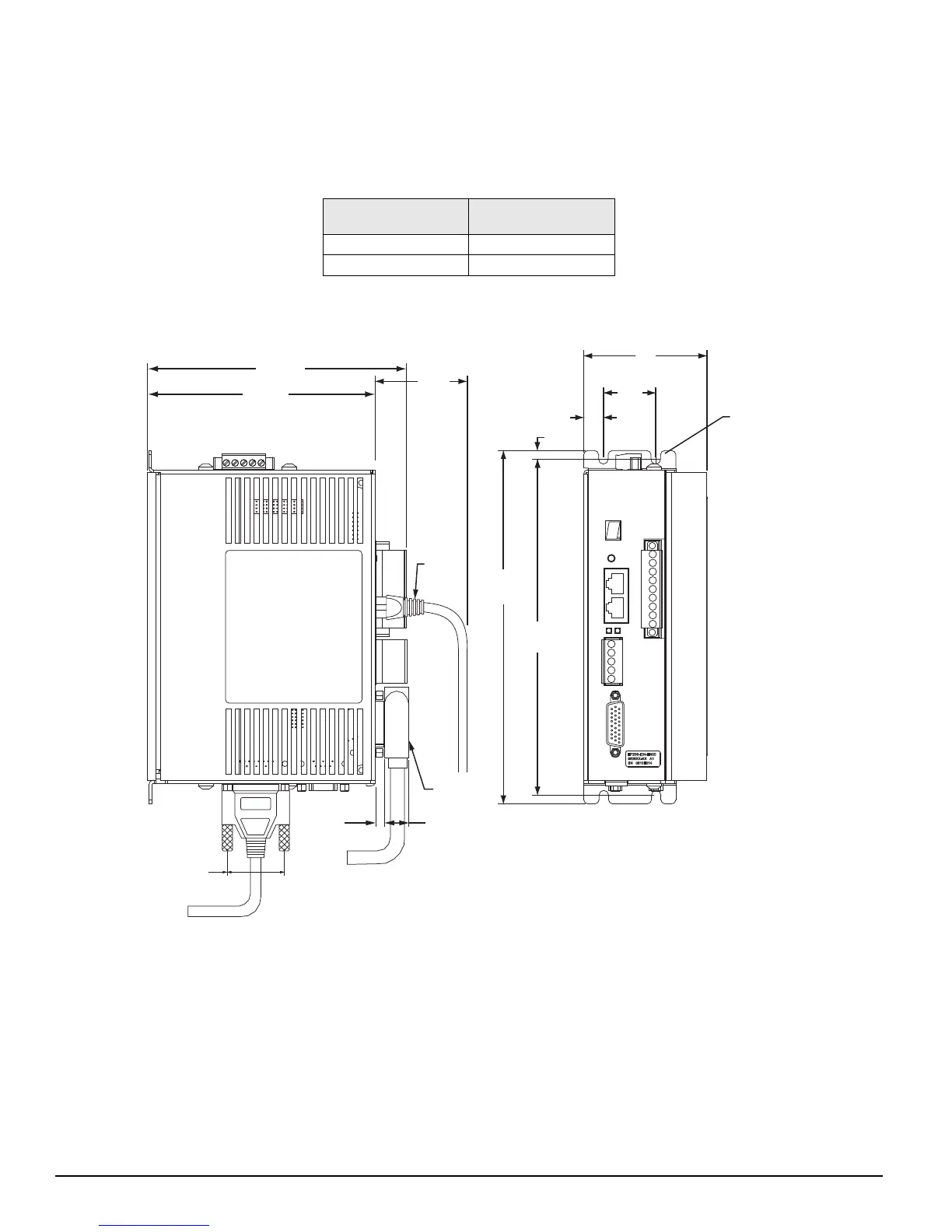

Dimensions and Clearances
Epsilon EP-I Drive
The following table applies to the "A" as shown in the figure below.
Drive Model
Dimension "A"
(shown in inches/mm)
EP202/204 2.11 [53.59]
EP206 2.82 [71.63]
DDC-RJ45
Cable
0.75
[19.05]
0.19
[4.8]
EIO Cable
1.20
[30.48]
0.45
[23.4]
(4X)Ø.219
[5.56]
5.22
[132.59]
5.94
[150.88]
8.099
[205.72]
.200
[5.08]
7.70
[195.58]
2.5
[63.50]
“A”
