Control Techniques Epsilon EP-I User Manual

53
Operational Overview

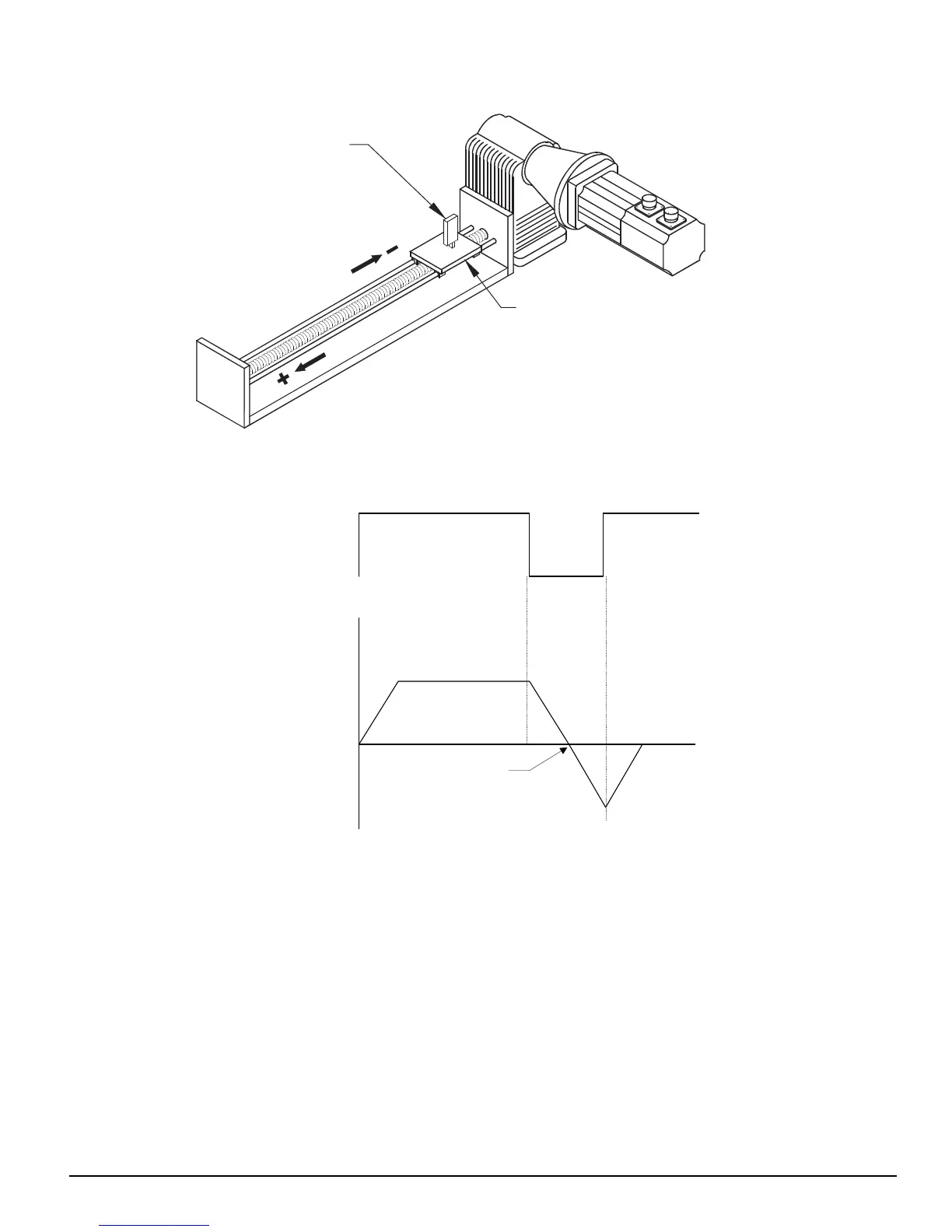

Figure 51: Back Off Sensor Example
Figure 52: Back Off Sensor
In the figure on the previous page, the motor has restricted travel. In order to find the rising edge of the Home Sensor input,
the motor must back away from the sensor until the Home Sensor Input Function deactivates, then move forward looking for
the rising edge of the sensor. When backing-off of the sensor, the motor will move in the opposite direction of the Home
Velocity.
Ba
ckoff
Mot
i
on
External
Home Sensor
Gear Reducer
Carriage
NT Motor with
Encoder
H
ome
V
e
lo
c
ity
Velocity
Time
Home
Sensor
Input
On
Off
Off On
Home Reference
Position
Start of Normal
Home Routine
Back off
Sensor Move
