61 M’Ax Advanced User Guide
www.controltechniques.com Issue Number: 4
This disables UU trip state and enables charge up relay for low voltage use. It is necessary to use a digital input to set this bit. This input is
used to provide interlock before return to full volts from low voltage supply. The drive healthy bit is dropped after a delay of 20ms to allow
charging up relay to drop. This interlock mechanism protects the drive from applying full power to DC bus caps without a charging resistor.
When this parameter is activated by user trip 32 Ph is disabled.
0 = Phase failure protection enabled
1 = Phase failure protection disabled
When this parameter is activated by user trip 19 It.Br is disabled.
0 = Internal braking resistor protection enabled
1 = Internal braking resistor protection disabled
The M'Ax power stage is rated at 200% for 2 seconds. The drive includes a thermal protection system. The drive over temperature alarm bit
is set if this parameter is greater than 75%. The drive will trip on O.ht1 if 10.56 >100%.
Refer to parameter 10.53.
10.52 Cause of trip
0 Dl.Er trip has occurred before SL.Er trip
1 Encoder object crc or checksum incorrect
2 Motor object crc checksum incorrect
4 Eze object crc checksum incorrect
8 Failure in encoder
16
Invalid entry for address 49 of the motor
object
32 SLM not compatible with drive software
64 Eze object not compatible with drive software
128
SLM technology failure. Maximum number of
communication attempts reached
256 SLM disabled state
512
190 Frame motor fitted with a SLM software
version 3.01
10.53 Under voltage protection disable
ô
0~1
ð
RO Bit P
10.54 AC-supply phase failure protection disable
ô
0~1
ð
0 RW Bit P
10.55 Internal braking-resistor protection disable
ô
0~1
ð
0 RW Bit P
10.56 Drive overload accumulator
ô
0.0 ~ 100.0
ð
%ROUni P0.41
10.57 Supply interlock
ô
0~1
ð
RO Bit P

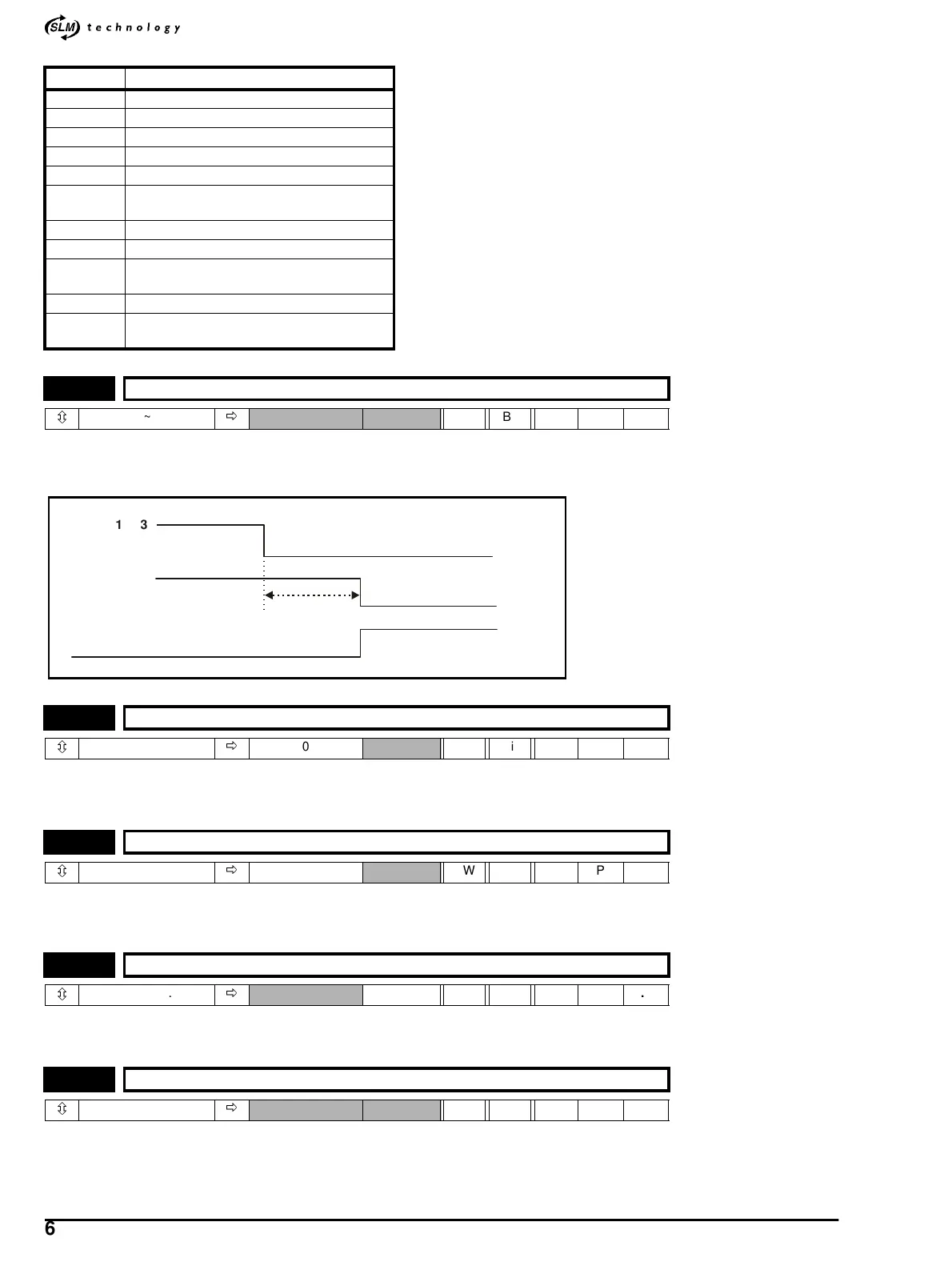

10.53
Drive healthy
delay
Supply interlock delay [ ]
10.57
