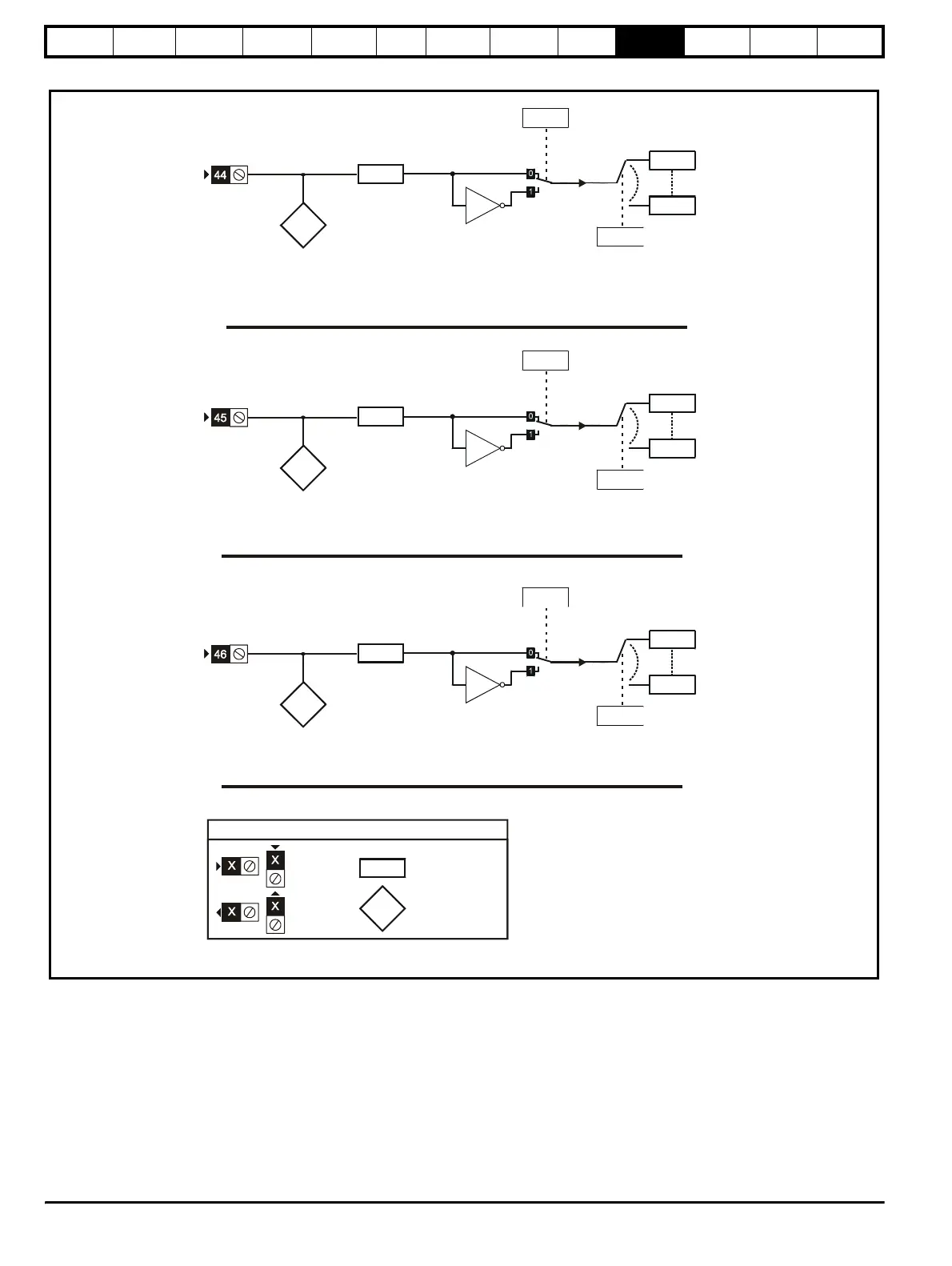

Figure 10-21 Menu 16 UD50 logic diagram, part 2
x(-1)
16.40
??.??
??.??
All parameters are shown
at their default setting
Destination
parameter
Any unprotecte
d
bit parameter
Positive
logic select
Invert
16.30
16.31
16.10
Input/output
state indicator
66
Input F10
x(-1)
16.40
??.??
??.??
All parameters are shown
at their default setting
Destination
parameter
Any unprotecte
d
bit parameter
Positive
logic select
Invert
16.32
16.33
16.11
Input/output
state indicator
66
Input F11
x(-1)
16.40
??.??
??.??
All parameters are shown
at their default setting
Destination
parameter
Any unprotecte
d
bit parameter
Positive
logic select
Invert
16.34
16.35
16.12
Input/output
state indicator
66
Input F12
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
