3.12 Power terminals
3.12.1 Location of power and ground terminals

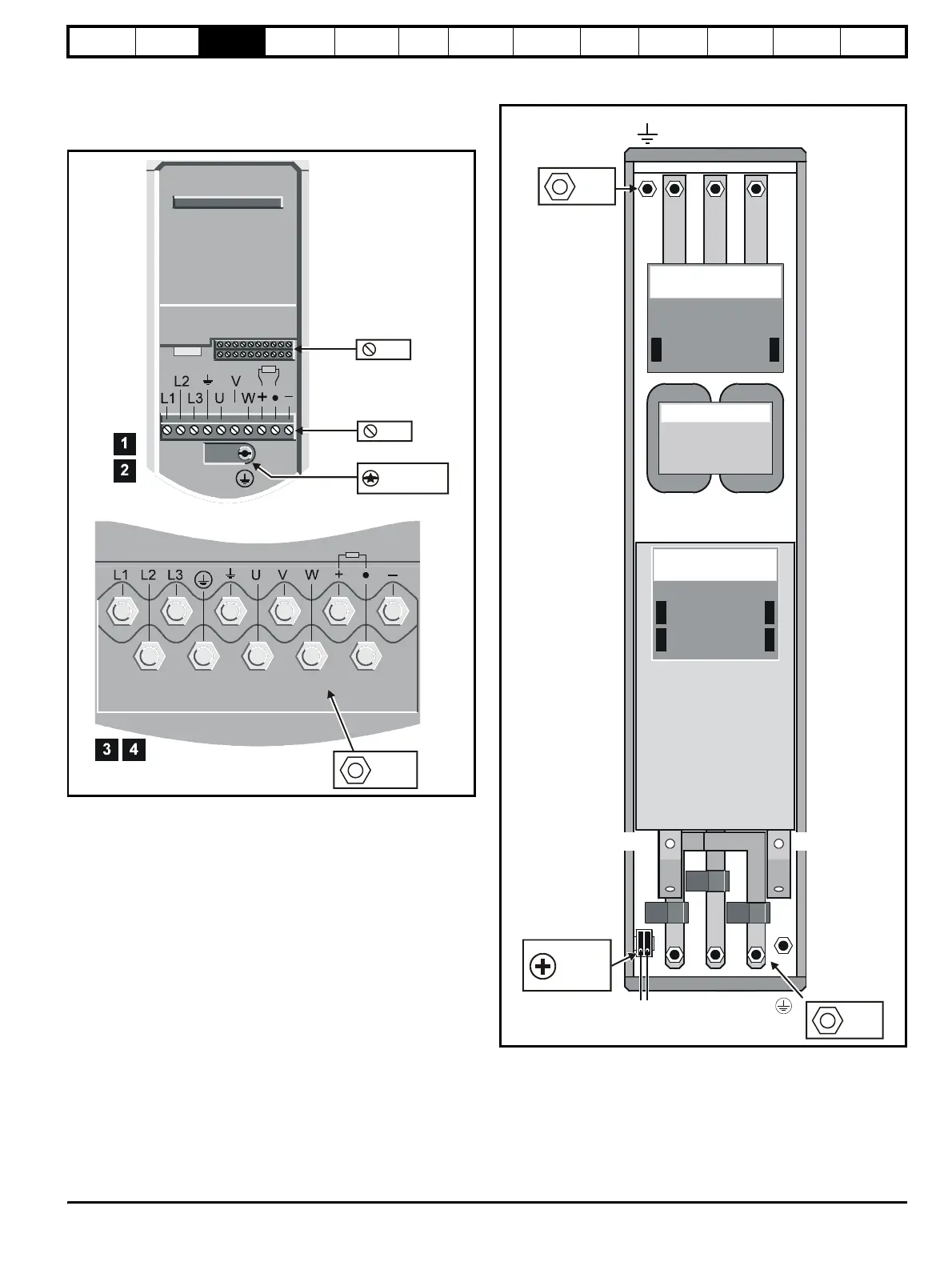

Figure 3-29 Locations of the power and ground terminals on
Unidrive Size 1 to 4
Figure 3-30 Locations of the power and ground terminals on the
Size 5 power module
2mm
3mm
T25 Torx or
10mm flat
17mm
L1 L2 L3
UVW
AC supply connections
Fan AC-supply
connections
Motor connections
IN96
Phase-control board
DC-bus choke
IN95
Interface board
− DC bus
+DC bus
17mm
M4
pozidriv
screw
17mm
