34 Unidrive User Guide
www.controltechniques.com Issue Number: 9
Unidrive Size 5 bookcase mounted filter
Ensure the LOAD terminals face the drive.

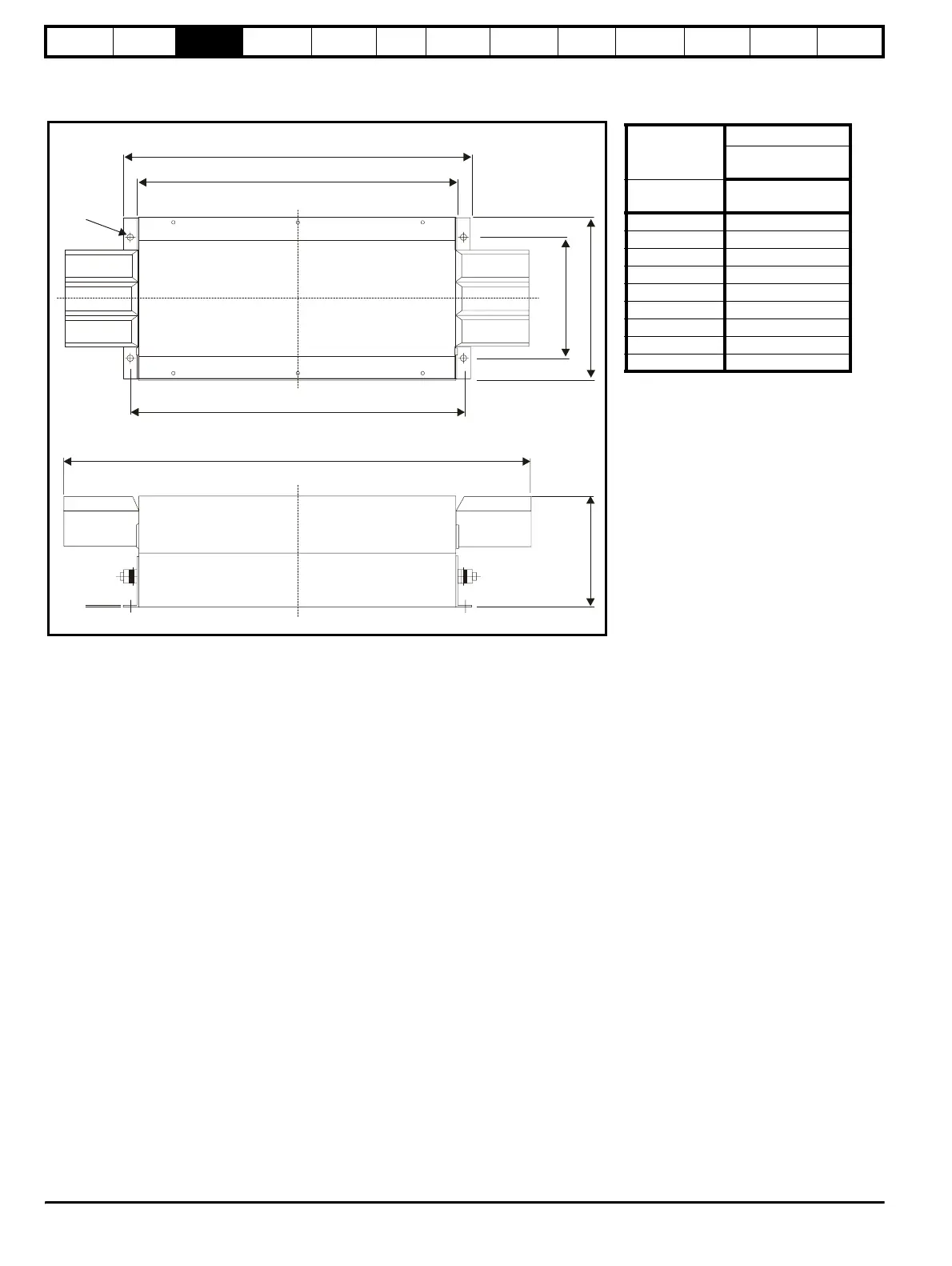

Figure 3-28 Unidrive size 5 bookcase mounted filter
BW
A
C
G
∅ Z
L
H
LINE
LOAD
Dimension
RFI Filters
4200-6115
FS5113-300-99
Model
UNI3203
UNI3404
A 470mm (18.504in)
B 170mm (6.693in)
C 450mm (17.717in)
G 490mm (19.291in)
H 156mm (6.142in)
L 655mm (25.787in)
W 230mm (9.055n)
Z 8.5mm (0.335in)
Ground Terminal M12
