Unidrive User Guide 59
Issue Number: 9 www.controltechniques.com

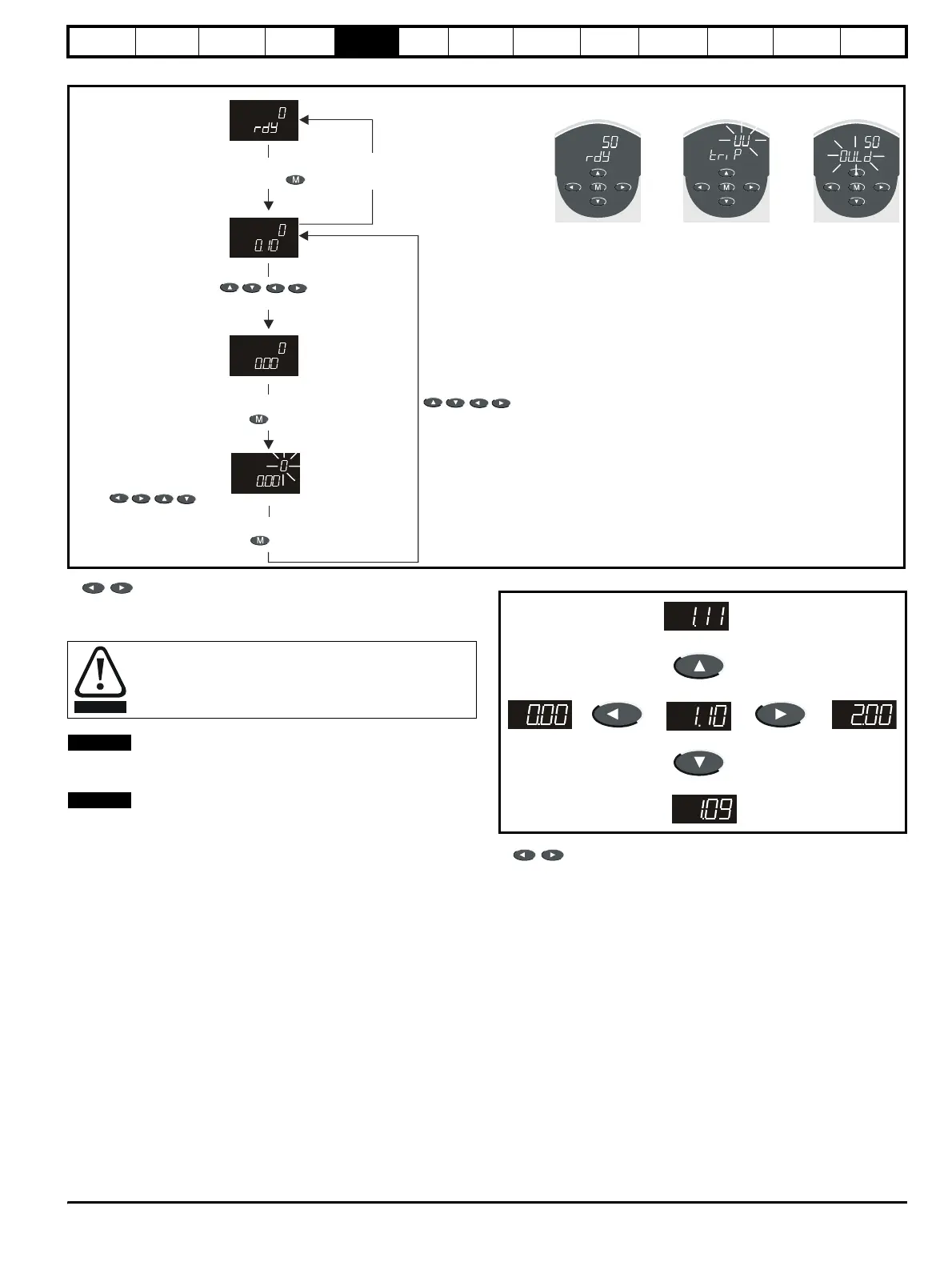

Figure 5-2 Display modes
* can only be used to move between menus if standard
security has been opened. For further information, refer to section
5.10 Parameter security on page 62.
When changing the values of parameters, make a note of the new
values in case they need to be entered again.
For new parameter-values to apply after the AC supply to the drive is
interrupted, new values must be saved. Refer to section 5.8 Saving
parameters on page 61.
5.3 Menu structure
The drive parameter structure consists of menus of parameters.
The drive initially powers up so that only menu 0 can be viewed. The up
and down arrow buttons are used to navigate between parameters and
once standard security has been cleared, the left and right buttons are
used to navigate between menus.
* can only be used to move between menus if standard
security has been opened. For further information, refer to section
5.10 Parameter security on page 62.
The menus and parameters roll over in both directions.
i.e. if the last parameter is displayed, a further press will cause the
display to rollover and show the first parameter.
When changing between menus the drive remembers which parameter
was last viewed in a particular menu and thus displays that parameter.
Healthy Status Trip Status Alarm Status
Use * keys
to select parameter for editing
To enter Edit Mode,
press key
S
tatus Mode
(display not flashing)
Parameter Mode
(display not flashing)
Edit Mode
(upper line of display flashing)
Change parameter values
using keys.
8 seconds
timeout
When returning
to Parameter
Mode use the
keys to select
another parameter
to change, if
required
To exit Edit Mode,
press key
To enter Parameter
Mode, press key
Status mode examples:
*
Do not change parameter values without careful
consideration; incorrect values may cause damage or a
safety hazard.
WARNING
NOTE
NOTE
**
