3.11.1 Unidrive size 1 filters
Dimension
RFI Filter
4200-6105
FS5111-10-29
Model
UNI1201 to UNI1205
UNI1401 to UNI1405
A 230mm (9.055in)
B 25mm (0.984in)
C 218mm (8.583in)
D 47.5mm (1.870in)
H 95mm (3.740in)
L 240mm (9.449in)
W 45mm (1.772in)
Z 4.5mm (0.177in)
Ground Terminal M5

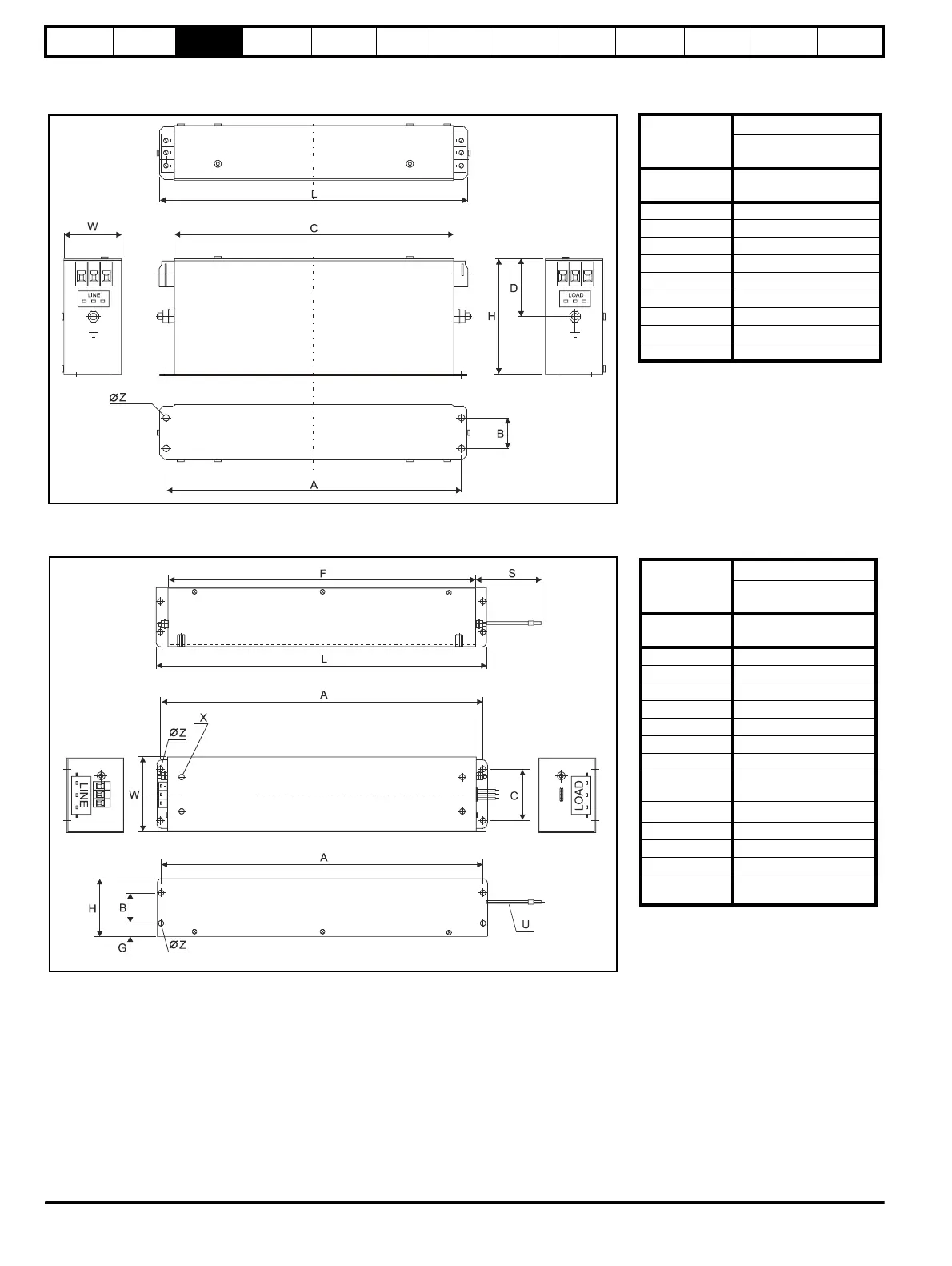

Figure 3-21 Unidrive size 1 bookcase mounted filter
Dimension
RFI Filter
4200-6104
FS5101-10-07
Model
UNI1201 to UNI1205
UNI1401 to UNI1405
A 380mm (14.961in)
B 35mm (1.378in)
C 60mm (2.362in)
F 364mm (14.331in)
G 16.5mm (0.650in)
H 68mm (2.677in)
L 390mm (15.354in)
S
300mm ±5mm
(11.811in ±0.197in)
U
3x 2.5mm
2
(AWG14)
W 85mm (3.346in)
XM6 (4x)
Z 5.5mm (0.217in)
Ground
Terminal
M5
Figure 3-22 Unidrive size 1 footprint or bookcase mounted filter
