4.11.2 Configuring the control module
On the control module, set the configuration switches to correspond with
the addresses given to the power modules in the system. Move the
switch to the off position to set the switch. Ensure all remaining switches
are in the on position. See Table 4-6 for example configuration setting.

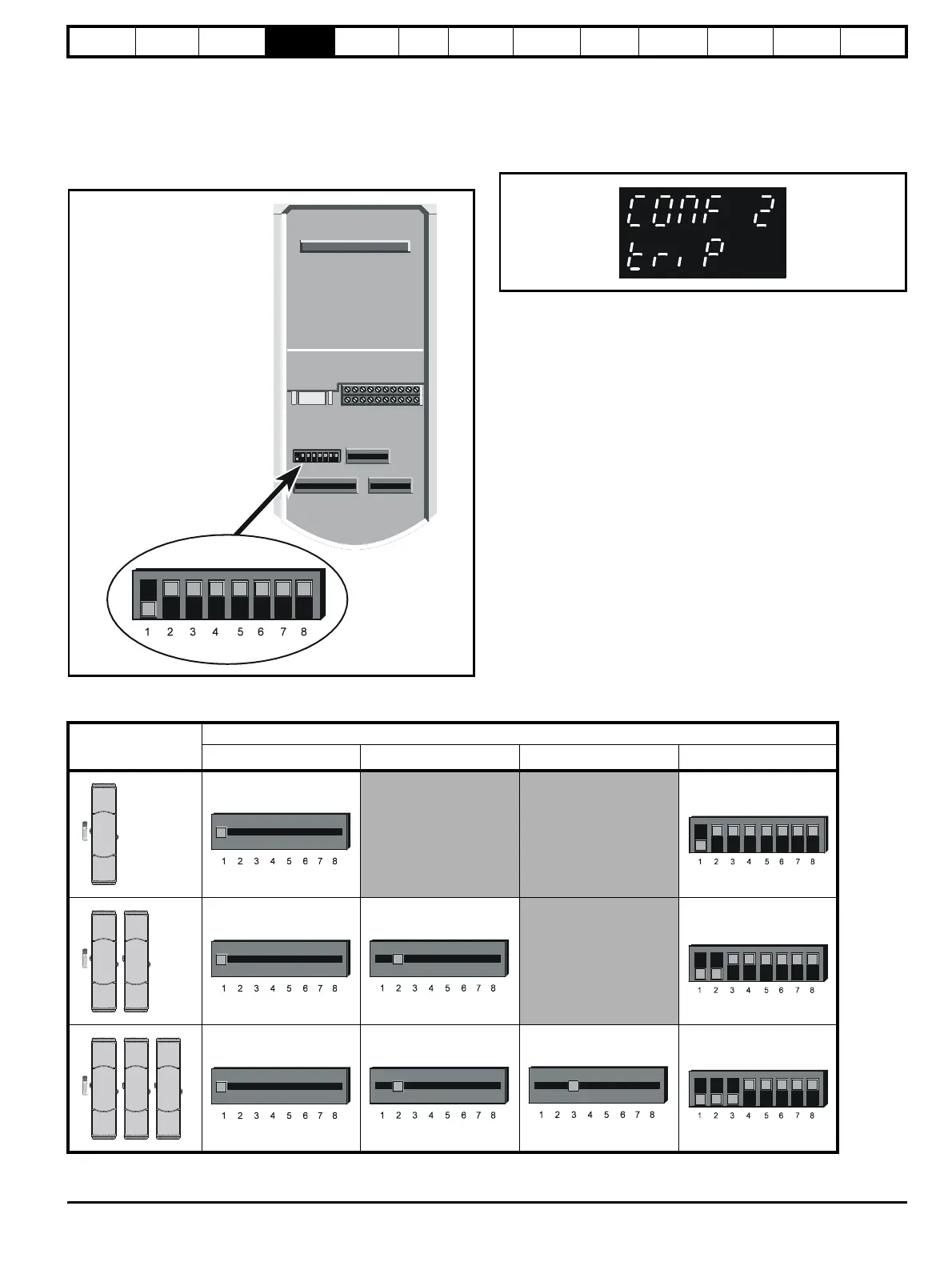

Figure 4-20 Setting the configuration switches in the control
module
4.11.3 Saving the configuration
When the drive is first powered-up, and the system contains more than
one power module (or the number of power modules has been
changed), the control module display will indicate as shown in Figure 4-
21.
Figure 4-21 Control module display
(The number displayed corresponds to the number power modules.)
A parameter save must be performed so that the drive will not trip next
time the drive is powered up. To perform a save refer to section
5.8 Saving parameters on page 61.
Table 4-6 Example configuration settings
System
Configuration switches
1
st
Power module 2
nd
Power module 3
rd
Power module
Control module
One control module can be used to control up to eight power modules.
