Service manual OEB/OES/OGB/OGS

AS/11-2011 6_03e_Update of Software EasyTouch-control_b.doc

Page 2 / 5

Instructions:

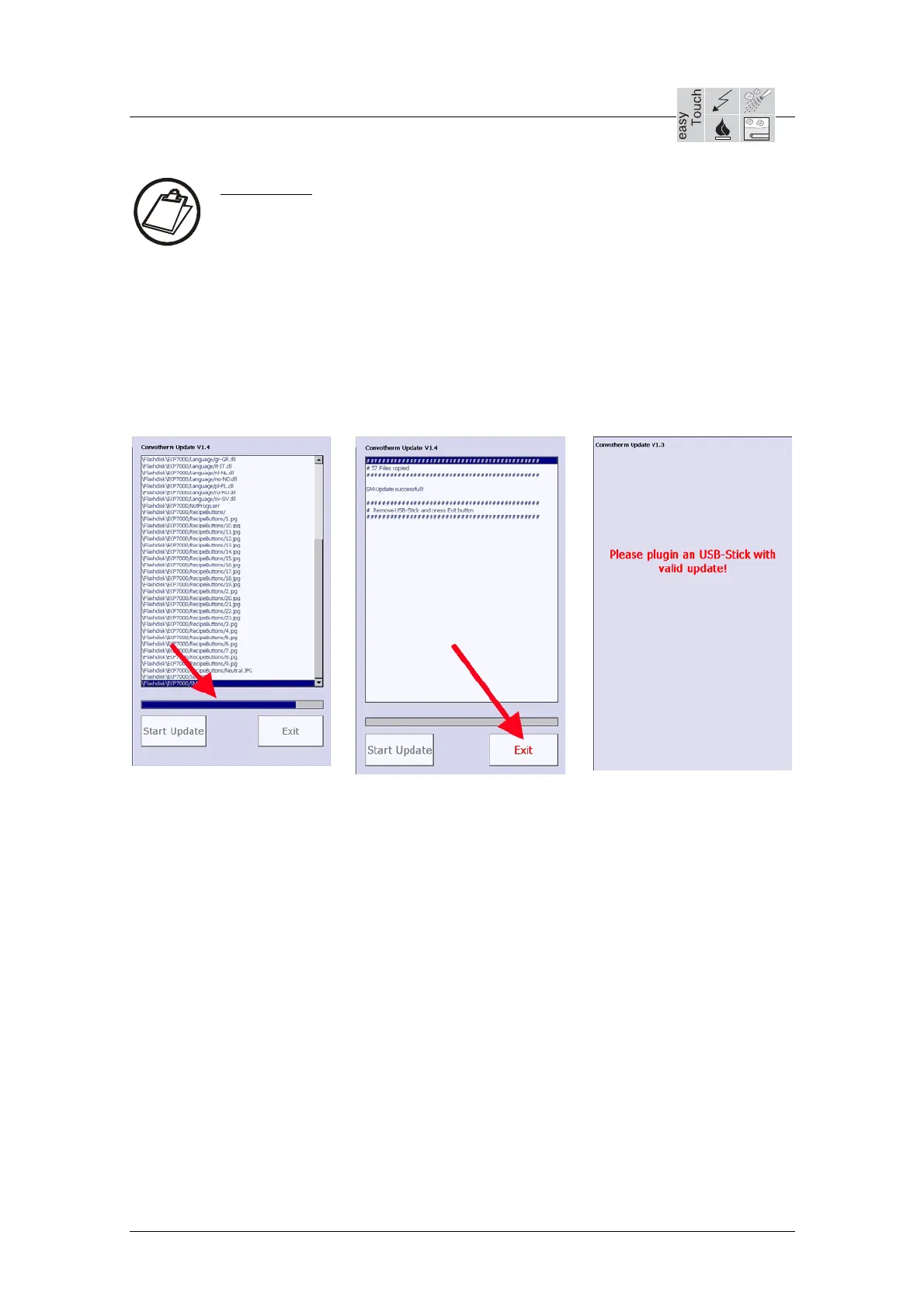

5. Please wait until the update process is completely finished. While this is taking

place the grey bar (see red arrow in Screenshot 2) completely fills up to 2

times!

6. Then remove the USB stick and click on “Exit” (see Screenshot 3).

7. If the combi steamer starts as usual in the operating mode, perform another

update of the control module (see point 6.3.3).

8. If the following screen appears (see screenshot 4) repeat steps 2 to 7.

Screenshot 4

Screenshot 2

Screenshot 3
