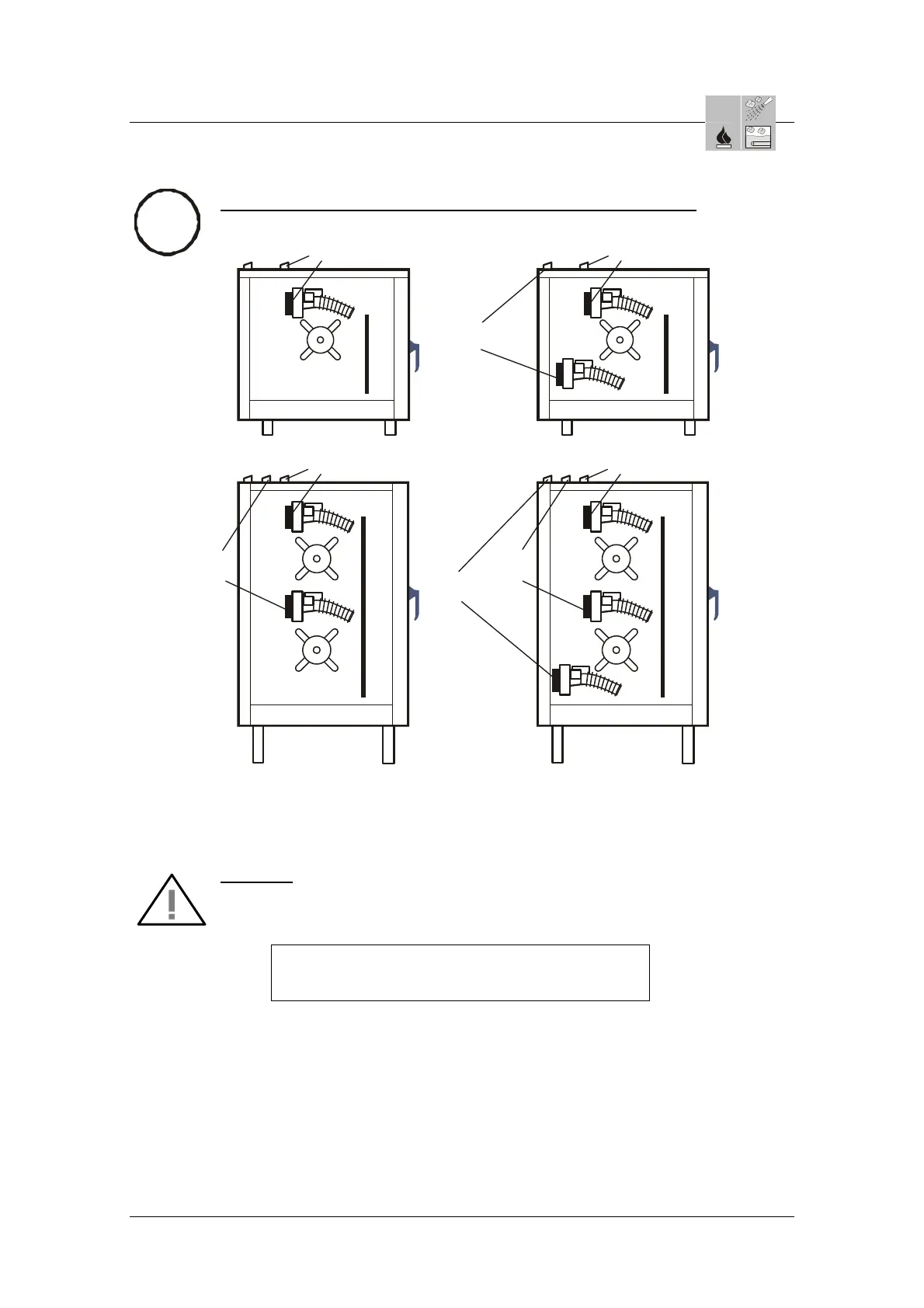

Information: Arrangement for the burner and gas exhaust valve
HL1
DE
HL1
HL1
HL2
HL1
HL2
DE
OGS
6.10
i
6.20
10.10
10.20
12.20
OGB
6.10
6.20
10.10
10.20
12.20
OGS
20.10
20.20
OGB
20.10
20.20
Attention:
 The sequence of the burner adjustment on units with more than one burner
must absolutely be adhered to.
HL1  HL2*  DE*
* = if available
