6.25.2 Step by Step - Instructions

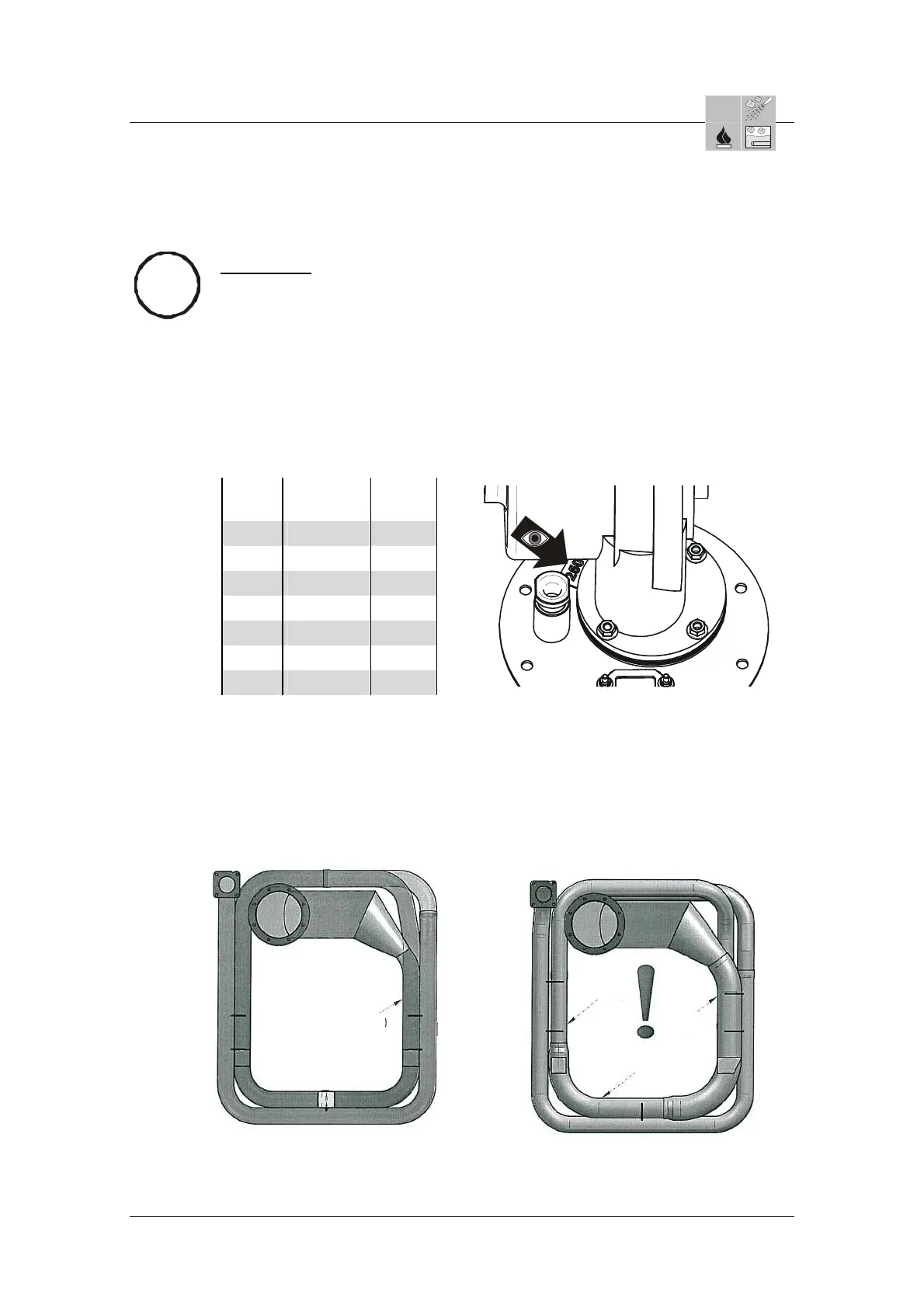

Step 1: Check air panel
i
Information:
 On the burner flange behind the blower, you will find a number code = Ø the air
panel. This number code must correspond with the information on Chart 1.
 The number code can be read when you look along the blower onto the air
panel/burner flange.
 The numbers cannot be reversed.
 If the number code does not correspond with Chart 1, then please notify your
CONVOTHERM Customer service.
Chart 1: Number code air panel
Page 3 / 12
HL1
+
HL2
DE
6.10 200 170
6.20 250 210
10.10 250/225* 210
10.20 270 260
12.20 270 260
20.10 250/225* 260
20.20 270 260
* = depending on type of heat
exchan
g
er

On units 10.10 and 20.10 check, whether the type of the heat exchanger is
corresponding to the number code of the air panel.
Air panel 250 Air panel 225
 40  60
 50

40
AS/11-2011 / Part No.: 7016396 6_25e_Readjusting the Gas valves_d
