Convotherm OGS 6.10 Service Handbook

Service Handbook OGS/OGB

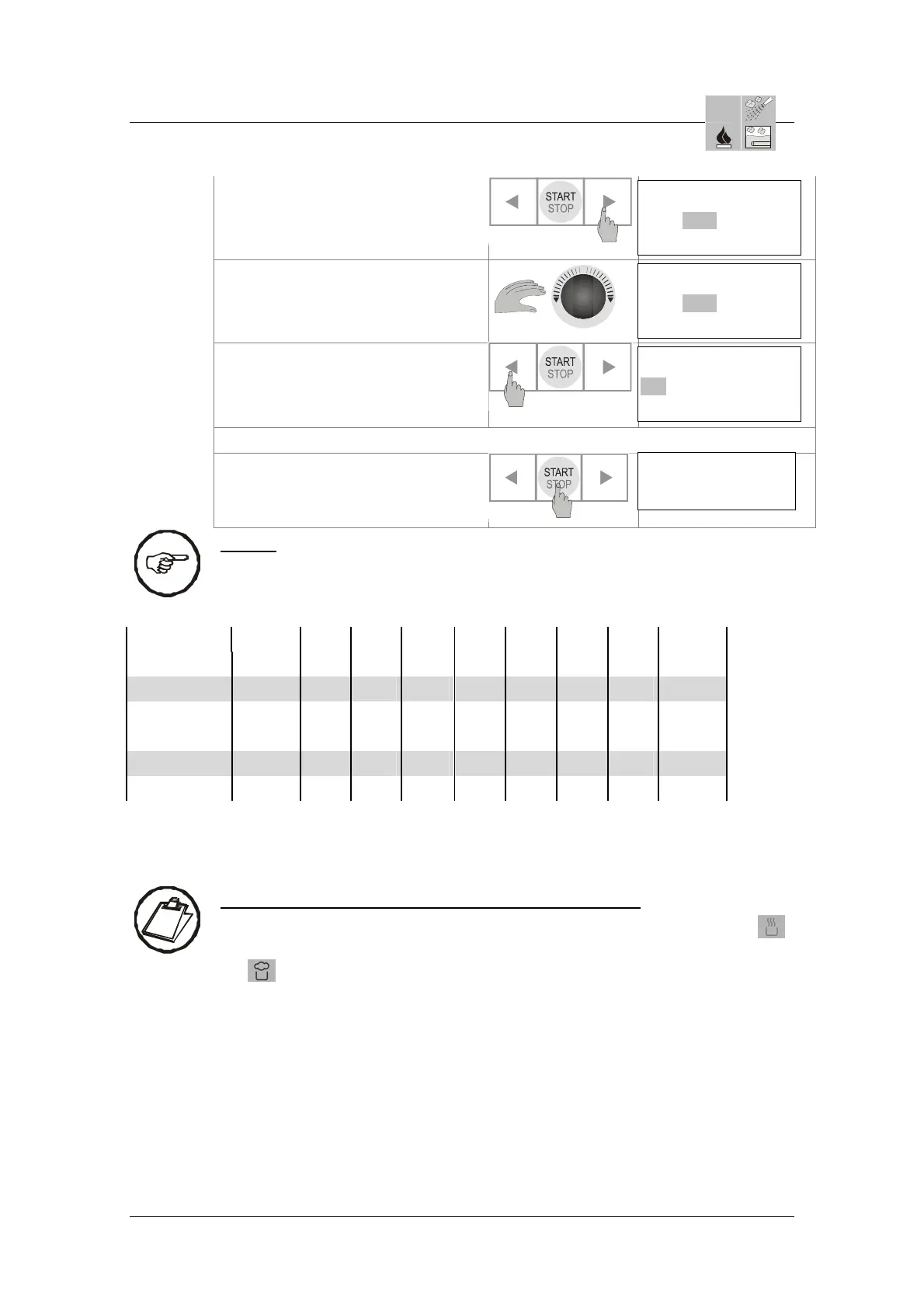

Page 6 / 12
3. Spring right with arrow key
4. Using selector knob, adjust
spe
ed see Chart 3: "Speed"
5. Confirm with „Arrow left“ key
For adjusting the Min and Max speed, repeat points 2. – 5.
6. Press Stop key to leave the
Service programme
c27 [ 6100 ] HL Nmax
c28 [ 3700 ] HL Nstart
c29 [ 005 ] HL-Safe.
c27 [ 6100 ] HL Nmax
c28 [ 3700 ] HL Nstart
c29 [ 005 ] HL-Safe.
c27 [ 6100 ] HL Nmax
c28 [ 4500 ] HL Nstart
c29 [ 005 ] HL-Safe.
Advice:
The set speed START and MIN are not changed any more during the adjustment.
Chart 3: Speed (Start speed = Start)
6.10 6.20 10.10 10.20 12.20 20.10 20.20
HL MIN c26
4800 2800 2800 2800 2800 2800 2800
HL MAX c27
5500 5600 5600 6000 6500 5600 6000
HL START c28
4800 4200 4200 4500 4500 4200 4500
DE MIN c37
4500 4700 3000 3200 3200 3200 3200
DE MAX c38
5400 4900 4900 6000 7000 6000 7000
DE START c39
4500 2800 3000 3200 3200 3200 3200
Step 7: Start burner and measure gas exhaust values at
MAX speed
Instructions: Start unit and measure gas exhaust values
 When adjusting the convection burners  Start the Convection programme ;
When adjusting the steam generator burners  Start the Steam programme
.
 The burner blower runs at the Start speed. After successful ignition of the
burner, it is automatically increased to MAX speed.
AS/11-2011 / Part No.: 7016396 6_25e_Readjusting the Gas valves_d
