Coriant 8600 - USB Port; Console Port

2 Line Unit (LU1)
2.5.2 USB Port
This port is for future use and will become operational in a future software release.
The USB port is not currently supported.
2.5.3 Console Port
The asynchronous serial interface is according to [EIA/TIA-232-E]. The baud rate
for this interface
is 38400 bps. The connecto r type is RJ-45, female, with 8 pins.

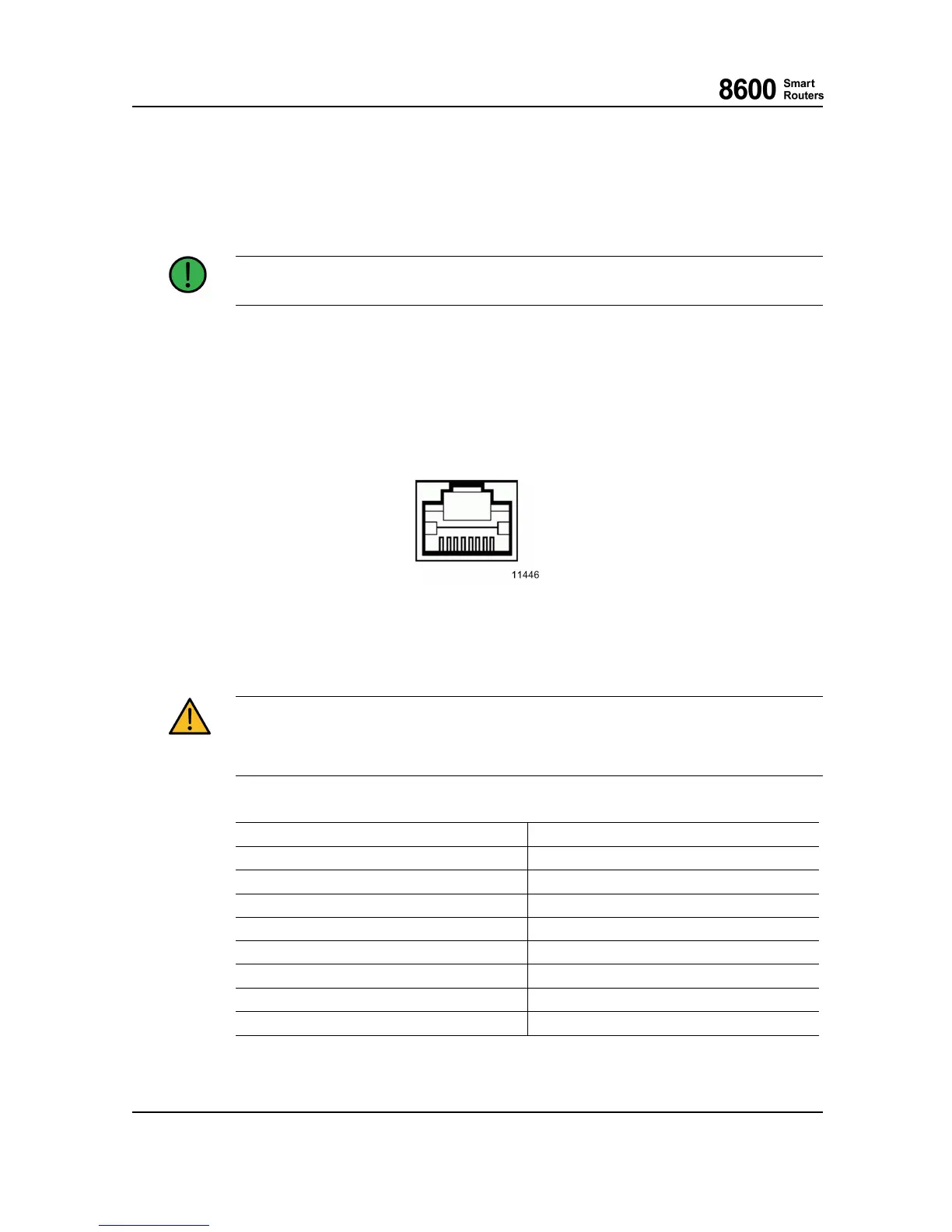

Fig. 8 RJ-45 Connec tor
The port must be connected to the same type of port with proper cable, otherwise network
element functionality may be affected or physical dama ge may occur. Long cables should be
terminated properly to reduce interference.
RJ-45 Female CLI Connector Pi
nMap
Pin
Signal Name
1
Do not connect
2
Not connected
3
TxD
4 GND
5 Do not connect
6
RxD
7
Not connected
8
Not connected
8600 Smart Rout ers 76.8670-40128B
8665 Smart Router FP7.0 Reference Manual © 2015 Coriant.
36
