3SwitchUnit(SU1)
• Memory access (DRAMs, FLASH memories).
• Performance of high speed data links with other cards.
The SU1 has a watchdog to reset itself in case of a fatal failure in the CPU subsystem.
3.4 Front Panel

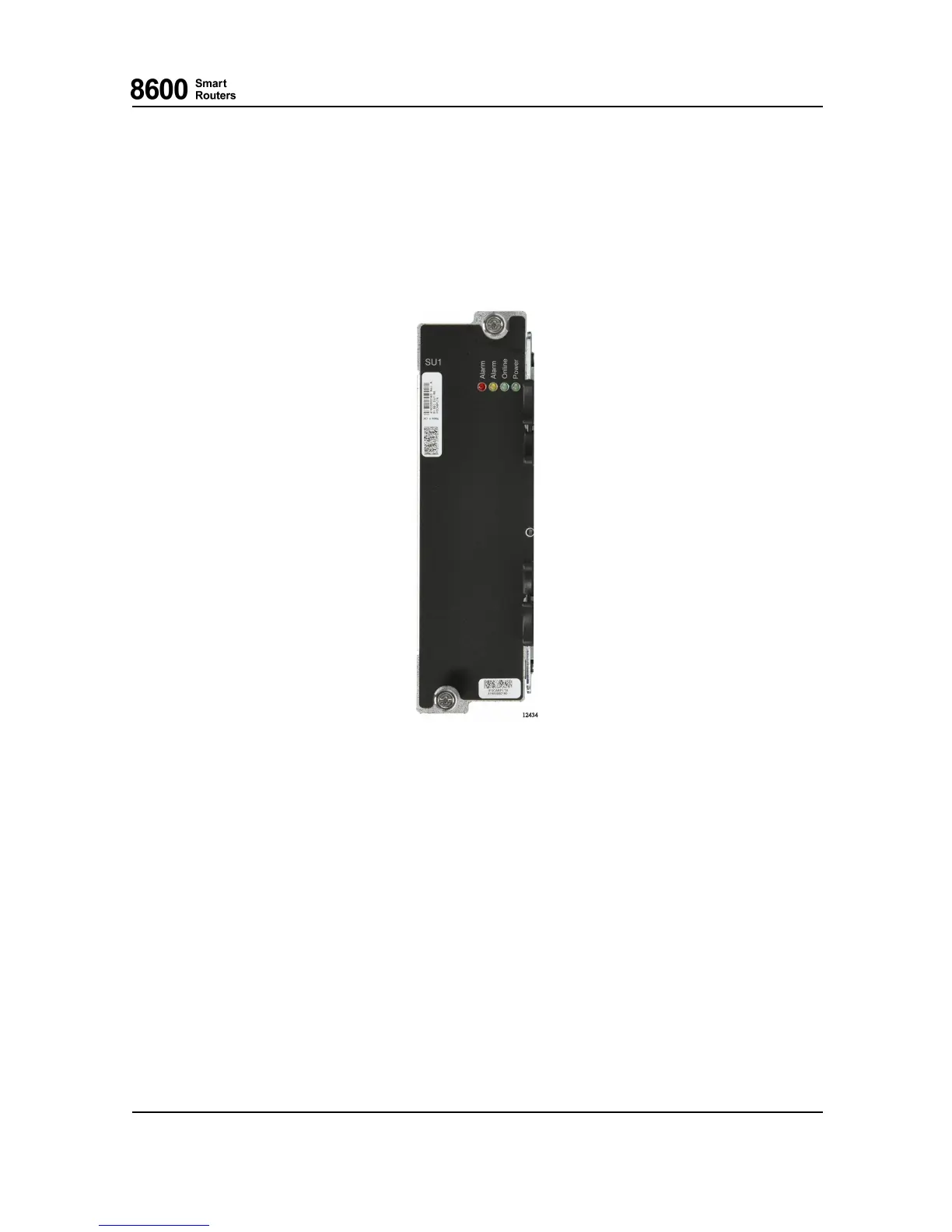

Fig. 12 SU1 Front Panel
3.4.1 SU1 Status LEDs
There are four LEDs to indicate the SU1 status and one for the power OK status.
76.8670-40128B 8600 Smart Rou ters
© 2015 Coriant. 8665 Smart Router FP7.0 Reference Manual
43
