Corken D791 - Page 31

Beltguard
Inlet
(2″ weld flange)
Crankcase
oil drain
24 (60.96)
7
(17.78)
3-9/16
(9.13)
57-1/4
(145.34)
49-5/8
126.10
31
(78.74)
5-3/4
(14.61)
1-1/2
(3.81)
2
(5.08)
Pressure gauge
(Inlet)
Suction valve unloaders
(optional)
5-1/2
(13.92)
5-1/2
(13.92)
Inlet
(2″ weld flange)
Pressure gauge
(outlet)
Outlet
(2″ weld flange)
Purge connections
(1/4″)
Crankcase heater
(optional)
Electric motor driver
Low oil pressure switch
(optional)
18 (45.72)
4
(10.21)
10 (25.40)
56 (142.24)
Adjustable driver slide base
Use six 3/4″
anchor bolts
6
(15.24)
36 (91.44)
Purge
connections
(1/4″)
22-1/2 (57.15)
3/4
(1.91)
7
(17.78)
Suction valve unloaders
(optional)

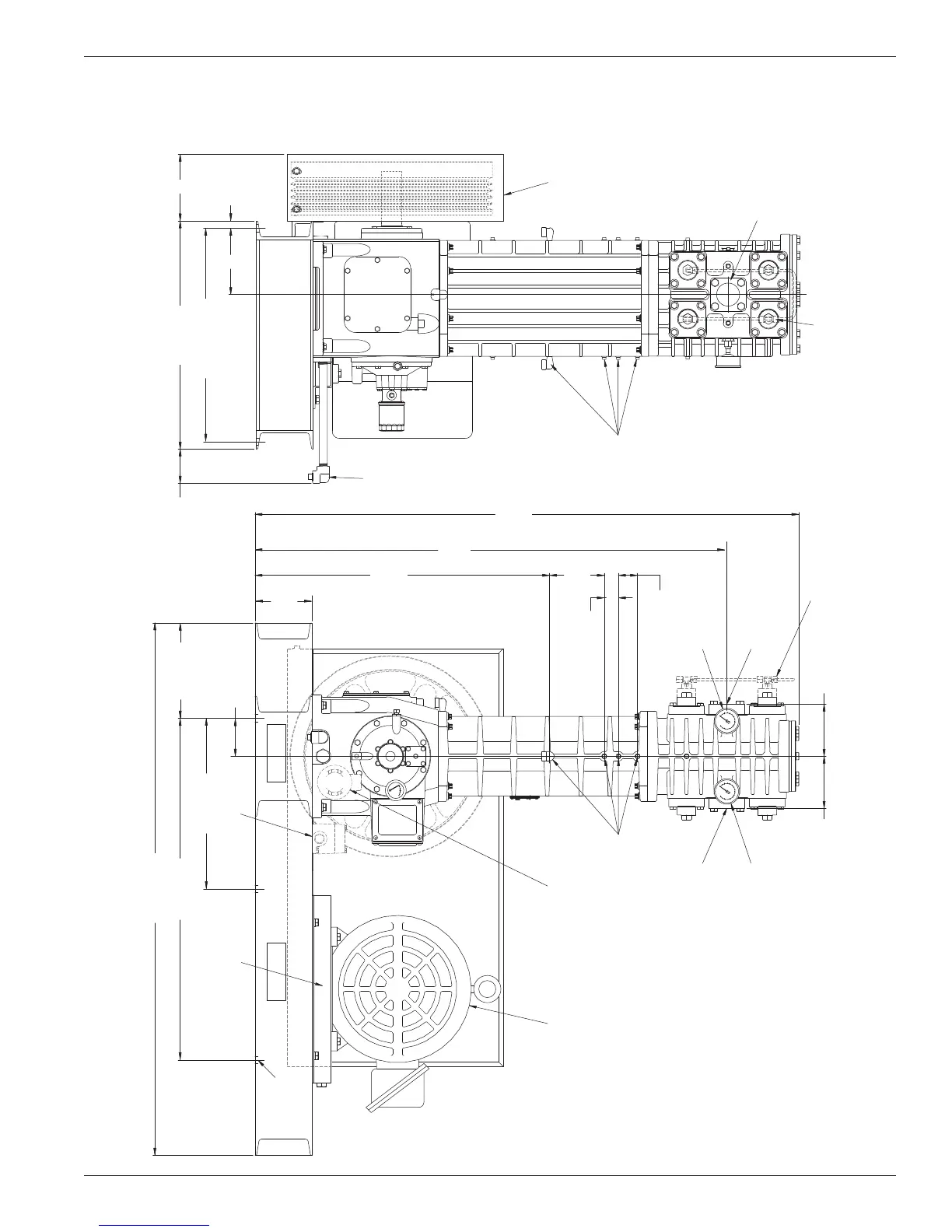

Appendix C—Outline Dimensions
Model T891 (Single Stage) with 103 Mounting
Inches (Centimeters)
31
