Corken D791 - Page 35

36
37
40
38
39
42
41
42
37
40
38
39
36
41
49
48
47
46
45
44
43
37
51
48
47
46
45
50
43
O-ring Code
A Buna-N
B Neoprene
®f
D Viton
®f
E PTFE
K Kalrez
®f
Ref
No.
Part No. Description
1. 3665 Adjusting screw nut
2. 2-127
a
O-ring
3. 3867 Cylinder cap
4. 2-250
a
O-ring
5. 3663 Adjusting cup
6. 2-248
a
O-ring
7. 3876 Cylinder head (6")
8. 2-258 O-ring
9. 7001-050-NC150A
Bolt (1/2–13x1-1/2" hex hd gr 5)(Torque
to 65 ft•lbs)
10. 3877 Cylinder head (3-1/4")
11. 2-236
a
O-ring
12. 2598-1
c
Unloader cap
13. 2-031
a
O-ring
14. 3696
c
Unloader piston (6")
14-1. 2618
c
Unloader piston (3-1/4")
15. 2715 Holddown screw
16. 7001-043-NC150A
Bolt (7/16–14x1-1/2" hex hd)(Torque to
37 ft•lbs)
17. 1764 Valve cover plate
18. 2-235
a
O-ring
19. 3570-1 Valve cage
20. 3694
c
Actuator
21. 3695
c
Spring
22. 3694-X Unloader assembly (6")
23. 3732-X Suction valve assembly (6")
24. 2114
b
Valve gasket
25. 2714-1 Valve cap
26. 3733-X Discharge valve assembly (6")
27. 2205 Valve cover plate
28. 2-143
a
O-ring
29. 3569 Valve cage
30. 3689
c
Actuator
Ref
No.
Part No. Description
31. 3690
c
Spring
32. 3689-X Unloader assembly (3-1/4")
33. 2438-X Suction valve assembly (3-1/4")
34. 1418-2
b
Valve gasket
35. 2439-X Discharge valve assembly (3-1/4")
36. 3827 Valve seat (6")
37. 3828 Stud
38. 3830
d
Outer valve plate
39. 3831
d
Inner valve plate
40. 3829
d
Spring
41. 3805-X1 Valve repair kit
42. 3826 Valve bumper (6")
43. 2446 Bolt
44. 2438 Suction valve seat (3-1/4")
45. 2442 Valve plate
46. 2445
e
Spacer (two per valve)
47. 3355 Washer
48. 1407 Spring
49. 2440 Suction valve bumper (3-1/4")
50. 2441 Discharge valve bumper (3-1/4")
51. 2439 Discharge valve seat (3-1/4")
52. 1910
c
Bolt
53. 2619-X
c
Unloader piston seal assembly
54. 2857
c
Unloader piston cap
55. 2858
c
Gasket
a
_ denotes O-ring code. See O-ring chart
for details.
b
Included with valve assembly.
c
Included with unloader assembly.
d
Included with valve repair kit.
e
Install spacers back to back.
f
Registered trademark of the DuPont
company.

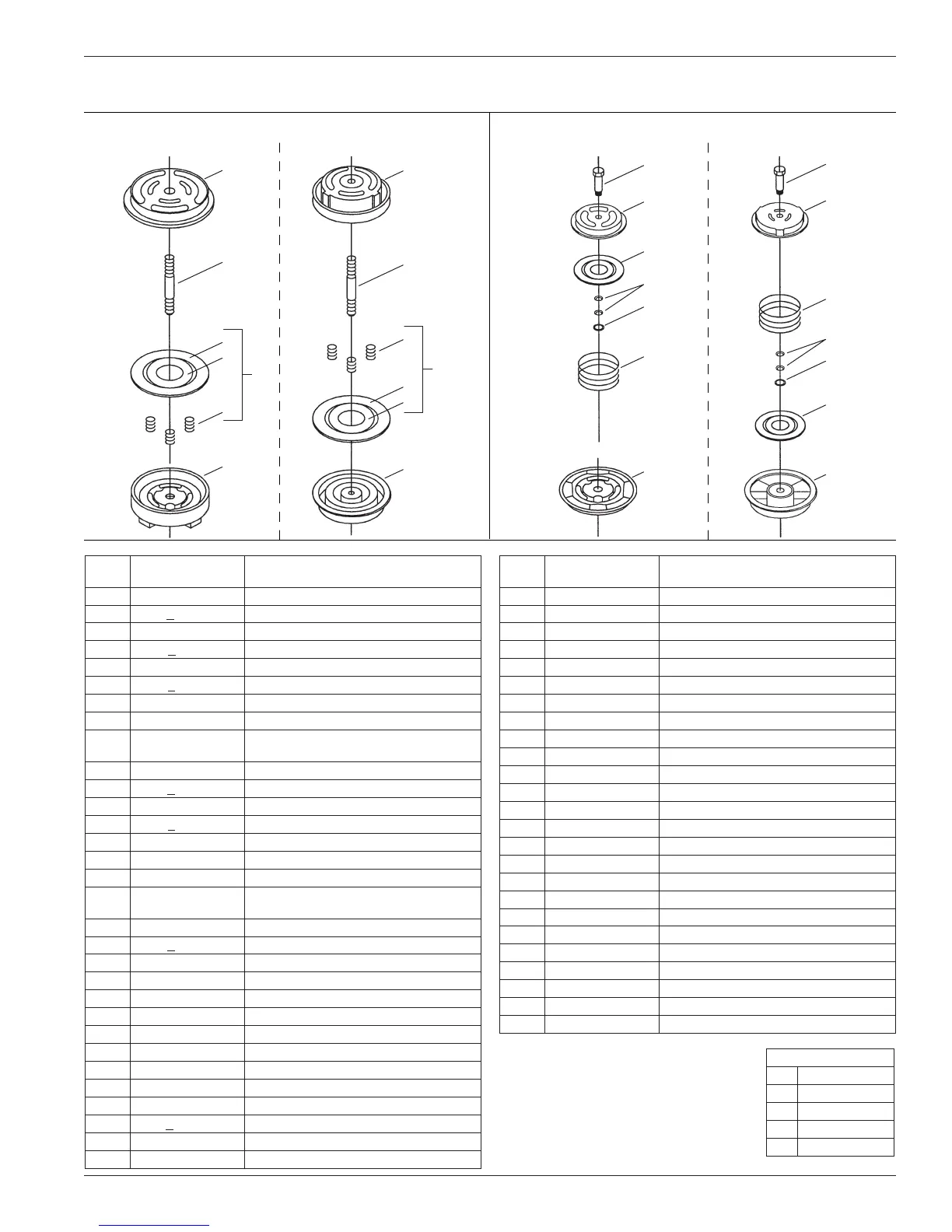

First Stage Valve Assembly (6")
Suction Discharge
Second Stage Valve Assembly (3-1/4")
Suction Discharge
Appendix E—D791 and T791 Head and Valve Holddown Assembly Details
35
