Corken D791 - Page 44

17
17
12
12
13
14
15
16
Packing barrels
and cartridges
(For parts details,
see D791 packing
on previous pages).
Ref
No.
Part No. Description Qty
1. 3866 Cylinder 1
2. 3442 Pipe plug (1/4" NPT) 10
3. 1054 Drain valve (lubricated models) 1
4. 1071 Nipple (1/4" x close) 1
5. 2-258_
a
O-ring for cylinder (1st stage) 1
5-1. 2-236_
a
O-ring for cylinder (2nd stage) 1
6. 7001-050NC175A
Bolt (1/2" - 13 x 1-3/4" hex head
gr 5)
16
7. 3793-2S Flange (inlet/outlet) 4
8. 2-231_
a
O-ring for ange 4
9. 3253 Roll pin 1
10. 2405-1 Crosshead guide 1
11. 1064 Elbow (1/4" NPT) 1
12. 7005-050175A Bolt (1/2" 13 x 1-3/4" ferry head) 16
13. 1761 Gasket (crankcase) 1
14. 1760 Gasket (inspection cover) 1
15. 1721 Inspection cover 1
16. 7012-010NC025B Bolt (10 - 24 x 1/4" Phillips hd.) 10
17. 2-231_
a
O-ring 2
Crosshead Guide Bill of Materials

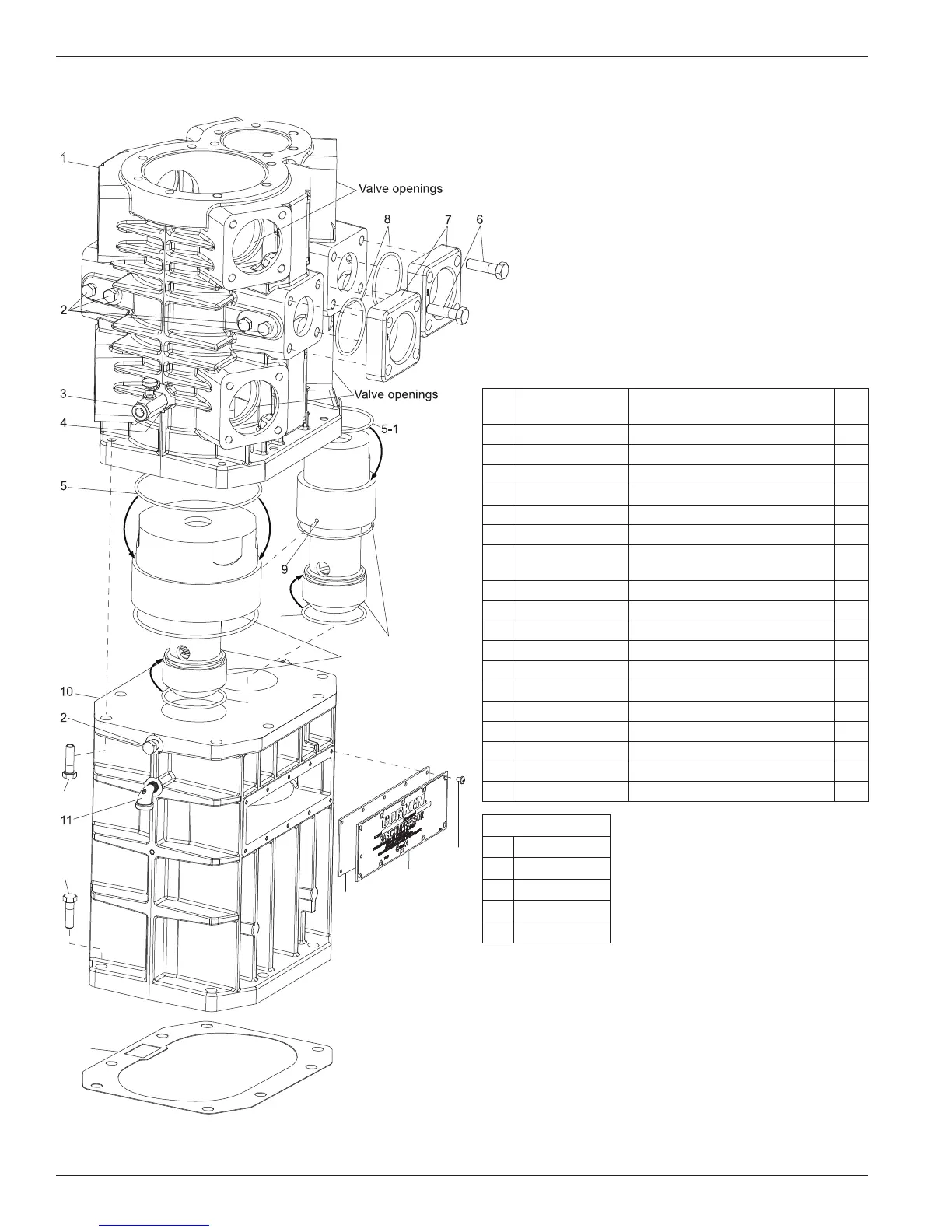

Appendix E—D791 Crosshead Guide Assembly Details
a
_ denotes O-ring code. See O-ring chart above for details.
b
Registered trademark of the DuPont company.
CAUTION: Always relieve pressure in the unit before attempting
any repairs.
NOTE:
Packing barrel installation:
1. Use packing installation cone #3905 on the piston rod.
2. Insert small barrel first, use finger holes to align slinger ring on to
the rod. Slip the packing barrel into place.
3. Align pin with slot in large packing barrel.
4. Slip large packing barrel in place.
O-ring Code
A Buna-N
B Neoprene
®b
D Viton
®b
E PTFE
K Kalrez
®b
44
