IntelliCarb Drop-In Ice Cooled Installation Guide
Publication Number: 630460204INS - 12 - © 2003-2017, Cornelius Inc.
Bulk CO2 Tank
Connect bulk CO2 tank to the secondary regulator mounted on the side of BIB rack. Do not use primary reg-
ulator with bulk co2 tanks.
1522-2323-3023 DROP-IN
Conversion Instructions for Valves Connected into Manifold
!
WARNING:
Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all
power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
!
WARNING:
Water and CO2 to the system must be turned off and the system depressurized prior to performing this service.
Failure to comply could result in serious injury, death or damage to the equipment.
1. Remove the cup rest, front panel, and drip tray.
2. Remove insulation pad, 2 screws, and bracket (as shown below).
3. Pull out the plug fitting and tubing with barb fitting of the desired valve for conversion.
4. Place tubing with barb fitting into desired outlet on the manifold.
5. Replace plug fitting in open outlet.
6. Reassemble bracket, 2 screws, and insulation pad.
7. Reassemble drip tray, front panel, and cup rest.

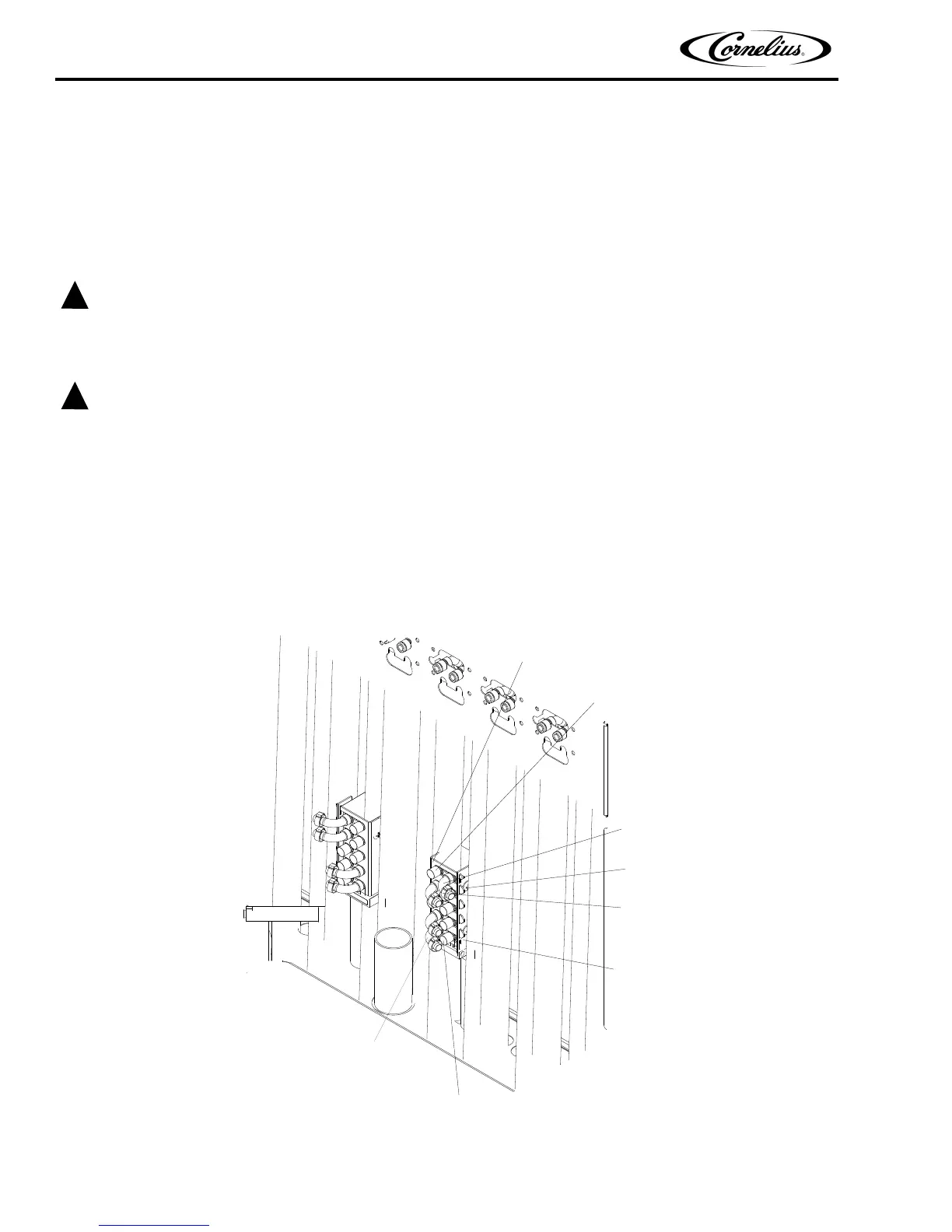

Figure 10.
PLUG FITTING
BRACKET
TUBING WITH
BARB FITTING
SCREW
REAR CONNECTION
NON-CARB WATER
OPTION
FRONT CONNECTION
CARBONATED WATER
OPTION
MANIFOLD
OETIKER CLAMP
