IntelliCarb Drop-In Ice Cooled Installation Guide
© 2003-2017, Cornelius Inc. - 5 - Publication Number: 630460204INS
SYSTEM OVERVIEW
DROP-IN PRODUCT OVERVIEW
The Drop-In IntelliCarb consists of the following:
• Front inlet fittings
• 75 lbs., 80 lbs., 100 lbs., and 130 lbs. capacity ice bin
• Foamed polyurethane insulation
• Key lock switch
• 9 3/4 inch cup clearance
• Extended drip-tray for cup staging, removable for cleaning
• High capacity 11/18 cold plate, 5-2-1 configuration
• All fittings are 3/8 inch
• Supports UF-1 fast flow (3.0 oz./sec.), UF-1 Ultra flow (4.5 oz./sec.), and UFB 2.0 - 4.0 valves
• Improved ability to clean outlet line area
• Lighted and non-lighted merchandiser options
• Optional cabinet stand for free standing installations.

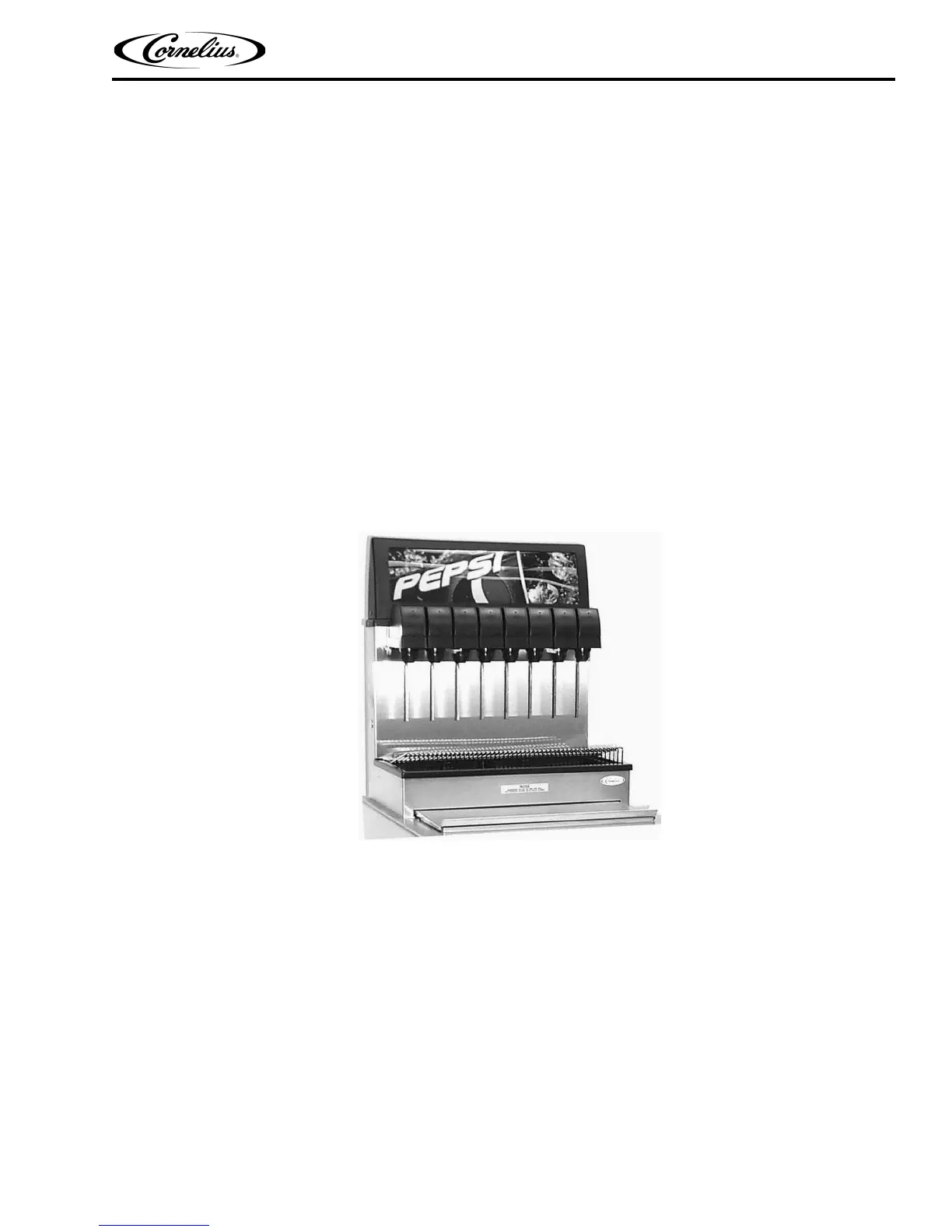

Figure 1. Drop-In Unit
To Next Page
