Removal and Installation of Carbonator

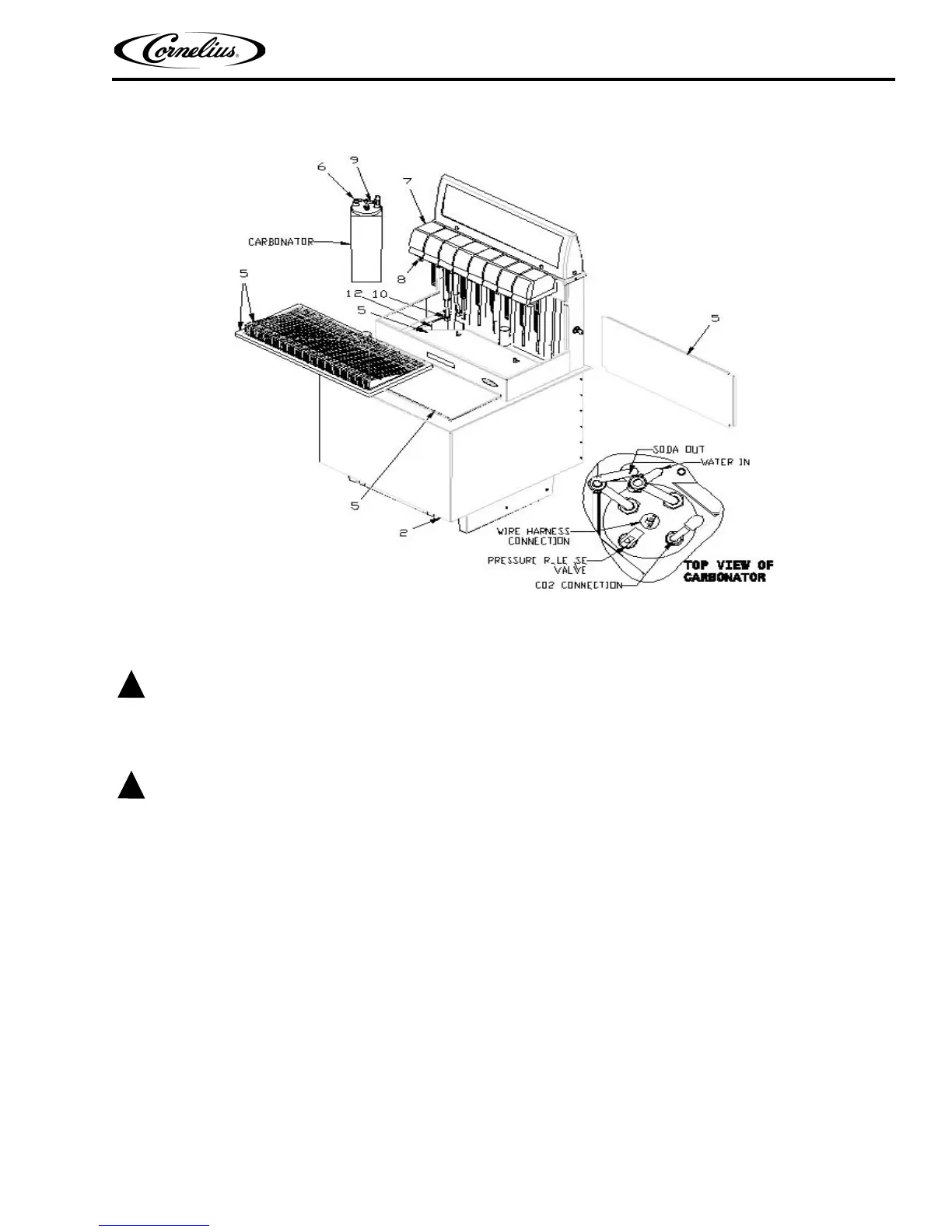

Figure 20.
Carbonator Removal
!
WARNING:
Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all
power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
!
WARNING:
Water and CO2 to the system must be turned off and the system depressurized prior to performing this service.
Failure to comply could result in serious injury, death or damage to the equipment.
1. Remove ice from bin.
2. Disconnect the power to the unit and to the pump and motor.
3. Shut off the CO
2 supply that is connected to the Carbonator.
4. Shut off the water supply that is connected to the pump and motor.
5. Remove Cup Rest, Splash Panel, Drip Tray, Sliding Lid and Sanitary Plate.
6. Relieve pressure in the system by flipping the pressure relief valve to the up position on the Carbonator.
7. Remove front cover, back cover and valve body of No. 8 (left side).
8. Remove the plug button on the left side of tower and cover hole with tape (safety).
9. Disconnect the barb fitting for the CO
2 line on Carbonator.
10. Disconnect the barb fitting on the Carbonator lines to the cold plate tubes.
11. Disconnect probe wire from pump and motor harness.
12. Cut the silicone seal with putty knife around Carbonator a minimum of 1.5” deep and remove.
