IntelliCarb Drop-In Ice Cooled Installation Guide
Publication Number: 630460204INS - 20 - © 2003-2017, Cornelius Inc.
ADJUST WATER-TO-SYRUP RATIO
Figure 15.
1. Remove valve cover and install syrup separator over the diffuser and through the nozzle.
2. Hold cup under valve and dispense beverage for a specific time (i.e. 2 seconds).
NOTE: Water and syrup must be cold before checking ratios.
3. Adjust carbonated water flow to the desired rate (such as 90 to 110 ml (3 to 3.75 oz.) per second).
4. Turn the flow adjuster 1/4 of a turn at a time and recheck the flow. To increase reading turn clockwise.
5. Set syrup flow adjuster to get the desired ratio.
6. Test the valve and adjust until a consistent ratio is delivered three consecutive times.
7. Repeat procedure for other valves.
Valve Type
Manufacturer
Maximum Operating
Pressure
Portion Control
Cornelius 130 psi
Flowmatic 100 psi
Pushbutton
Cornelius 130 psi
Flowmatic 100 psi
Lever Type
Cornelius 130 psi
Flowmatic 100 psi
Autofill Lever
Cornelius 130 psi
Flowmatic 100 psi
Non-Electric
Cornelius 130 psi

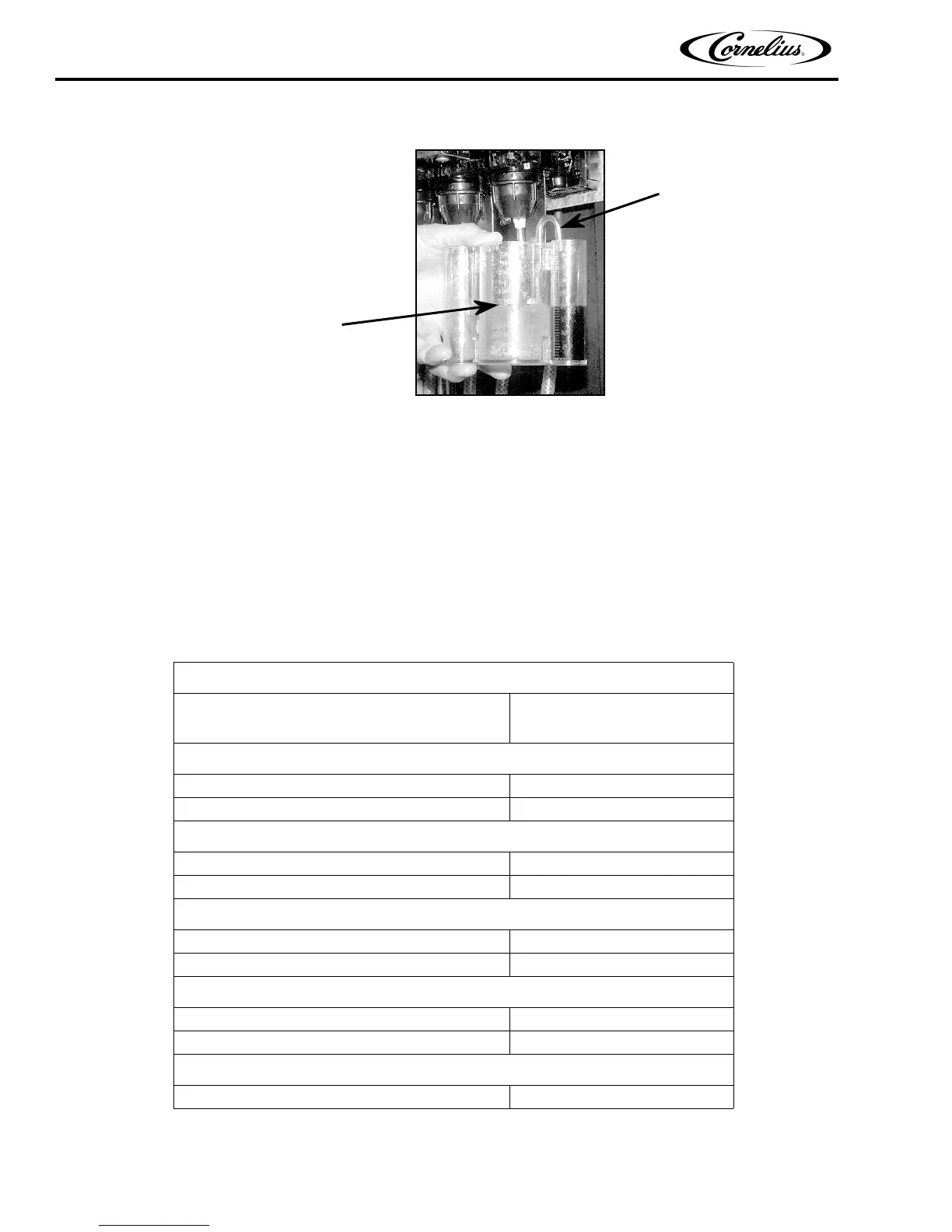

Separator
Water-To-Syrup
ratio cup
