IntelliCarb Drop-In Ice Cooled Installation Guide
Publication Number: 630460204INS - 30 - © 2003-2017, Cornelius Inc.

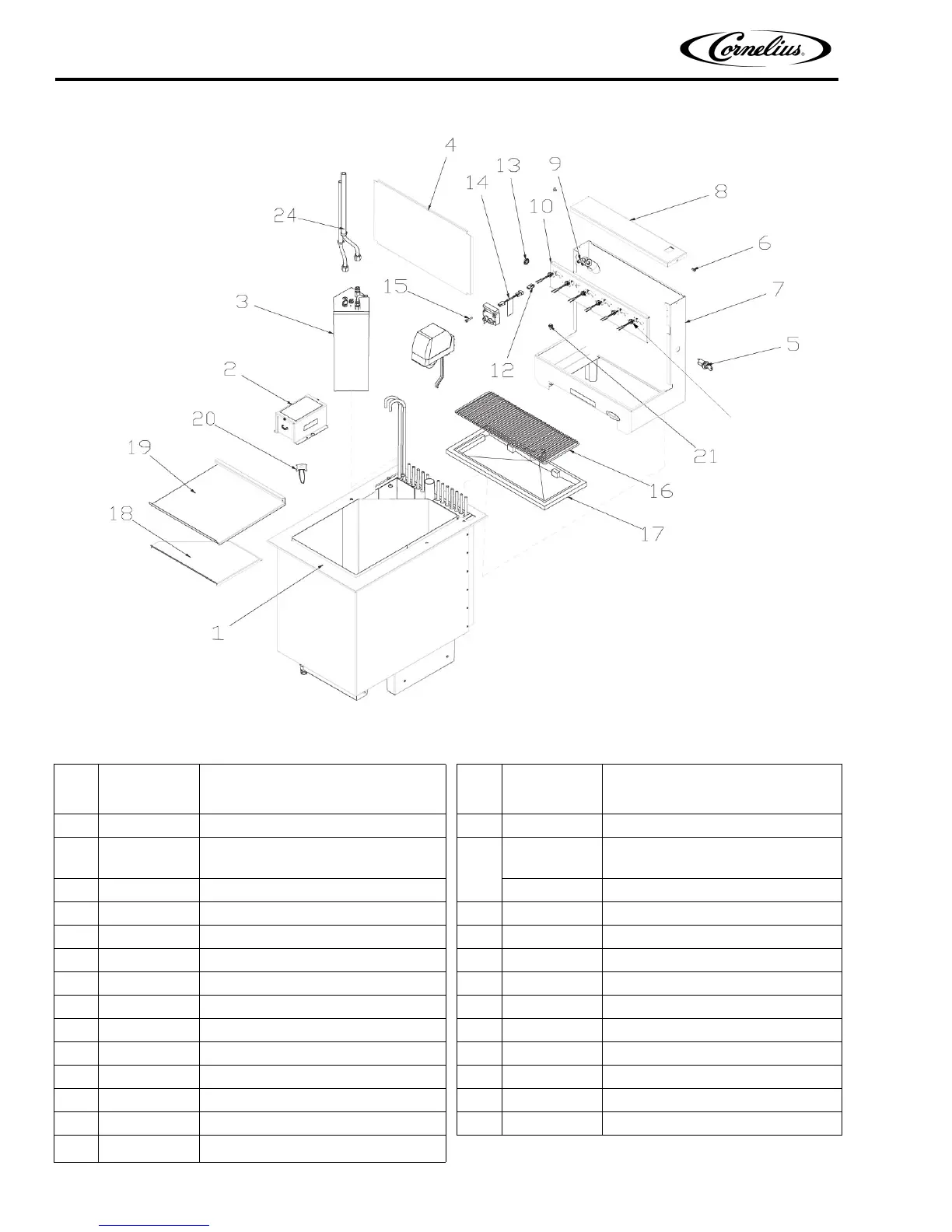

CB 1522 INTELLICARB STAINLESS TOWER 75LB WITH 12 X 4 CARBONATOR
Figure 23.
Item
No.
Part No. Name
Item
No.
Part No. Name
1 630201449 Frame Dec CB1522 15 318308000 Screw TR 10-32 PAPH 32 SS HRD
2 630000601 Transfrmr 115/24 RMT 75VA
16
630200858
Cup-Rest CB1522 Opti (Opti-Fill
TM
only)
3 630001125 Tank Carb Foam Asy 4X12 167787000 Cup-Rest 1522SST STND
4 167491001 Splashguard Panl SBR TWR GE 17 630900910 Drip-Tray 18” 1522 IntelliCarb
5 163545001 Switch Key-Lock Termi 18 630001101 Plate Sanitary 75# IntelliCarb
6 161168014 Screw Ma 1032 012TR SS PH 19 630001100 Lid Sliding 1522 IntelliCarb
7 630000794 Tower W/A 18” SS BLT DN 1522 20 162865010 Strainer Corner Drain W/A
8 167244008 Cover TWR 18.5 x 3.5 SS 21 168745001 Bolt MA 1/4-20 HX 16 STZI
9 162968004 Hose 0.265F 16” 22 630300341 Harn Wire TWR 96” 2 CR 25R
10 630201568 Panel 6VLV 18” SS TWR 23 629087457 Pump Asy MTR
11 630300344 Harn Wire 6VLV 2CR 3.50SPC 24 630000952 Hose Asy Carb to C-PLT S-Tube
12 163518000 Conn Elec Mate-N-Lok 2CR 25 630201516 Lid Top 1522 Sliding (not shown)
13 168462002 Plug-Butn 1/2 Hole STNI SWC 26 164510003 Bushing Snap H 250 ID X 312
14 630300373
Harn Wire Jumper (Opti-Fill
TM
only)
