Cornelius ED175 - Electrical Testing; Syrup Flavor Setup and Connections

KIT Base Unit ED175 Installation Instructions
Publication Number: 629097525INS - 12 - © 2016, Cornelius Inc.
ELECTRICAL TESTING (SHOTS UNITS ONLY)
1. Set-up syrup flavors in Back-Room Package area, as shown in BRP set-up.

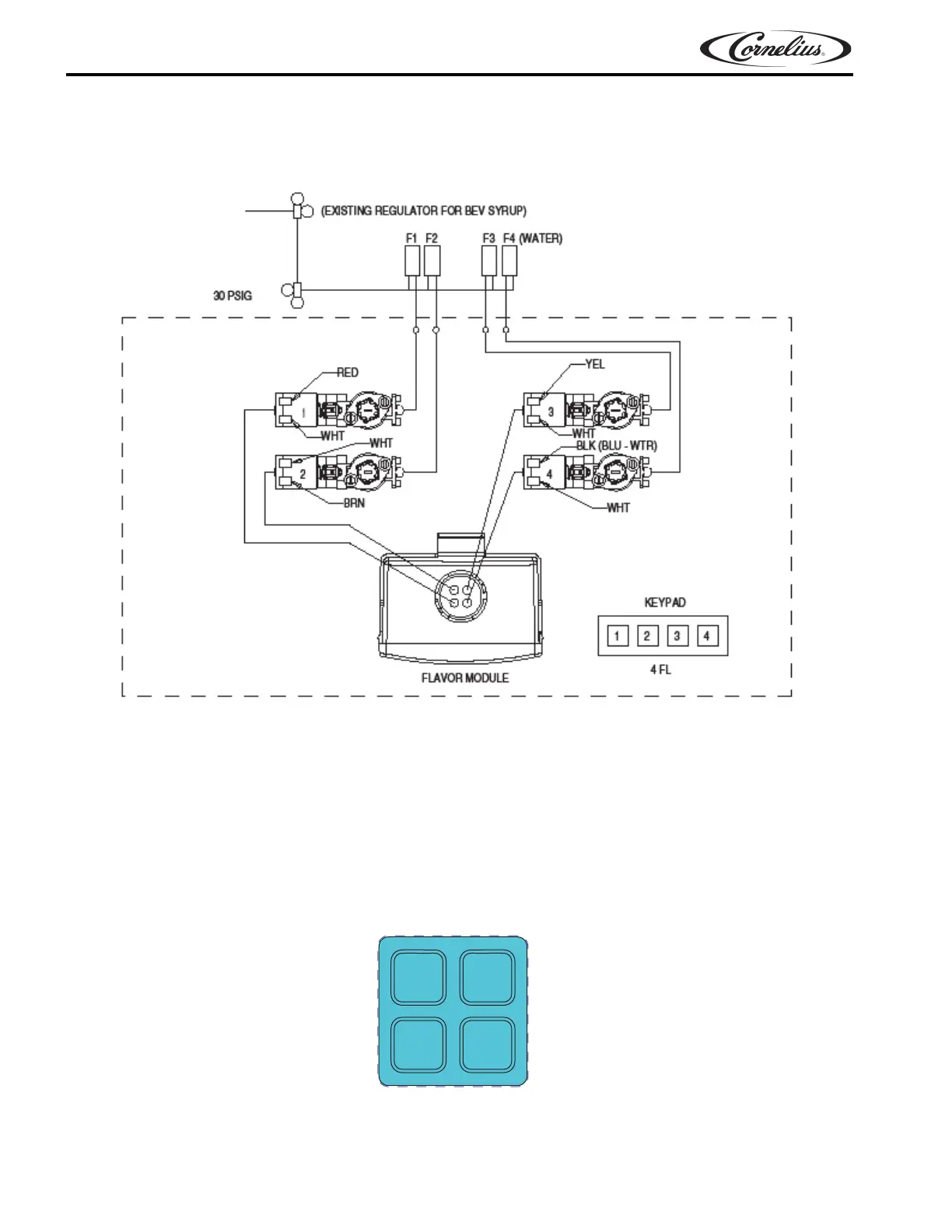

Figure 20. ED175 Plumbing/Electrical Connections
2. Connections to dispenser can proceed once the Back-Room Package items have been installed and
tubing from BRP have been run to dispenser. Make note of which flavors are hook-ups 1, 2, 3, and 4.
3. Make connections from ‘ambient’ syrup lines to valve solenoid lines at front of machine (See “Electrical
Hook-ups (Shots Units Only)” on page 7. Step 4).
4. Apply appropriate flavor decals to correspond syrup hook-ups.
NOTE: The top left button corresponds to hook-up 1 and follows right to left down for 2,3 & 4 (See Fig-
ure 21).
Figure 21.
FLAVOUR SHOT MODULE AREA
GRAPHICS AREA
1
2
34
