KIT Base Unit ED175 Installation Instructions
Publication Number: 629097525INS - 6 - © 2016, Cornelius Inc.
FLAVOR SHOT TIMING
Locate the flavor shot controller on the front of the E-box
cover.See Figure 7 for dip switch settings.
FLAVOR SHOT SETTINGS
FLAVOR SHOT DOSING INSTRUCTIONS
• Press 1 time for cup size 12-24 Ounces
• Press 2 times for cup size 25-48 Ounces
• Press 3 times for cup size 49-72 Ounces

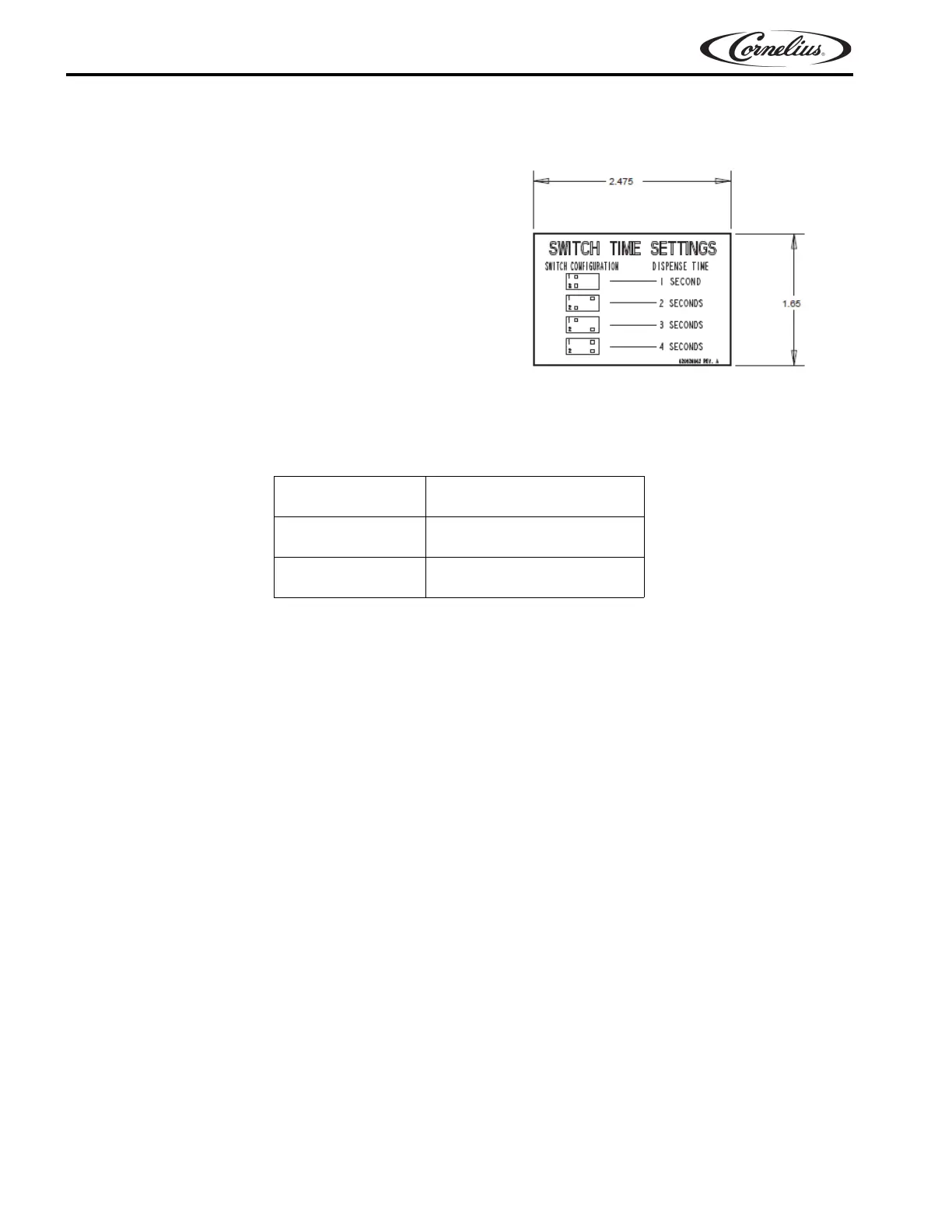

Figure 7.
Flavor Shot Time 1 Second
Flow Rate 0.3 Oz/sec (9 ml or 9 gm)
BIB Pressure 30 to 45 psig
