KIT Base Unit ED175 Installation Instructions
© 2016, Cornelius Inc. - 5 - Publication Number: 629097525INS

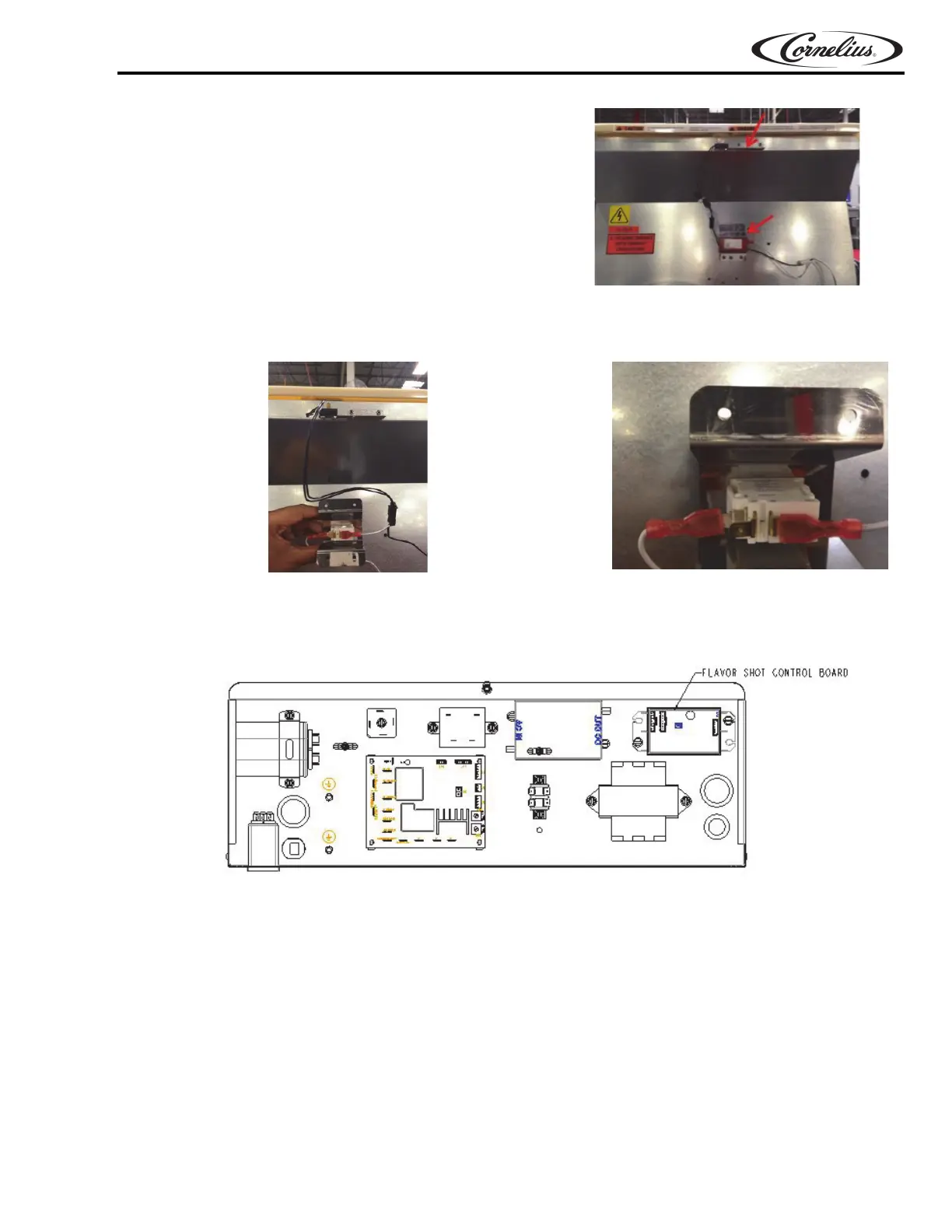

4. Install sensor bracket with 1/8" rivets, included in this
kit and connect interlock harness to reed switch, see
Figure 4.
Figure 4.
5. Connect interlock harness to door switch as shown in Figure 5A & Figure 5B. Install door switch bracket with
1/8" rivets, included in this kit.
Figure 5A. Figure 5B.
NOTE: Continue with steps 6 through 9 for shots units only.
6. Install the Flavor shots Control board with #8 screws, provided in Flavor shots KIT, as shown in Figure 6.
Figure 6.
7. Apply ‘Switch time settings’ on the inside of the electrical box cover. Close and secure electrical box
cover.See Figure 7 for switch time setting.
8. Remove lower splash panel.
9. Remove upper and lower portion of ice chute cover (use 7/16" socket driver).
NOTE: Do not loose washers secured behind the nuts.
