Manual Installation Conversion Kit 4.1 To 4.2
Publication Number: 629097805INS - 6 - ©2019, Cornelius Inc.
12. Insert new circuit breaker bracket into the(2) holes where the wire clips used to be. Use (2) #8-32 nuts to secure the
bracket to the unit. (DO NOT OVERTIGHTEN)

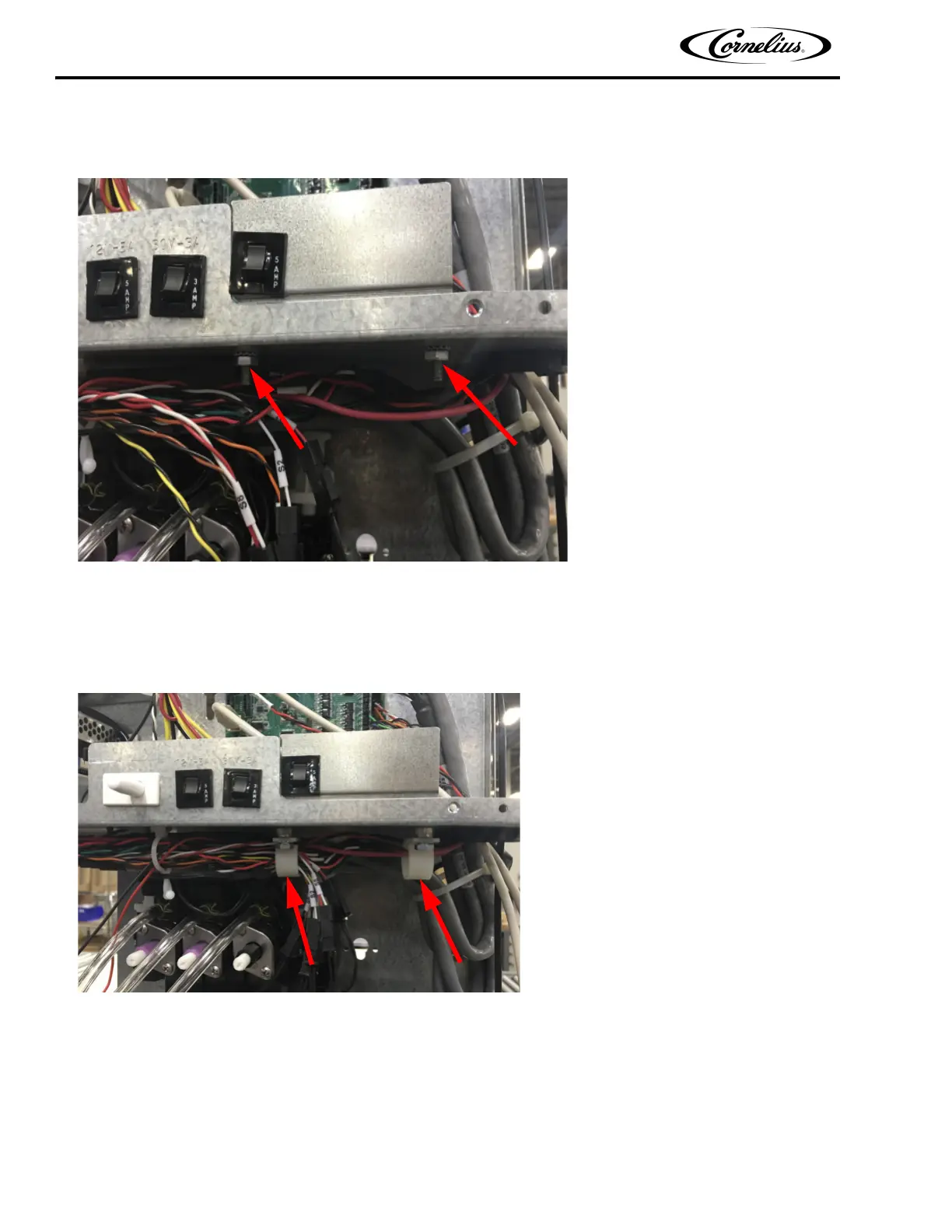

Figure 5
13. Install (2) new cable clip supplied with kit to the mounting studs of the circuits breaker with (1) #8-32 nut on each stud as
shown. (DO NOT OVERTIGHTEN)
Figure 6
