Cornelius SPIRE 4.2 - Lens;Lighting Reassembly and Mounting

Manual Installation Conversion Kit 4.1 To 4.2
©2019, Cornelius Inc. - 9 - Publication Number: 629097805INS

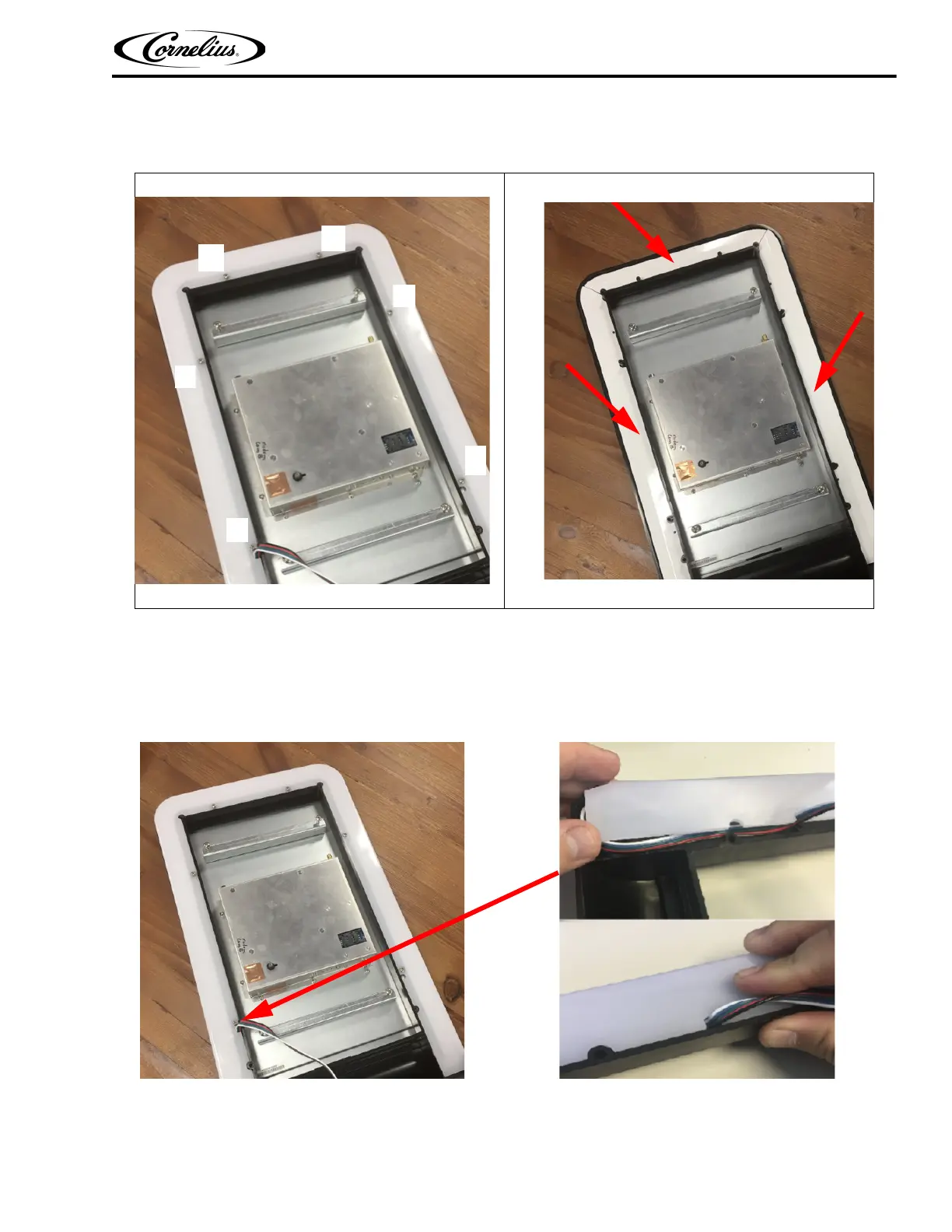

20. Remove and save the (6) ‘C’ screws, lift up the lens / lighting and place aside and then remove the (3) white reflectors.
The old display can now be disposed of per local, state or national recycling laws for electronic equipment.
21. Reassemble the reflectors and lens / lighting into the new display assembly supplied in the kit. Do not overtighten the
screws that mount the lens / lighting, these should be hand tight only. Make sure the lighting harness is routed thru
the lens opening as shown below.
Figure 14
Figure 12
Figure 13
C
C
C
C
C
C
